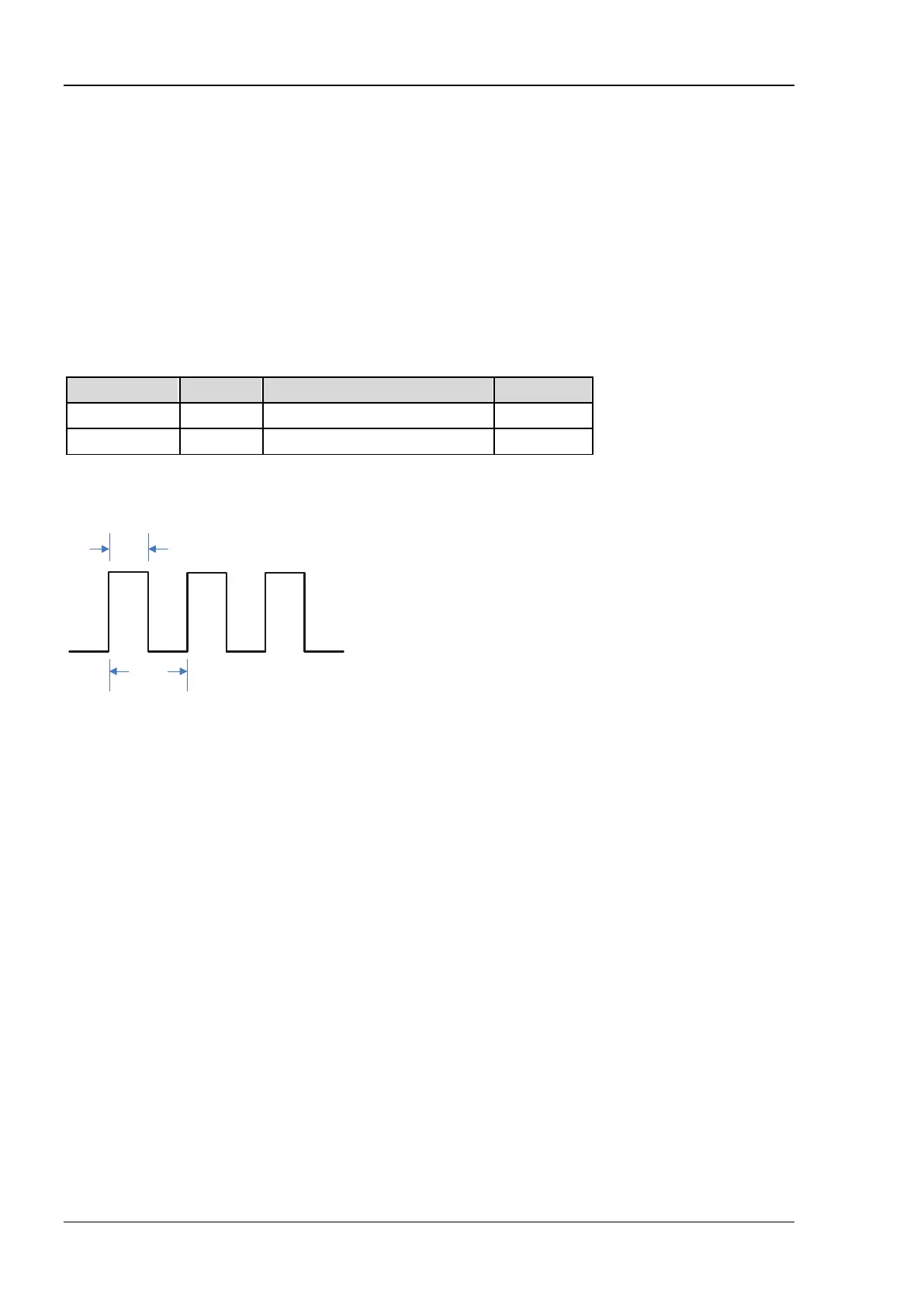

[:SOURce<n>]:PULSe:DCYCle
Syntax
[:SOURce<n>]:PULSe:DCYCle {<percent>|MINimum|MAXimum}
[:SOURce<n>]:PULSe:DCYCle? [MINimum|MAXimum]
Description
Set or query the duty cycle of the pulse.
Parameter
Name Type Range Default
<percent> Real 10% to 90% 20%
<n> Discrete {1|2} 1
Explanation
The duty cycle is defined as the percent that the high level takes up in a whole period.
T
t
Duty cycle
=
t/
T
*100
%
Return Format
The query returns the current duty cycle in scientific notation.
