RIGOL 3 Programming Demos

3-4 MSO2000A/DS2000A Programming Guide

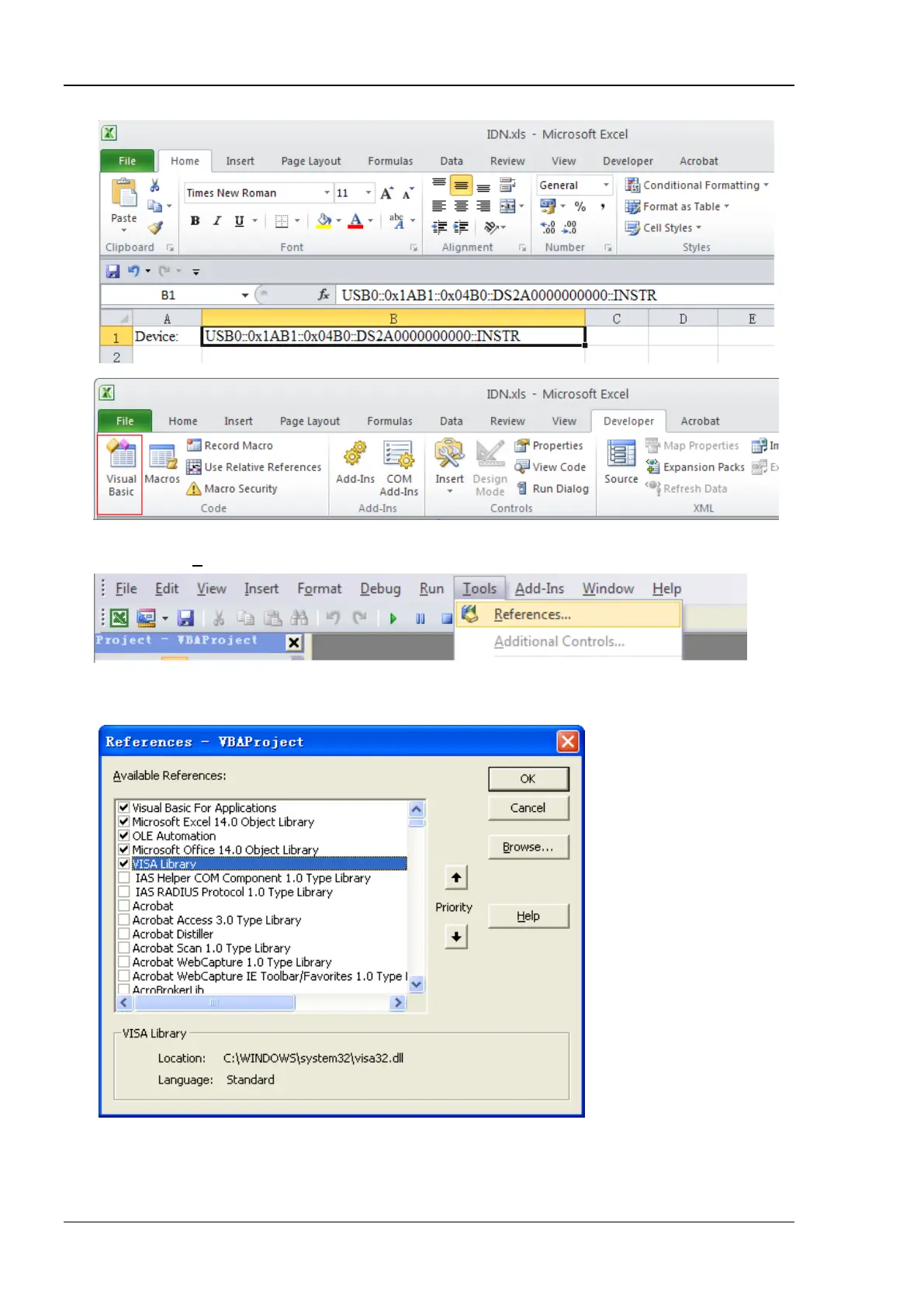

4. Select Tools(T) in the Microsoft Visual Basic menu bar and click References.

Select VISA Library in the pop-up dialog box and click OK to refer to the VISA Library.

Guaranty and Declaration3
Document Overview4
Table of Contents5
SCPI Overview13
Syntax13
Symbol Description14
Parameter Type14
Command Abbreviation15
Command System17
Autoscale18
Clear18
Run18
Stop18
Single19
Tforce19
Tlhalf19
IEEE 488.2 Common Commands20
Cls20
Ese21
Esr22
Idn22
Opc23
Rst23
Sre24
Stb25
Tst26
Acquire Commands27
Acquire:averages27
Acquire:mdepth28
Acquire:srate28
Acquire:type29
Acquire:aalias30
Bus<N> Commands31
Bus<N>:Mode31
Bus<N>:Display32
Bus<N>:Format32
Bus<N>:Event33
Bus<N>:Eexport33
Bus<N>:Data34
Bus<N>:Parallel35
Bus<N>:Rs232 (Option)40
Bus<N>:IIC (Option)48
Bus<N>:Spi (Option)52
Calculate Commands58
Calculate:mode58
Calculate:add59
Calculate:sub61
Calculate:multiply63
Calculate:division65
Calculate:fft67
Calculate:logic73
Calculate:advanced77
Calibrate Commands80
Calibrate:date80
Calibrate:start80
Calibrate:time81
Calibrate:quit81
Channel<N> Commands82
Channel<N>:Bwlimit82
Channel<N>:Coupling83
Channel<N>:Display83
Channel<N>:Invert84
Channel<N>:Impedance84
Channel<N>:Offset85
Channel<N>:Scale86
Channel<N>:Probe87
Channel<N>:Units87
Channel<N>:Vernier88
Channel<N>:Tcal89
Cursor Commands90
Cursor:mode90
Cursor:manual91
Cursor:track99
Display Commands104
Display:clear104
Display:type105
Display:grading:time106
Display:wbrightness106
Display:grid107
Display:gbrightness107
Display:mpersistence108
Display:data108
Function Commands110
Function:wrmode110
Function:wrecord111
Function:wreplay114
Function:wanalyze119
LA Commands (MSO2000A/MSO2000A-S)127
La:state127
La:active128
La:display129
La:autosort129
La:delete130
La:size130
La:digital<N>:Display131
La:digital<N>:Position131
La:digital<N>:Label132
La:pod<N>:Display132
La:pod<N>:Threshold133
La:group<N>:Append133
La:bus<N>:Current134
La:bus<N>:Display134
La:bus<N>:Channel135
La:bus<N>:Format135
LAN Commands136
Lan:dhcp136
Lan:autoip137
Lan:gateway138
Lan:dns138
Lan:mac139
Lan:manual139
Lan:initiate140
Lan:ipaddress140
Lan:smask141
Lan:status141
Lan:visa141
Lan:apply142
MASK Commands143
Mask:enable143
Mask:source144
Mask:operate144
Mask:mdisplay145
Mask:sooutput145
Mask:output146
Mask:X146
Mask:y146
Mask:create147
Mask:passed147
Mask:failed147
Mask:total148
Mask:reset148
Mask:data149
Measure Commands150
Measure:source151
Measure:counter:source152
Measure:counter:value152
Measure:clear153
Measure:recover153
Measure:adisplay154
Measure:amsource154
Measure:statistic:display155
Measure:statistic:mode155
Measure:statistic:reset156
Measure:setup:type156
Measure:setup:max157
Measure:setup:MID157
Measure:setup:min157
Measure:setup:psa158
Measure:setup:psb158
Measure:setup:dsa159
Measure:setup:dsb159
Measure:area160
Measure:cregion:cax160
Measure:cregion:cbx160
Measure:history:display161
Measure:history:dmode161
Measure:fdelay162
Measure:f2Rdelay164
Measure:fphase166
Measure:f2Rphase168
Measure:frequency170
Measure:ftime172
Measure:nduty174
Measure:nwidth176
Measure:overshoot178
Measure:pduty180
Measure:period182
Measure:preshoot184
Measure:pwidth186
Measure:rtime188
Measure:rdelay190
Measure:r2Fdelay192
Measure:rphase194
Measure:r2Fphase196
Measure:vamp198
Measure:vavg200
Measure:vbase202
Measure:vmax204
Measure:vmin206
Measure:vpp208
Measure:vrms210
Measure:pvrms212
Measure:vtop214
Measure:marea216
Measure:mparea218
Output<N> Commands (MSO2000A-S/DS2000A-S)220
Output[<N>][:State]220
Output[<N>]:Impedance220
Recall Commands221
Recall:setup221
Recall:trace222
Recall:waveform222
Reference Commands223
Reference<N>:Current223
Reference<N>:Enable224
Reference:color224
Reference:current225
Reference:display225
Reference:reset225
Reference:save226
Reference:source226
Reference:vscale227
Reference:voffset228
SAVE Commands229
Save:csv[:Start]230
Save:csv:factors231
Save:csv:length231
Save:format232
Save:image[:Start]232
Save:image:type233
Save:image:factors233
Save:setup[:Start]234
Save:trace[:Start]235
Save:waveform[:Start]235
Save:reference[:Start]236
Save:mtest[:Start]237
Save:arb[:Start]238
Source<N> Commands (MSO2000A-S/DS2000A-S)239
[:Source<N>]:Frequency[:Fixed]240
[:Source<N>]:Phase[:Adjust]240
[:Source<N>]:Phase:initiate241
[:Source<N>]:Function[:Shape]242
[:Source<N>]:Function:ramp:symmetry243
[:Source<N>]:Voltage[:Level][:Immediate][:Amplitude]244
[:Source<N>]:Voltage[:Level][:Immediate]:Offset245
[:Source<N>]:Pulse:dcycle246
[:Source<N>]:Mod[:State]247
[:Source<N>]:Mod:type248
[:Source<N>]:Mod:am[:Depth]248
[:Source<N>]:Mod:am:internal:frequency249
[:Source<N>]:Mod:am:internal:function249
[:Source<N>]:Mod:fm[:Deviation]250
[:Source<N>]:Mod:fm:internal:frequency250
[:Source<N>]:Mod:fm:internal:function251
[:Source<N>]:Apply:noise252
[:Source<N>]:Apply:pulse252
[:Source<N>]:Apply:ramp252
[:Source<N>]:Apply:sinusoid252
[:Source<N>]:Apply:square252
[:Source<N>]:Apply:user252
[:Source<N>]:Apply254
System Commands255
System:aoutput256
System:autoscale256
System:beeper257
System:date257
System:error[:Next]258
System:expand258
System:gamount259
System:gpib259
System:key:press260
System:key:increase262
System:key:decrease262
System:language263
System:option:install263
System:option:uninstall263
System:option:valid264
System:pon264
System:pstatus265
System:ramount265
System:reset265
System:ssaver:time266
System:setup266
System:time267
System:udevice267
System:version268
Timebase Commands269
Timebase:delay:enable269
Timebase:delay:offset270
Timebase:delay:scale270
Timebase[:Main]:Offset271
Timebase[:Main]:Scale272
Timebase:href:mode273
Timebase:href:position273
Timebase:mode274
Timebase:vernier274
Trace<N> Commands (MSO2000A-S/DS2000A-S)275
[:Trace<N>]:Data275
[:Trace<N>]:Data:dac16276
[:Trace<N>]:Data:dac277
[:Trace<N>]:Data:load278
[:Trace<N>]:Data:points278
[:Trace<N>]:Data:points:interpolate279
[:Trace<N>]:Data:value280
Trigger Commands281
Trigger:coupling282
Trigger:holdoff282
Trigger:mode283
Trigger:nreject283
Trigger:status284
Trigger:sweep285
Trigger:delay (Option)286
Trigger:duration (Option)289
Trigger:edge293
Trigger:IIC295
Trigger:nedge (Option)300
Trigger:pattern303
Trigger:pulse306
Trigger:rs232310
Trigger:runt315
Trigger:shold319
Trigger:slope323
Trigger:spi328
Trigger:timeout (Option)332
Trigger:usb (Option)334
Trigger:video (HDTV Option)337
Trigger:windows (Option)342
Waveform Commands345
Waveform:source346
Waveform:mode347
Waveform:format348
Waveform:points348
Waveform:data349
Waveform:xincrement351
Waveform:xorigin352
Waveform:xreference352
Waveform:yincrement352
Waveform:yorigin353
Waveform:yreference353
Waveform:start354
Waveform:stop355
Waveform:begin355
Waveform:end355
Waveform:reset356
Waveform:preamble356
Waveform:status357
Programming Demos359
Programming Preparations360
Excel Programming Demo361
Labview Programming Demo365
Matlab Programming Demo369
Visual Basic 6.0 Programming Demo371
Visual C++ 6.0 Programming Demo373
