Chapter 1
Overview
Chapter Objectives This chapter gives an overview of the PanelView 800 terminals.
• About the terminals
• How to connect browser
(a)
• PanelView Explorer
(b)
•How to display help
• Peripheral connection
• Catalog number configuration
About the Terminals PanelView 800 terminals are operator interface devices for monitoring and
controlling devices that are attached to a controller. HMI applications are
created using Connected Components Workbench software, then downloaded
to the terminal.

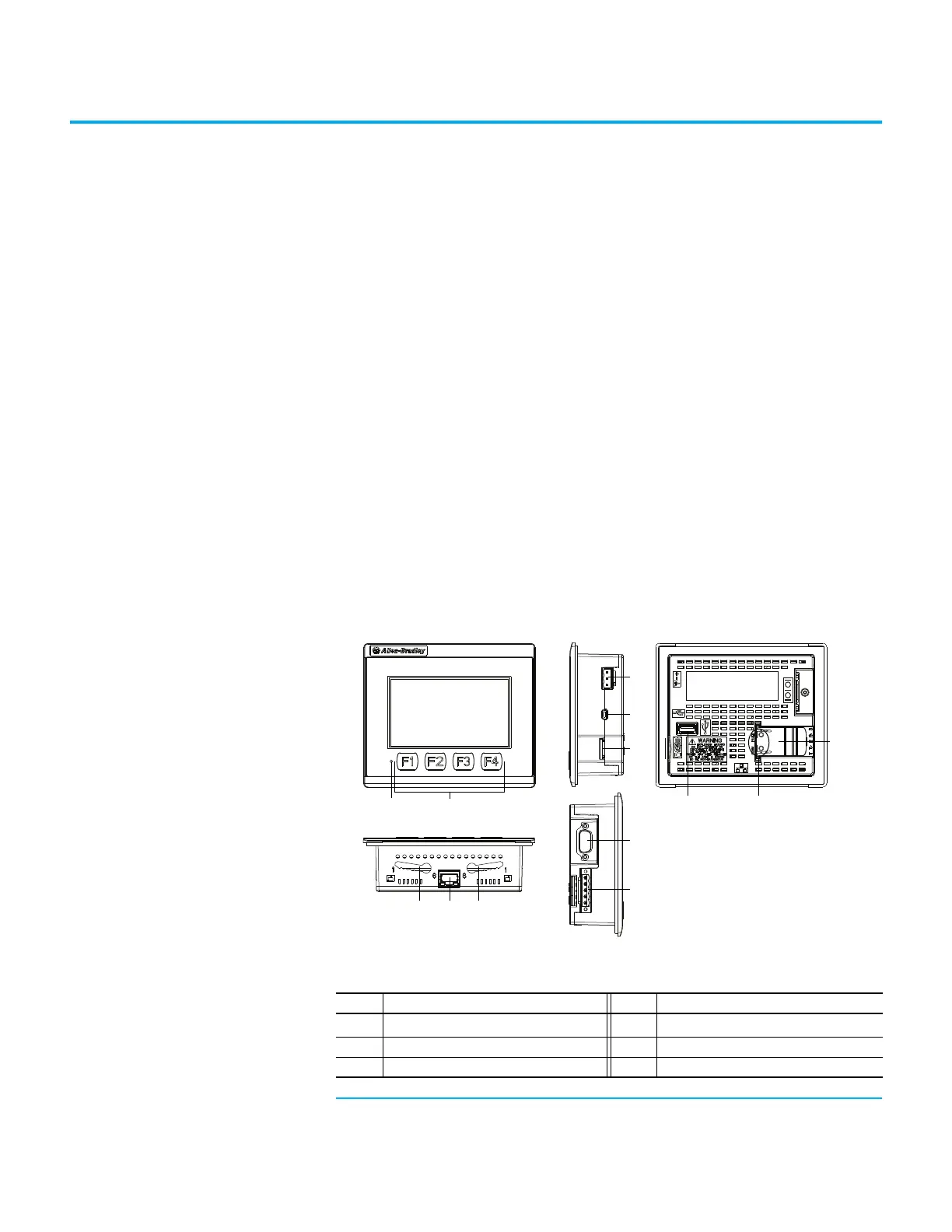

PanelView 800 Terminal – 2711R-T4T
(a) The web browser feature is not supported on PanelView 800 terminals from firmware
revision 3.011 onwards.
(b) The PanelView Explorer feature is not supported on PanelView 800 terminals from firmware
revision 3.011 onwards.
PanelView terminal 2711R-T4T Description
Item Description Item Description
1
Power status LED
(1)
7 10/100 Mb Ethernet port
2 Touch display, function keys 8 RS-232 port
3 24V DC power input 9 RS-422 and RS-485 port
2
3
4
6
1
76
5
8
9
10
11
12
