140 Rockwell Automation Publication 2711R-UM001I-EN-E - February 2023
Appendix D Using PanelView 800 Terminals with CompactLogix 5370 and CompactLogix 5380 Controllers

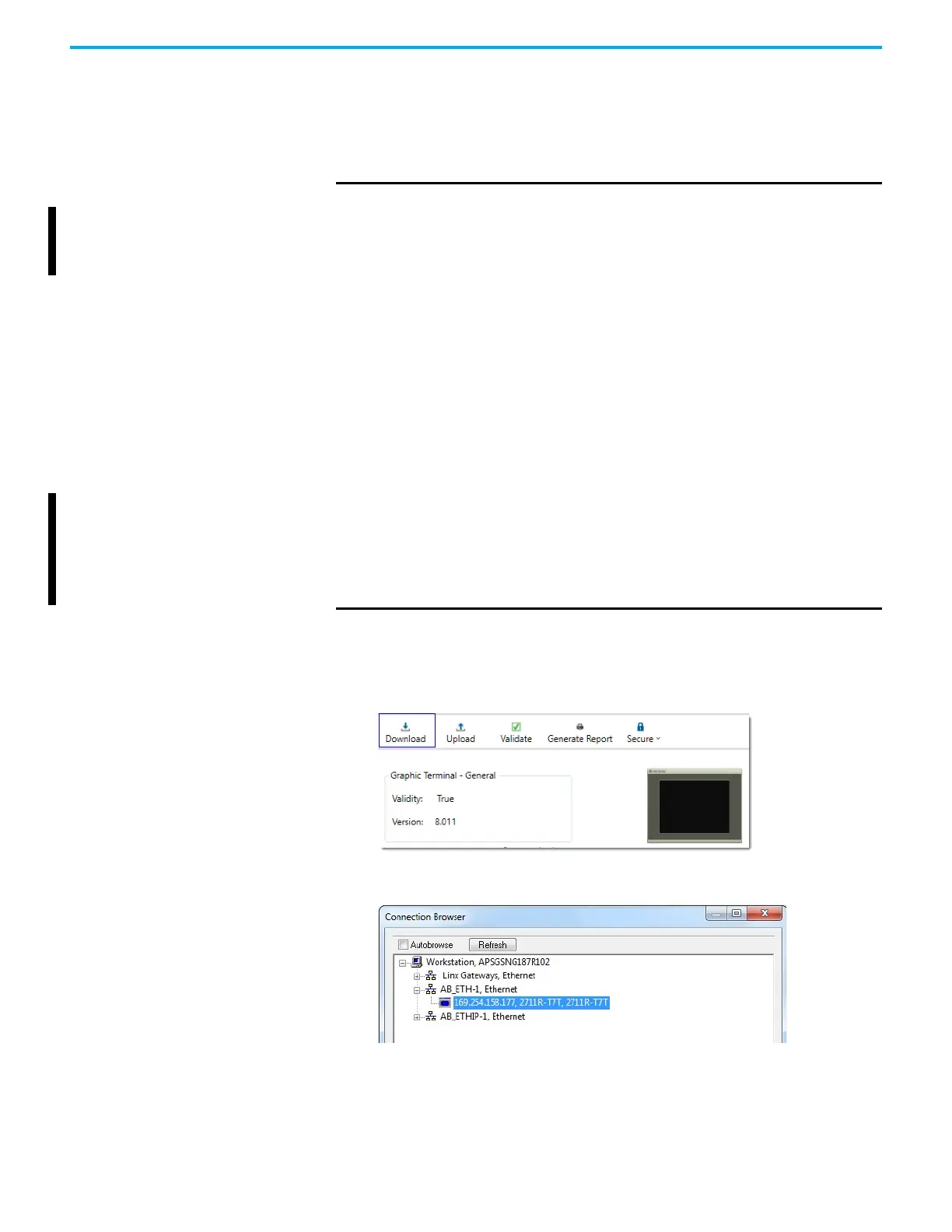

To validate the application, do the following:
1. Click the Validate icon on the Settings tab of the terminal.
2. Make sure that there are no validation errors in the application.
If the validation passes, the Validity is set to True.
If the validation fails, you cannot run the application on the terminal
Download the Application To download the application to the terminal, do the following:
1. Click the Download icon in the Settings tab of the terminal.
The Connection Browser dialog box appears.
2. Select the terminal that you want to download the application to, then
click OK.
IMPORTANT PanelView 800 applications that are configured to communicate with a
CompactLogix 5370 or CompactLogix 5380 controller must meet the
following restrictions. If any the listed restrictions are not met, the
validation fails, and you cannot download and run the application on
the terminal.
For CompactLogix 5370 controllers:
The following limits apply from firmware revision 5.011 onwards
• Maximum number of CompactLogix 5370 controllers: 1
• Maximum number of Screens: 50
• Maximum number of External Tags: 400
• Maximum number of Alarms: 400
The following limits apply from firmware revision 3.011 to 4.0xx
• Maximum number of CompactLogix 5370 controllers: 1
• Maximum number of Screens: 25
• Maximum number of External Tags: 200
• Maximum number of Alarms: 150
For CompactLogix 5380 controllers:
The following limits apply from firmware revision 6.012 onwards
• Maximum number of CompactLogix 5380 controllers: 1
• Maximum number of Screens: 50
• Maximum number of External Tags: 400
• Maximum number of Alarms: 400
