Rockwell Automation Publication 2711R-UM001I-EN-E - February 2023 53
Chapter 3 DesignStation in Connected Components Workbench Software

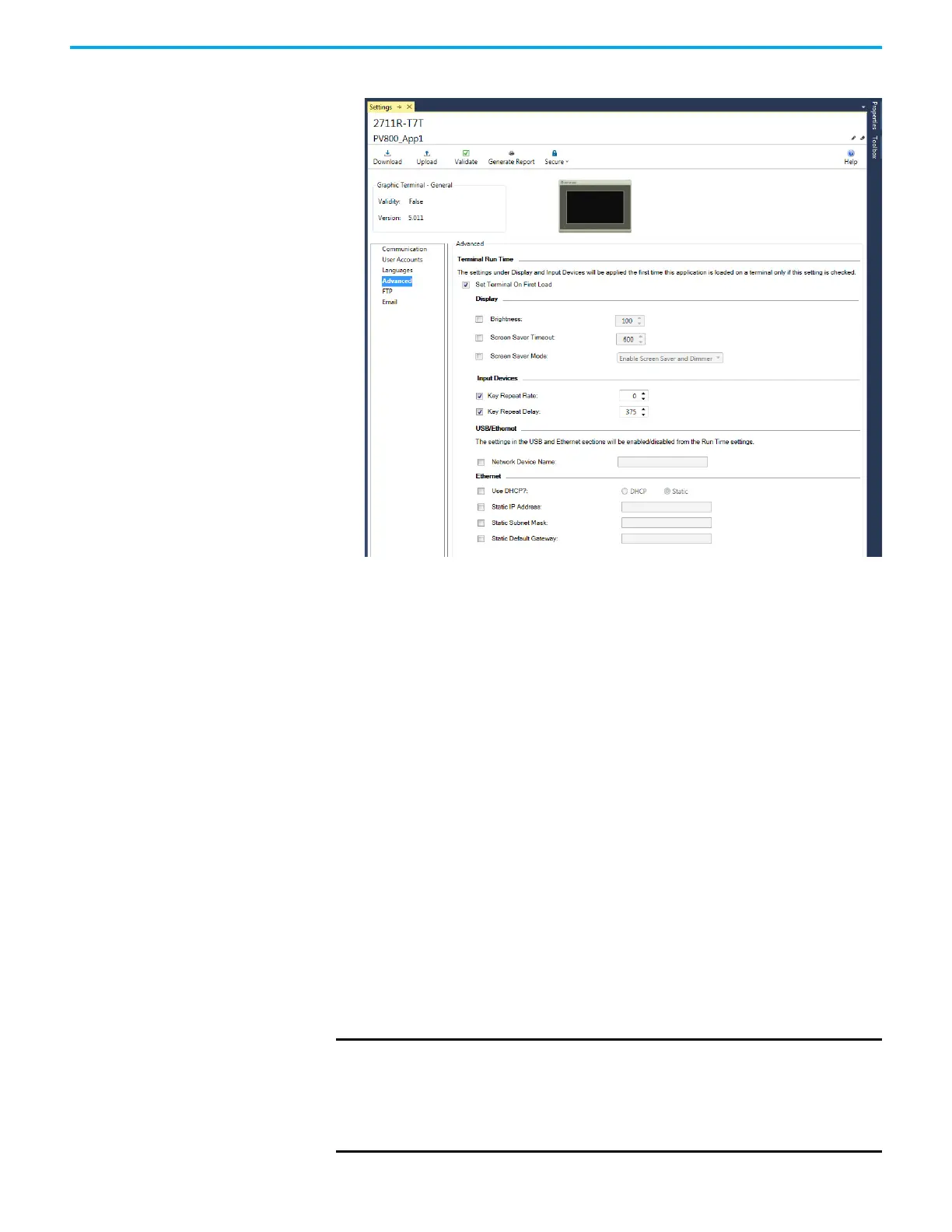

3. Select the Set Terminal On First Load checkbox.
4. Under Input Devices, select the checkbox for the setting you want to
configure.
5. Use the up or down arrows to adjust the value, or input the value directly
into the text box.
6. Save the project.
Creating Applications Applications for PanelView 800 terminals can be created using the Connected
Components Workbench software version 8 or later. You can create
applications without being connected to a terminal but you can only run the
application on a physical terminal.
Downloading Applications Applications that are created with Connected Components Workbench
software can be downloaded to the terminal through the following methods:
• Only for firmware revision 2.020 or earlier
- PanelView Explorer using Ethernet
• For firmware revision 3.011 or later
-CIP™ Ethernet
- CIP Bridge connection through CompactLogix 5370 controller
- CIP Bridge connection through Micro800™ controller
IMPORTANT If the terminal is password protected using Connected Components
Workbench software version 10 or later, you cannot download an
application to the terminal using Connected Components Workbench
software version 9 or earlier. An error message stating the system is
busy will be shown in the output window under the Graphic Terminal
message list.
