Rockwell Automation Publication 2711R-UM001I-EN-E - February 2023 73
Chapter 3 DesignStation in Connected Components Workbench Software

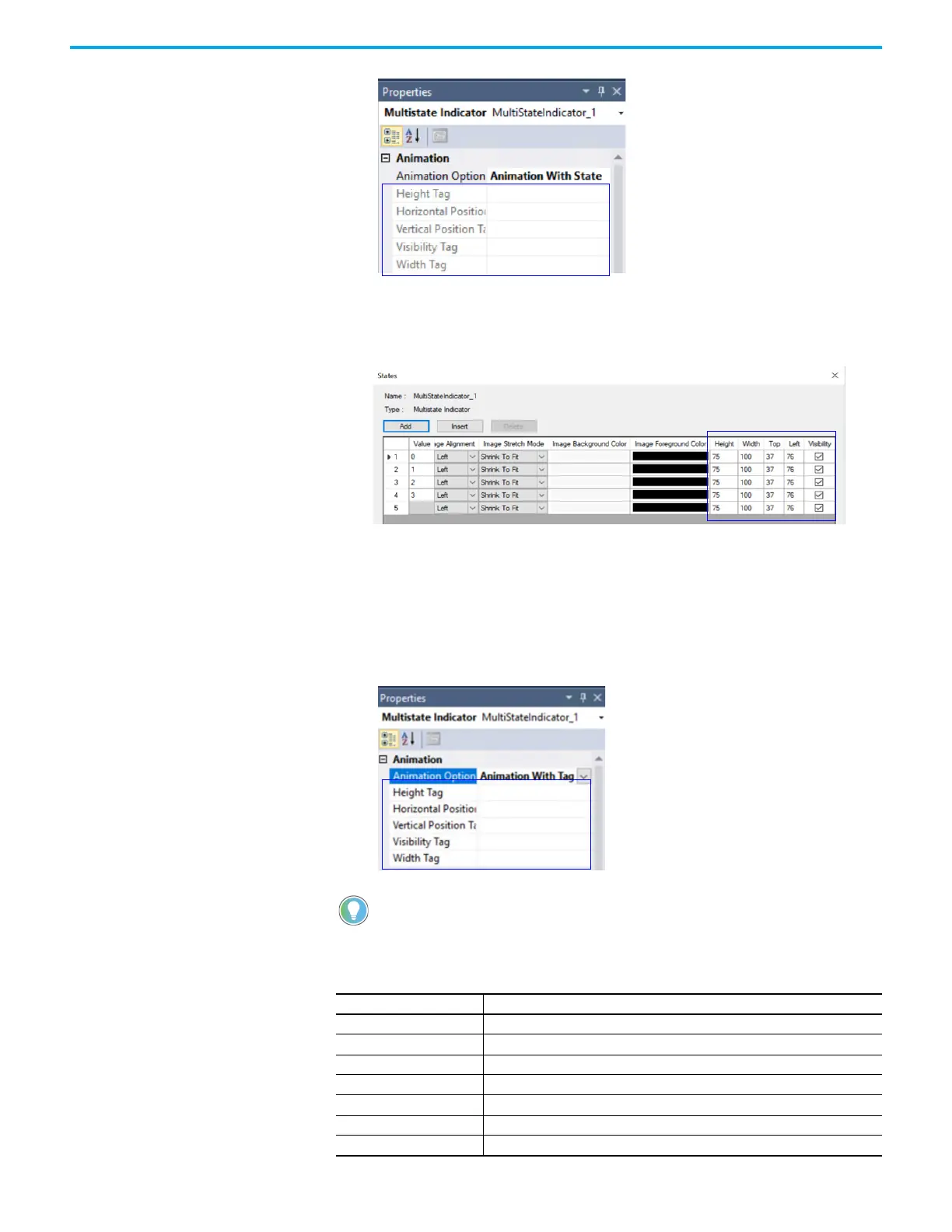

Double-click the Multistate Indicator to display the States Dialog box.
From the States screen, scroll to the right to configure the last five properties,
if necessary.
If Animation With Tag is selected, the following tags are configurable:
• Height Tag
• Horizontal Position Tag
• Vertical Position Tag
• Visibility Tag
•Width Tag
To use Animation With Tag, Connected Components Workbench software version
13 or later adds parameters to memory tags to enhance object animation. See help
file for more information on memory tags.
Memory Tags Parameters
Parameter Value
Tag Name Name of Memory tag
Data Type 16-bit integer
Retained Value Retains most recent value when application is shut down
Initial Value Defines the coordinates of the starting position
Description Enters a description for the Memory tag
Data Entry - Min -32768
Data Entry - Max -32767
