2-4 Frame 2 Installation
PowerFlex® 700L Liquid-Cooled Drive User Manual
Publication 20L-UM001D-EN-P
Attaching the Lifting Feet to the Drive
1. Remove the four (4) shipping bolts that hold the drive to the skid.
2. Attach the two lifting feet provided with the drive to the bottom drive
mounting holes as shown in Figure 2.3
.

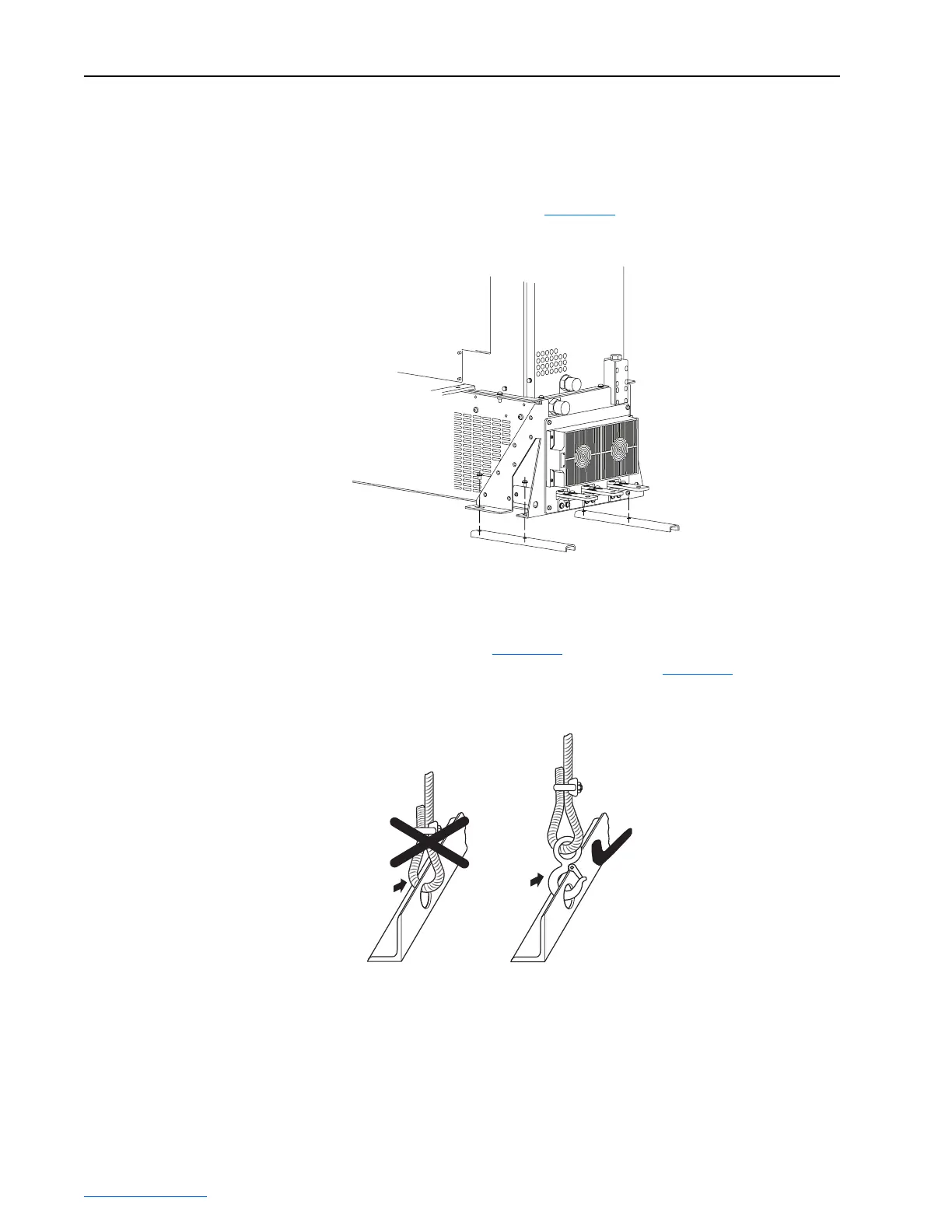

Figure 2.3 Attaching Lifting Feet to the Drive
Attaching the Lifting Hardware to the Drive
Apply lifting hooks (see Figure 2.4). Take precautions to ensure that there
are lifting hooks secured in all four (4) locations (Figure 2.5
) on the drive.
Figure 2.4 Attaching Lifting Hardware to the Frame 2 Drive
