Lifting the Power Module

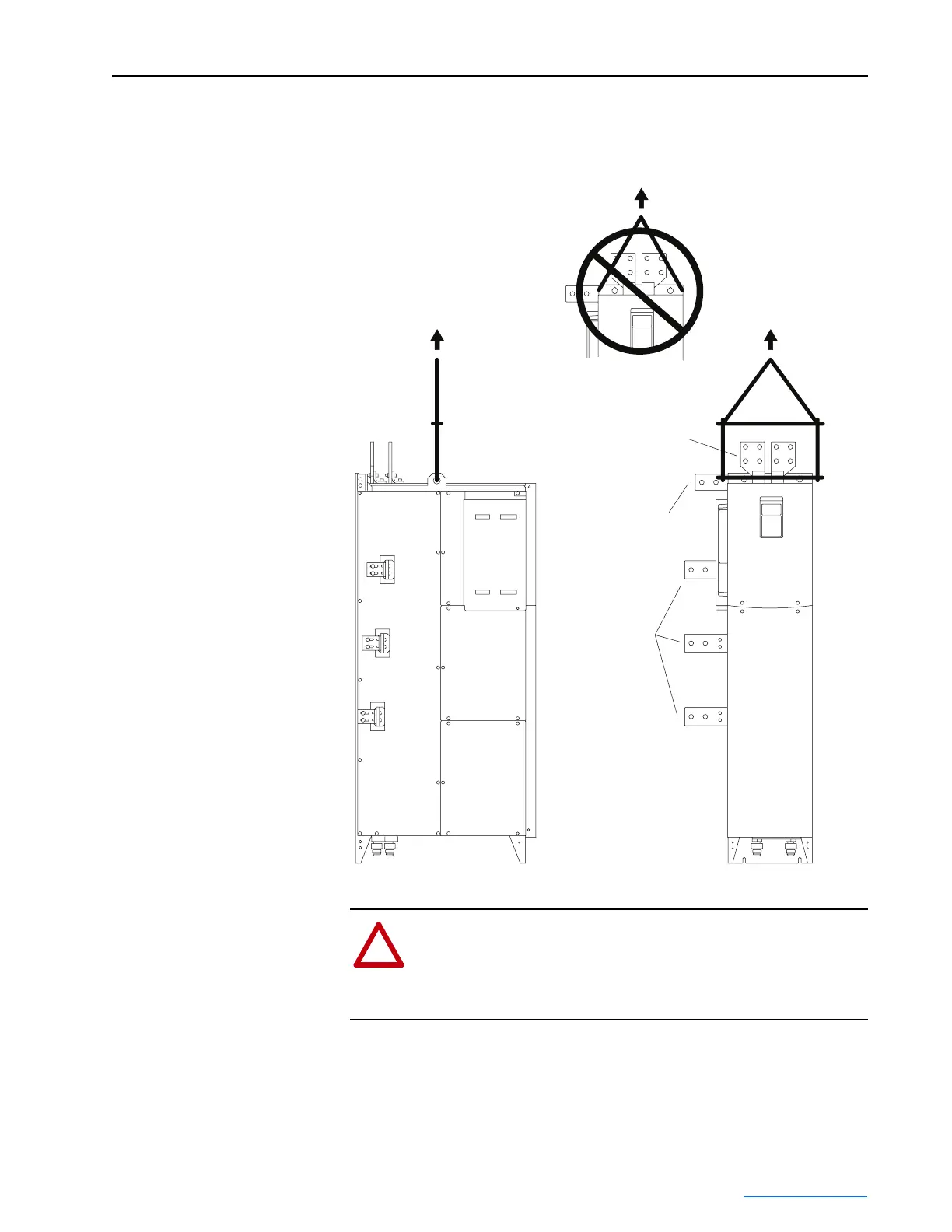

Figure 3.11 Frame 3 Power Module Lifting Instructions
Input and
Output
Bus Bar
Ground
Bus Bar
Frame 3B Inverter
Power Module shown
DC Bus Bar
!
ATTENTION: Risk of equipment damage exists. Do not use
input, output, ground, and DC bus bars for lifting or handling.
Mechanically support conductors to minimize mechanical load
on the input and output bus bars.
