2-22 Frame 2 Installation
PowerFlex® 700L Liquid-Cooled Drive User Manual
Publication 20L-UM001D-EN-P
DPI Connections for Frame
2 Drives
Drive Connection Points
The PowerFlex 700L Frame 2 drive provides a number of cable connection
points as shown in Figure 2.19
. If an additional external HIM is required for
the application, the HIM can be connected to the DPI port on the bottom of
the drive. Only one additional external HIM device may be connected. The
use of two external HIM devices is not supported. If multiple external HIM
devices are required, then install a user-supplied splitter cable or splitter box.

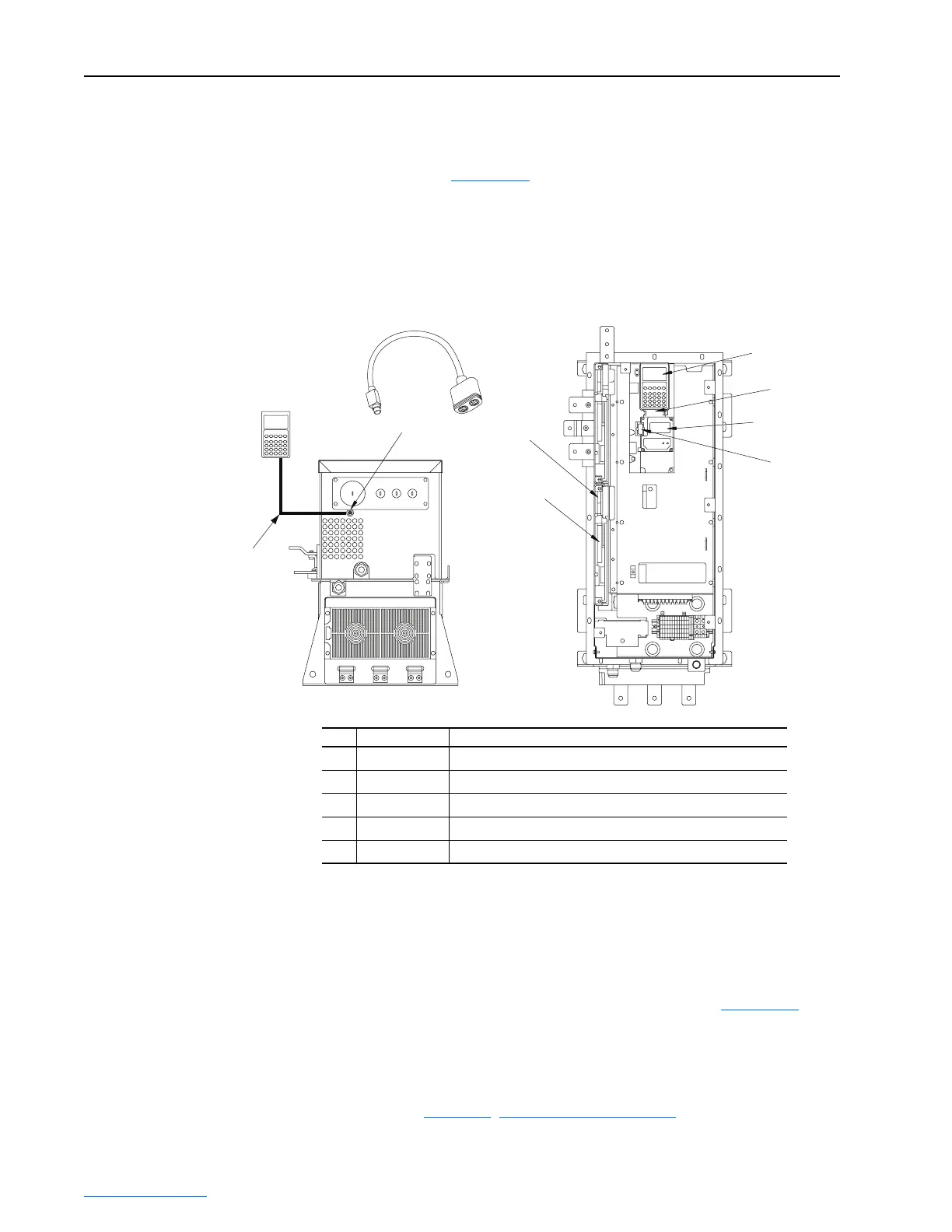

Figure 2.19 Frame 2 Drive DPI Connection Points
External Door-Mounted HIM Connection (optional)
For a Frame 2 drive installed in a user-supplied enclosure, an optional
external door-mounted HIM may be connected as an alternative to the
external HIM option. The cable supplied with the door-mount HIM option
kit connects to the DPI port on the bottom of the drive (see Figure 2.19
). For
additional installation information, refer to the instructions provided with
the door-mount HIM option kit.
Coolant Loop Connections
Please refer to Chapter 4, Cooling Loop Installation for details.
Bottom View
of Drive
External
HIM Option
External
DPI Cable
T/L3S/L2R/L1
Drive
HIM Option
➊
Communications
Adapter Option
➍
➎
Active
Converter
PCB
➋
➌
Item Connector Description
➊
DPI Port 1 HIM connection when installed in the drive.
➋
DPI Port 2 Cable connection for handheld and remote options.
➌
DPI Port 3 or 2 Splitter cable connection to DPI Port 2 provides additional port.
➍
DPI Port 5 Cable connection for communications adapter.
➎
DPI Port 6 Internal DPI connection to Active Converter pcb.
