Frame 3A and 3B Installation 3-33
PowerFlex® 700L Liquid-Cooled Drive User Manual
Publication 20L-UM001D-EN-P

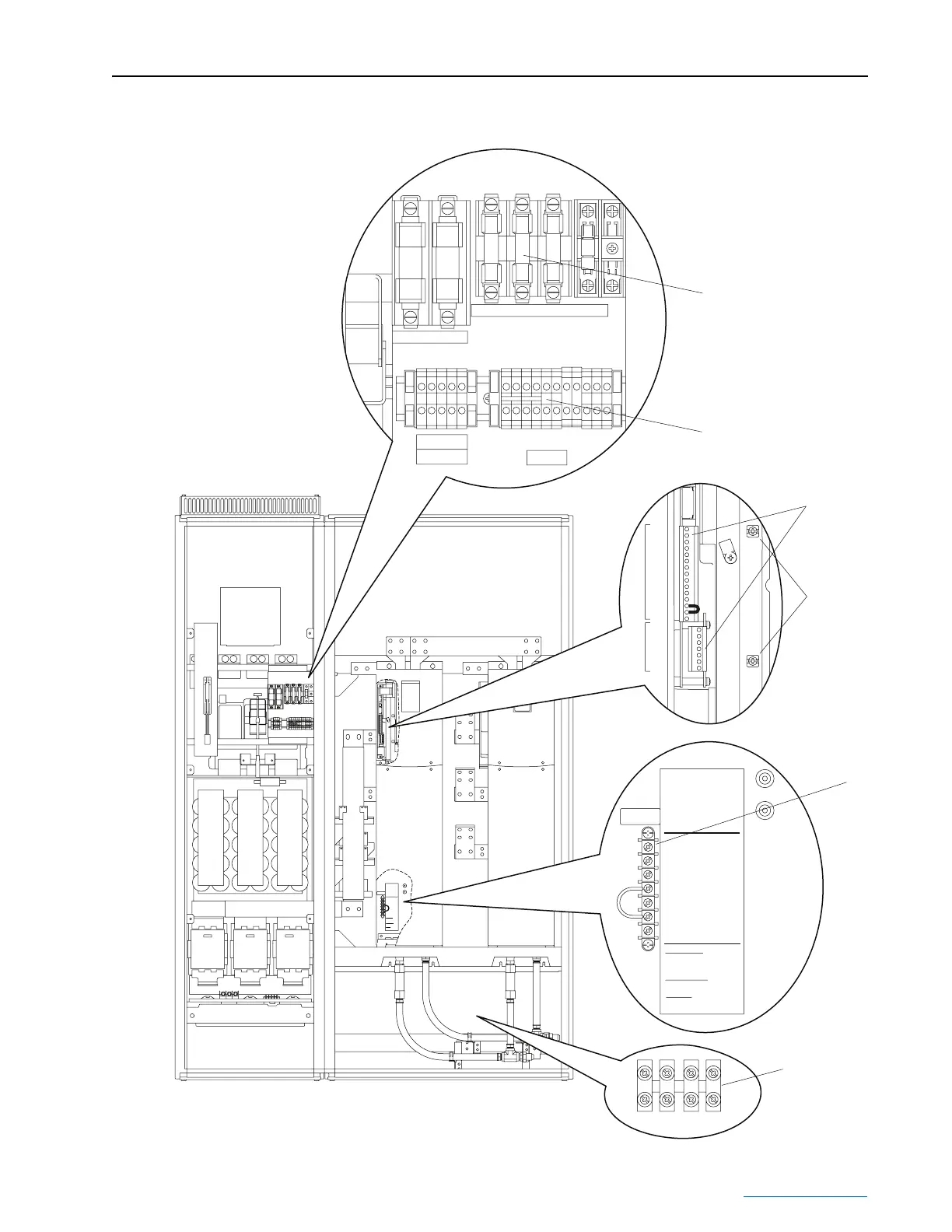

Figure 3.30 Frame 3B Complete Drive Control Wiring Terminal Locations
1 2 3 4 5
1 2 3 4 5 6
GND GND
9
10 11
1 2 3 4 5 6
GND GND
9
10 11
4 1 2 3 5
M6 - Power Module Bay Fan
(Door-Mounted)
PE L1 N
➏
7 IND OVERTEMP
TB5
6 GATE ENABLE
5 PRECHARGE F/B
4 24 VDC
2 PRECHARGE COIL
3 120 VAC NEUTRAL
1 120 VAC
DC- TESTPOINT
DC+ TESTPOINT
➎
P1
P2
1
15
7
1
SHLDSHLD
➌
➍
TB1
H1 H2 H3 H4 H5
TB2
123456GG91011
➊
➋
FU8FU7 FU9 FU3
FU1 FU2
24 VDC
TB5
DC POSITIVE
DC NEGATIVE
1 120 VAC
2 PRECHARGE COIL
6 INDUCTOR OVERTEMP
WIRE RANGE:
24-10 AWG
(0.2-4 MM)
4 PR HARGE FEEDBACK
ATE ENABLE
STRIP LENGTH:
0.31 IN (8 MM)
TORQUE:
8 IN-LB
(0.9 N-M)
WIRE RANGE
24-10 AWG
(0.2-4 MM
2
)
STRIP LENGTH
0.31 IN (8 MM)
TORQUE
8 IN-LB
(0.9 N-M)
