s60
3.5 (88) 3.6 (92)
7.1 (180)
5.2 (133)
7.3 (185)
A
B
C
Temperature restrictions due to O-ring selection.
Tank seal with
different O-ring
materials
Min. Temperature
°F (°C) in air
Max. Temperature
°F (°C) in air
Viton
®
-4 (-20) 302 (150)
Ethylene Propylene
(EPDM)
-4 (-20) 275 (135)
Kalrez
®
6375 23 (-5) 302 (150)
Buna-N -4 (-20) 257 (125)
Pressure
psig (bar)
Flange
temperature
°F (°C)
-15 (-1)
120 (8.2)
-4 (-20)
90 (6.2)
10 (0.69)
104 (40) 212 (100) 302 (150)
OPERATING RANGE
The final rating may be
limited by flange and O-ring
selection.

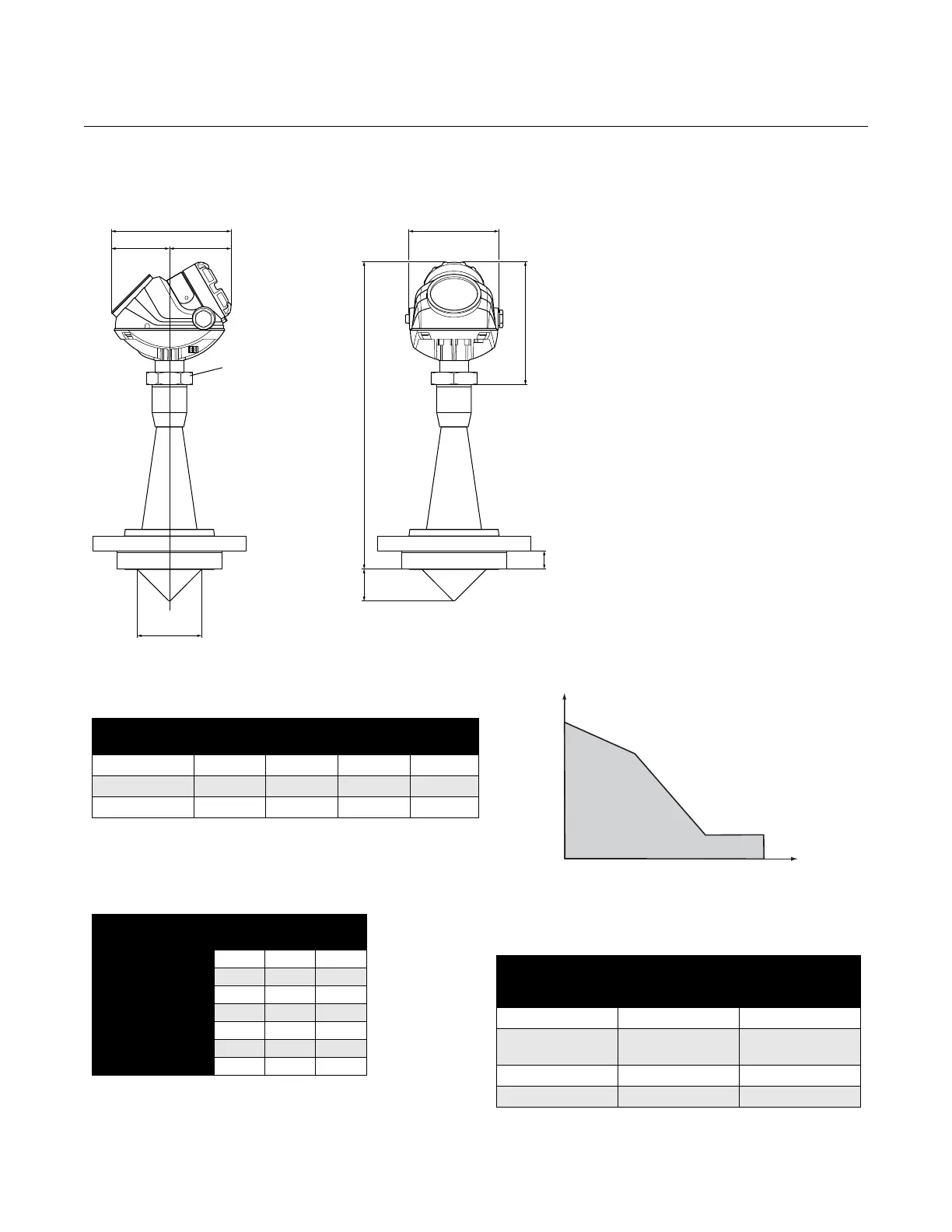

Process Seal Antenna
Process Seal
size (inches)
A B C
Antenna
Code
2 1.8 (46) 14.2 (360) 0.9 (22) 2P
3 2.8 (72) 17.3 (440) 1.4 (35) 3P
4 3.8 (97) 18.9 (480) 1.9 (48) 4P
Process temperature and pressure diagram.
Process Connection Availability
Available as standard
– Not available
Process Connection
Antenna Code
2P 3P 4P
2 in. / DN 50 / 50A - -
3 in. / DN 80 / 80A - -
4 in. / DN 100 / 100A - -
6 in. / DN 150 / 150A - - -
8 in. / DN 200 / 200A - - -
Threaded Connection - - -
Bracket Mounting - - -
Drawing: 9240030-976 (www.rosemount.com)
1.1 (27)
