Specifying Display Panel
Variables
It is possible to specify the variables to be presented on the Display Panel
(LCD).
Using a Field Communicator
For a 275/375 Handheld Communicator, the LCD settings are available with
HART command [2, 2, 3].
Using Rosemount Radar Master (RRM)
The LCD tab in the General window allows variables to be specified for view
on the Display Panel screen:
1. Choose the General option from the Setup menu, or
click the General icon in the Device Configuration window.
2. Select the LCD tab.

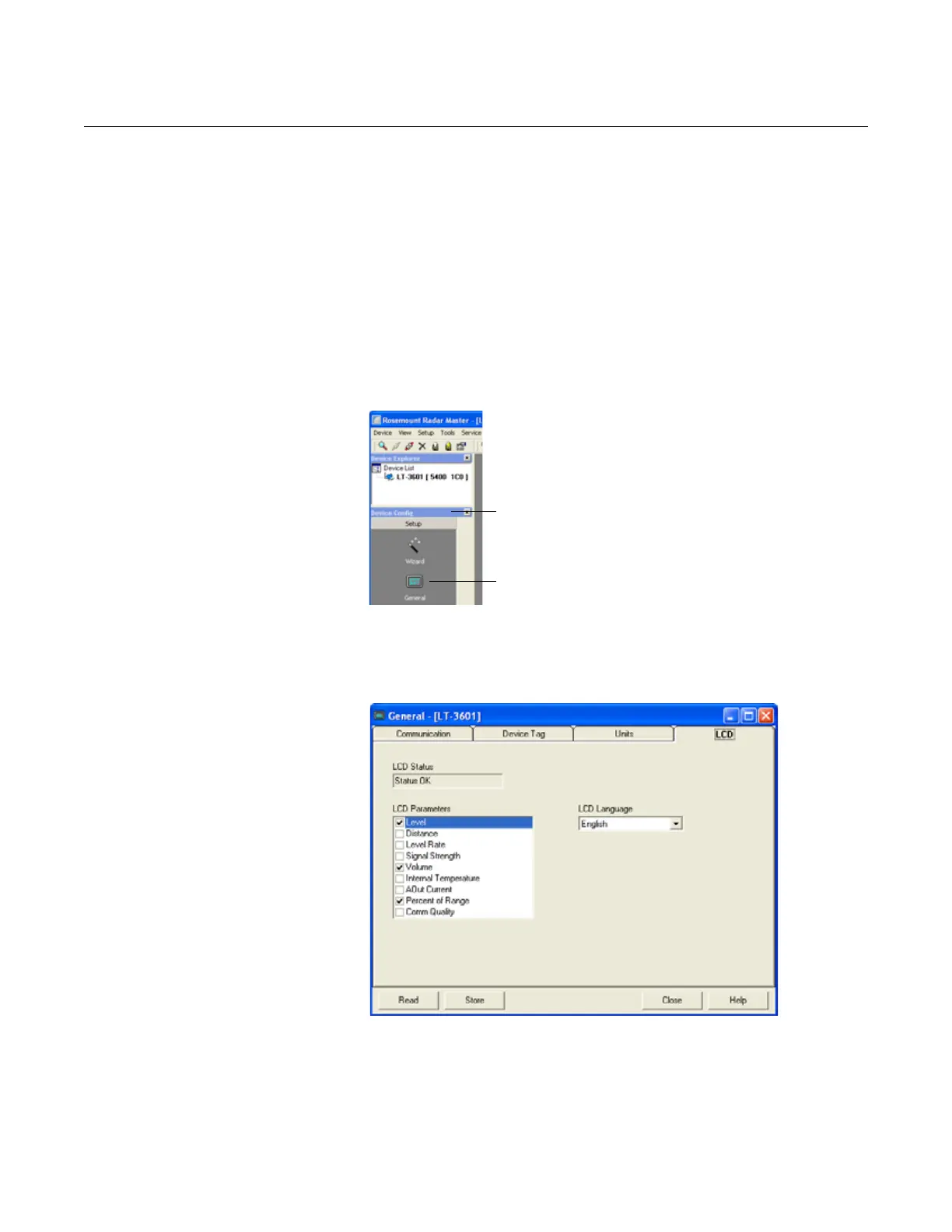

Figure 6-2. RRM lets you specify
variables for the 5400 Display
Panel.
3. Select the variables to appear on the Display Panel. The LCD will
alternate between the selected items.
4. Click the Store button to save the LCD settings in the transmitter
database.
Device Config
General
