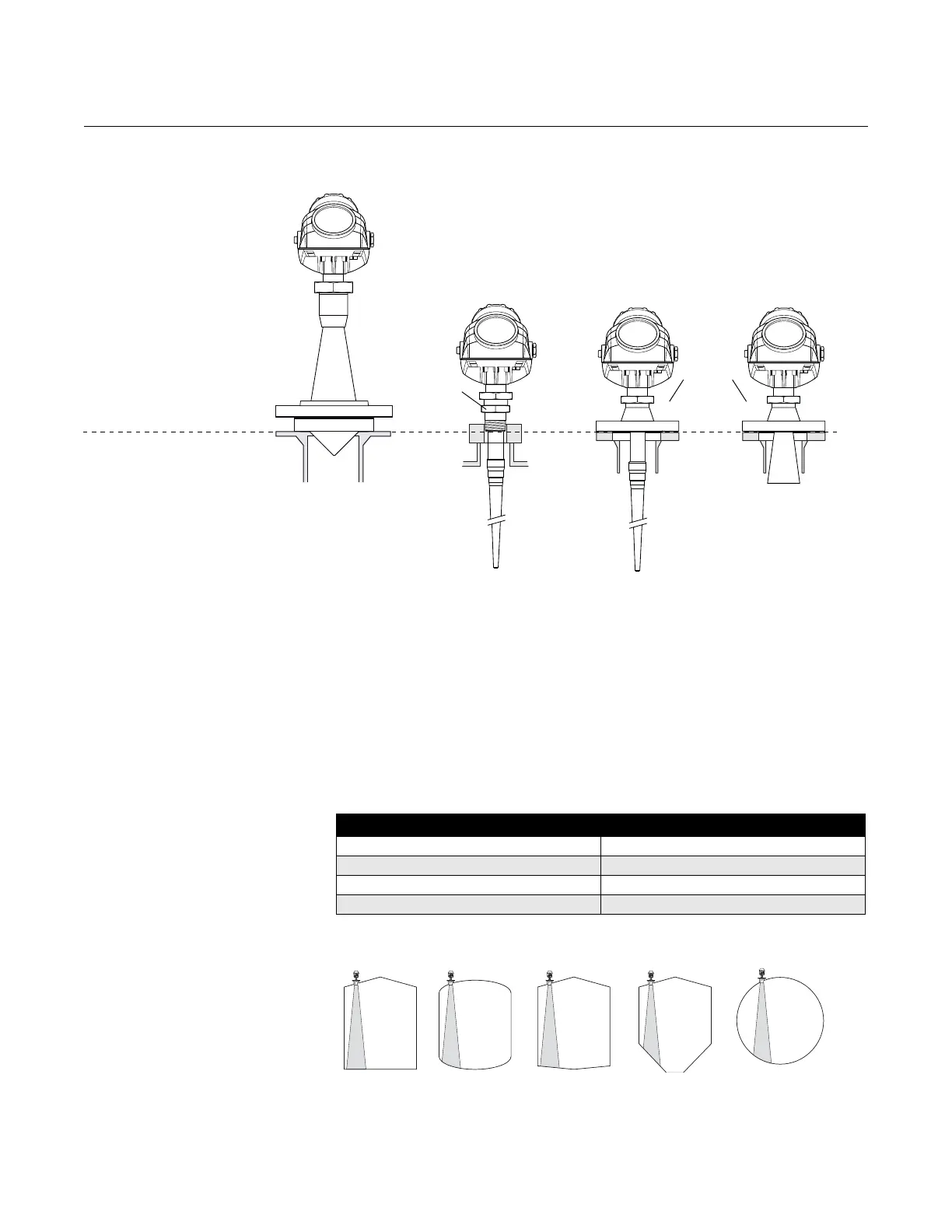

Figure 5-2. Upper Reference
Point.
Tank Type and Tank Bottom Type
The 5400 transmitter is optimized according to the Tank Type and Tank
Bottom Type configuration by automatically setting some parameters to
predefined default values.
Select Tank Bottom Type Flat Inclined if the bottom inclination is between 10
and 30 degrees. If the inclination is less than 10 degrees, but there are
disturbing objects on the tank floor (like heating coils) within the radar beam,
this selection should also be used. If the inclination is greater than 30
degrees, use the Cone Tank Bottom Type.
Table 5-1. Tank Type and Tank
Bottom Type
Figure 5-3. The transmitter can
be optimized for different tank
types and bottom shapes.
Cone antenna
Rod antenna
with flange
Rod antenna with
threaded tank
connection
UPPER REFERENCE POINT
Adapter
Flange
Process Seal
antenna
Tank Type Tank Bottom Type
Vertical Cylinder Flat, Dome, Cone, Flat inclined/Obstructed
Horizontal Cylinder Not used
Spherical Not used
Cubical Flat, Dome, Cone, Flat inclined/Obstructed
Flat Dome ConeFlat inclined Spherical
