Reference Manual
00809-0100-4026, Rev FA
July 2009
3-17
Rosemount 5400 Series
Bracket Mounting on
Wall

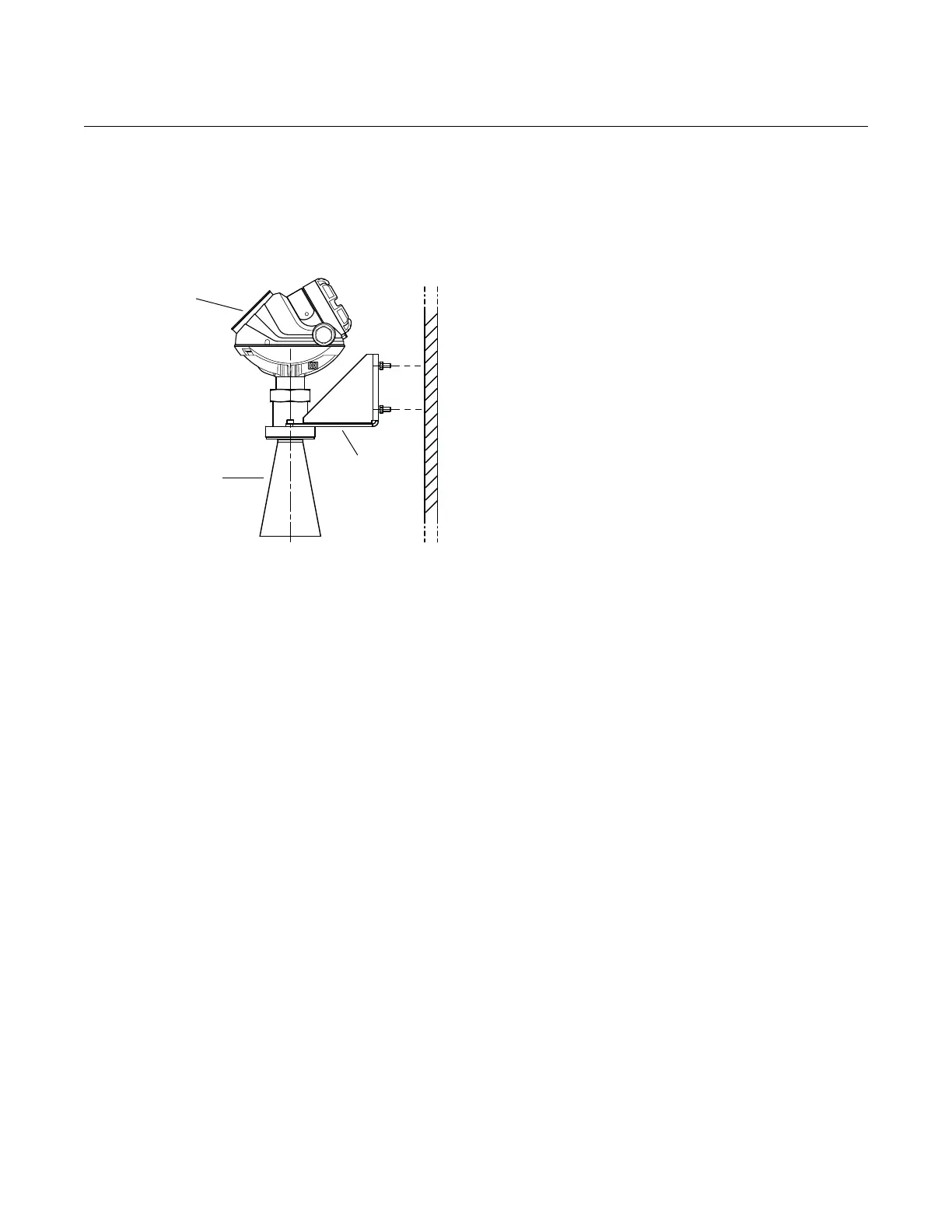

Figure 3-17. Bracket Mounting
the 5400, on wall.
1. Mount the bracket directly to the wall with
screws suitable for the purpose.
2. Mount the transmitter with antenna to the
bracket, then secure the installation with
the three supplied screws.
Transmitter
housing
Bracket
Antenna
