Reference Manual
00809-0100-4026, Rev FA
July 2009
5-7
Rosemount 5400 Series
Standard Tank Shapes

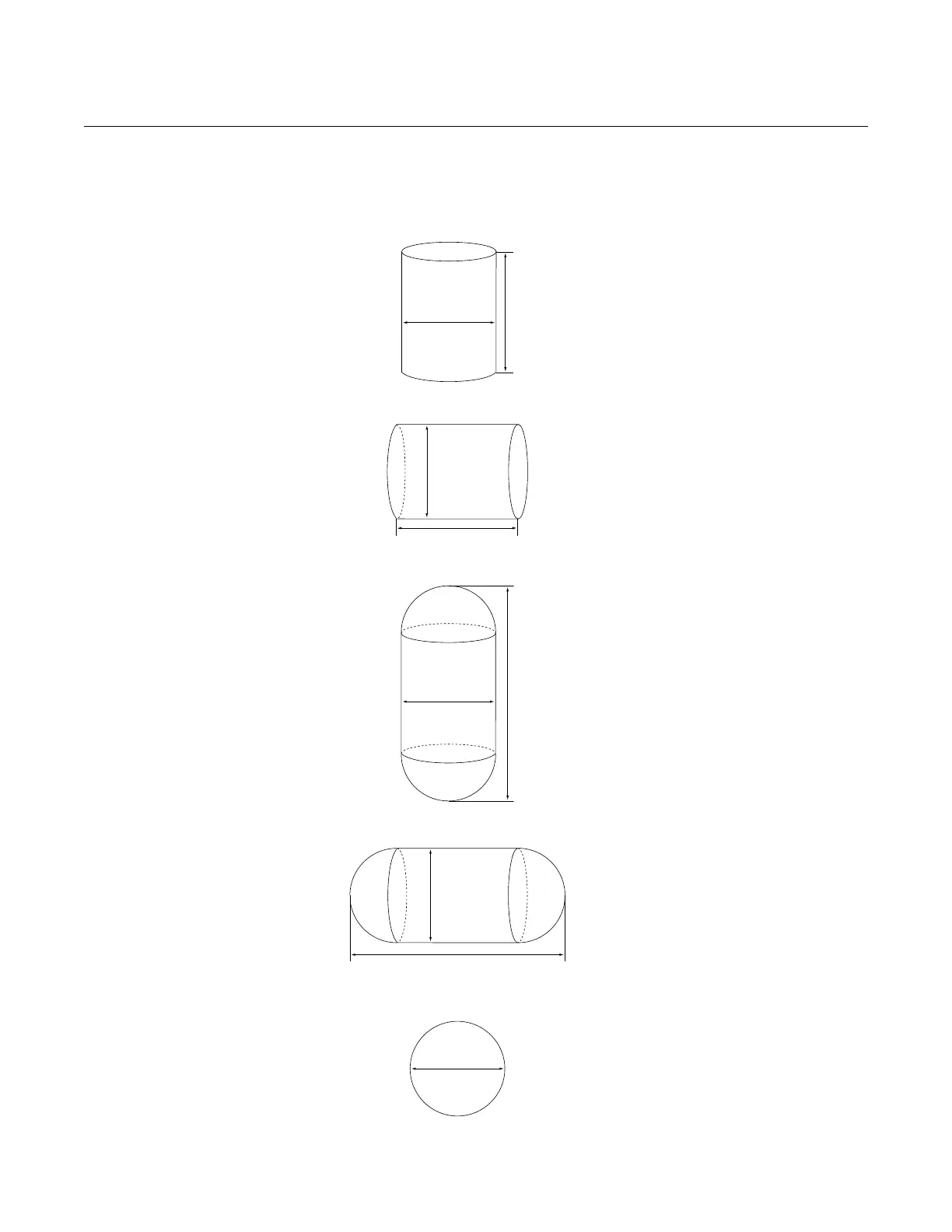

Figure 5-4. Standard tank
shapes
Vertical Cylinder
Vertical Cylinder tanks are specified by
Diameter, Height, and Volume Offset.
Horizontal Cylinder
Horizontal Cylinder tanks are specified by
Diameter, Height, and Volume Offset.
Vertical Bullet
Vertical Bullet tanks are specified by
Diameter, Height, and Volume Offset. The
volume calculation model for this tank
shape estimates that the radius of the
bullet end is equal to the Diameter/2.
Horizontal Bullet
Horizontal Bullet tanks are specified by
Diameter, Height, and Volume Offset. The
volume calculation model for this tank
shape estimates that the radius of the
bullet end is equal to the Diameter/2.
Sphere
Spherical tanks are specified by Diameter
and Volume Offset.
