Use the Setup function if you are already familiar with the configuration
process for the 5400 transmitter or to change the current settings:

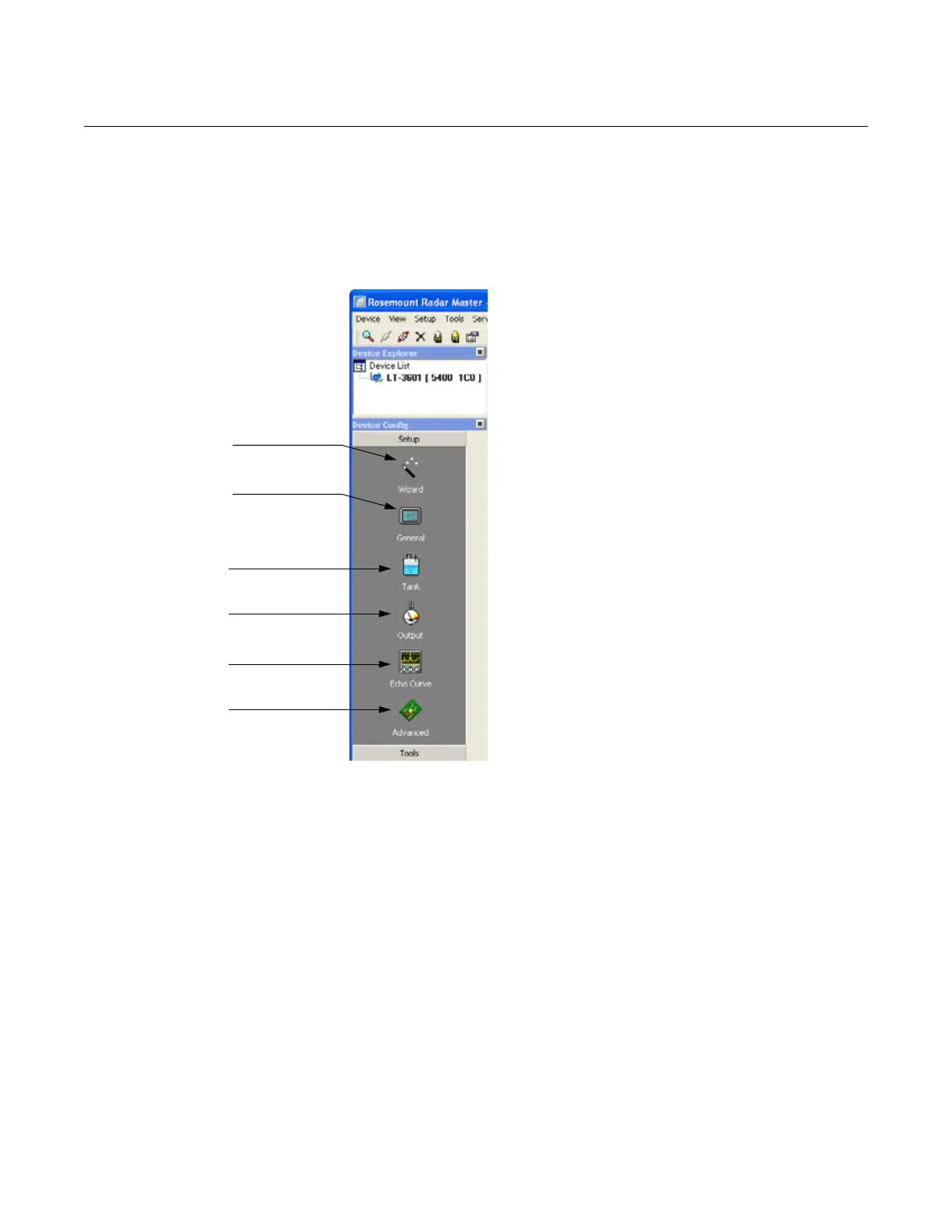

Figure 5-9. Setup functions in
RRM.
1. Start the RRM software.
2. In the RRM workspace, choose the
appropriate icon for configuring
transmitter parameters:
• Wizard: guides the user through
the basic configuration procedure
of the Rosemount 5400 transmitter
• General: configures general
settings, such as measurement
units and communication
parameters, and which LCD
variables to display
• Tank: configures Tank Geometry,
Tank Environment, and Volume
• Output: configures Analog Output
• Echo Curve: disturbance echo
handling
• Advanced: advanced
configuration
General
Tank Geometry,
Environment,
Volume
Analog Output
Echo Curve
Advanced
Wizard
