Rosemount 5402 - Process Connection Types and Details

Reference Manual
00809-0100-4026, Rev FA
July 2009
A-9
Rosemount 5400 Series
PROCESS CONNECTIONS

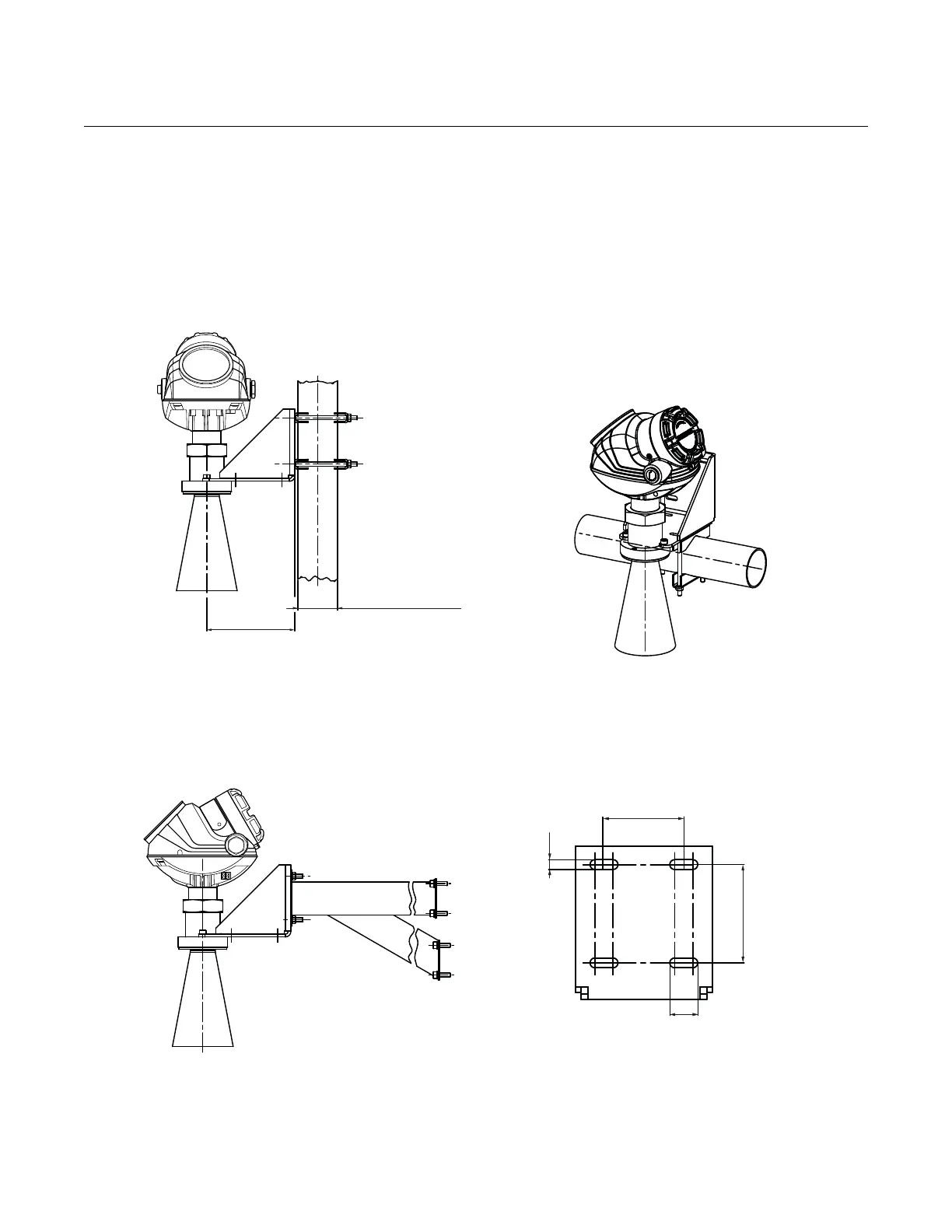

Bracket Mounting (model code BR) - All dimensions are in inches (mm)
Bracket mounting is available for Rosemount 5401 and 5402 with SST Cone Antenna (2S-8S) and Rosemount
5401 with Rod Antenna (3R-4R)
.
2.8 (70)
2.2 (57)
0.3 (7)
0.8 (20)
Pipe mounting
(horizontal pipe)
Pipe mounting
(vertical pipe)
5.2 (133)
Pipe diameter max
2.5 in. (64 mm)
Wall mounting Hole pattern
wall mounting
Drawing: 9240030-989 (www.rosemount.com)
