Rosemount 5402 - Hazardous Locations Certifications (FM, CSA)

Reference Manual
00809-0100-4026, Rev FA
July 2009
B-5
Rosemount 5400 Series
HAZARDOUS
LOCATIONS
CERTIFICATIONS
The Rosemount 5400 Series Transmitters with the following attached labels
have been certified to comply with the requirements of the approval agencies
noted.
Factory Mutual (FM)
Approvals
Project ID: 3020497.

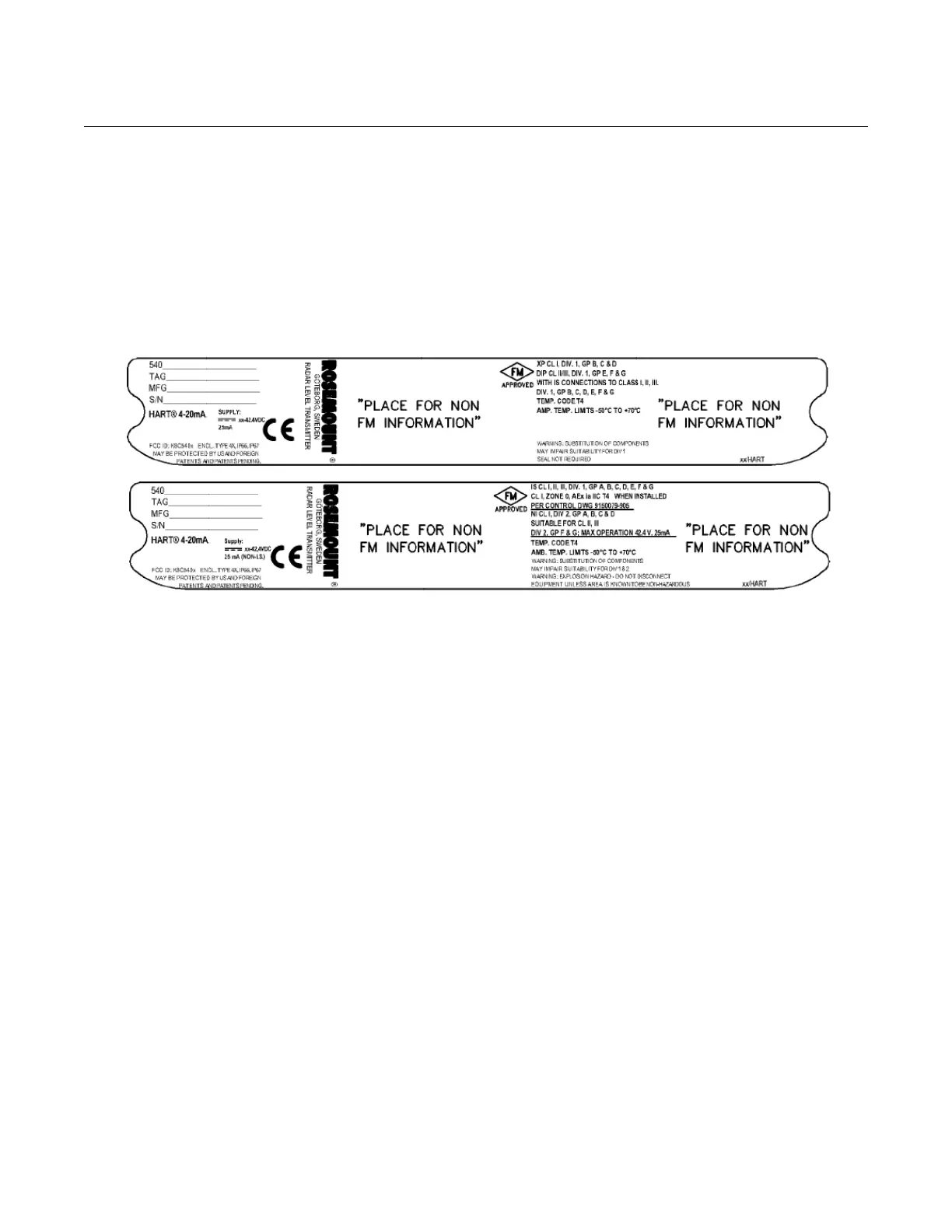

Figure B-3. Approval Labels
Factory Mutual (FM)
E5 Explosion-Proof for Class I, Division 1, Groups B, C and D.
Dust-Ignition proof for Class II/III, Division 1, Groups E, F and G with
intrinsically safe connections to Class I, II, III, Div 1, Groups B, C, D, E, F
and G.
Temperature code T4.
Ambient temperature limits: -50
°C to + 70 °C.
Seal not required.
I5 Intrinsically Safe for Class I, II, III, Division 1, Groups A, B, C, D, E, F
and G.
Class I, Zone 0, AEX ia IIC T4 when installed per Control Drawing:
9150079-905.
Non-incendive for Class I, Division 2, Groups A, B, C and D.
Suitable for Class II, III, Division 2, Groups F and G;
Max operation 42.4 V, 25 mA.
Temperature code T4.
Ambient Temperature Limits: -50
°C to + 70 °C.
