Reference Manual
00809-0100-4026, Rev FA
July 2009
4-3
Rosemount 5400 Series
CABLE/CONDUIT
ENTRIES
The electronics housing has two entries with ½ - 14 NPT threads. Optional
M20×1.5 adapters are also available. The connections are made according to
national, local and plant electrical codes.
Properly seal unused ports to prevent moisture or other contamination from
entering the terminal compartment of the electronics housing. Install wiring
with a drip loop with the bottom of the loop lower than the cable/conduit entry.

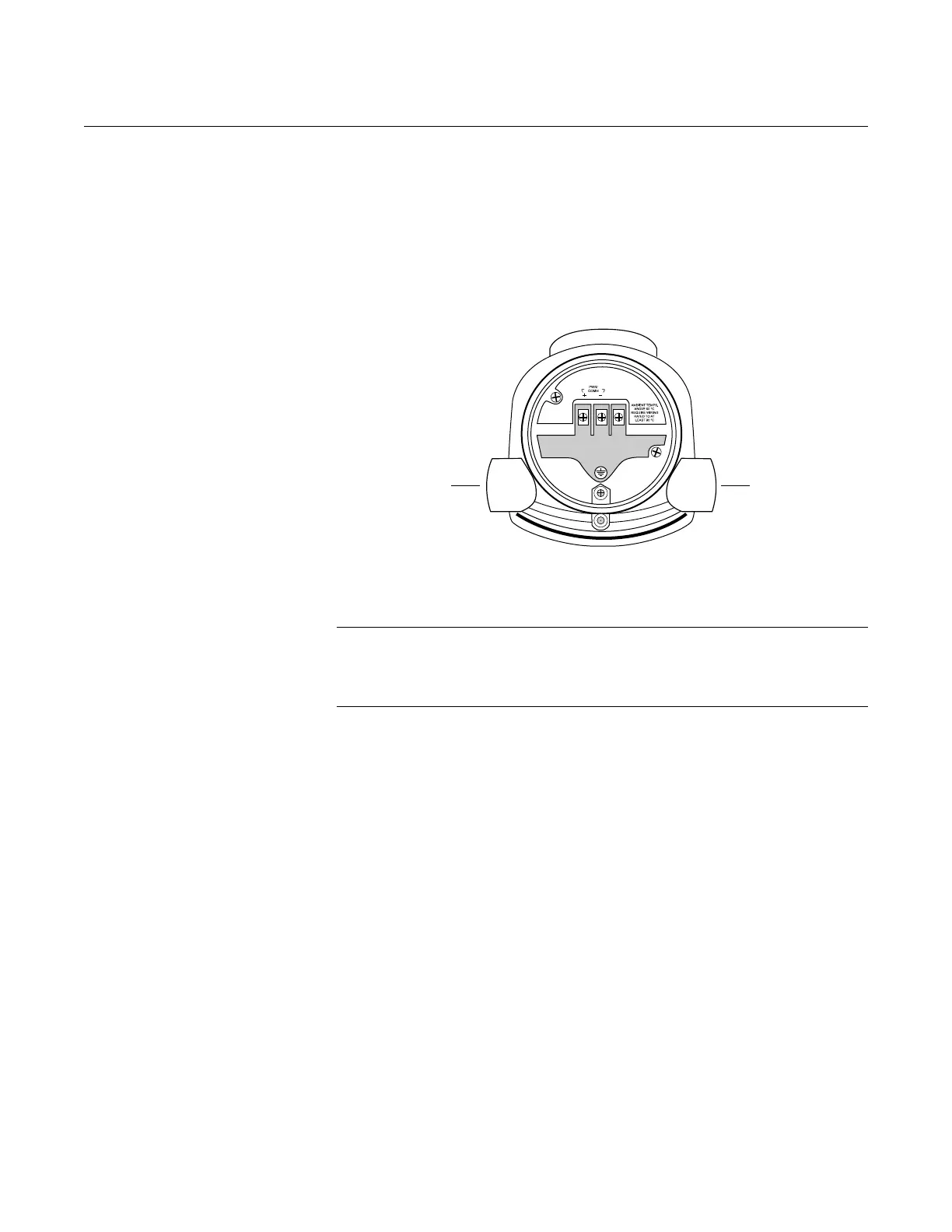

Figure 4-1. Cable Entries.
NOTE!
Use the enclosed metal plug to seal the unused port. The temporary orange
plastic plugs used at delivery are not sufficient seals! Failure to use the metal
plug to seal the unused port invalidates product certification.
Remove the orange protective plastic plugs, used for transportation.
Seal any unused port with the enclosed metal plug.
Cable Entry Cable Entry
