Rosemount 5400 Series
HART MULTIDROP
CONFIGURATION
The 5400 transmitter can be run in multidrop mode where each transmitter
has a unique HART address.

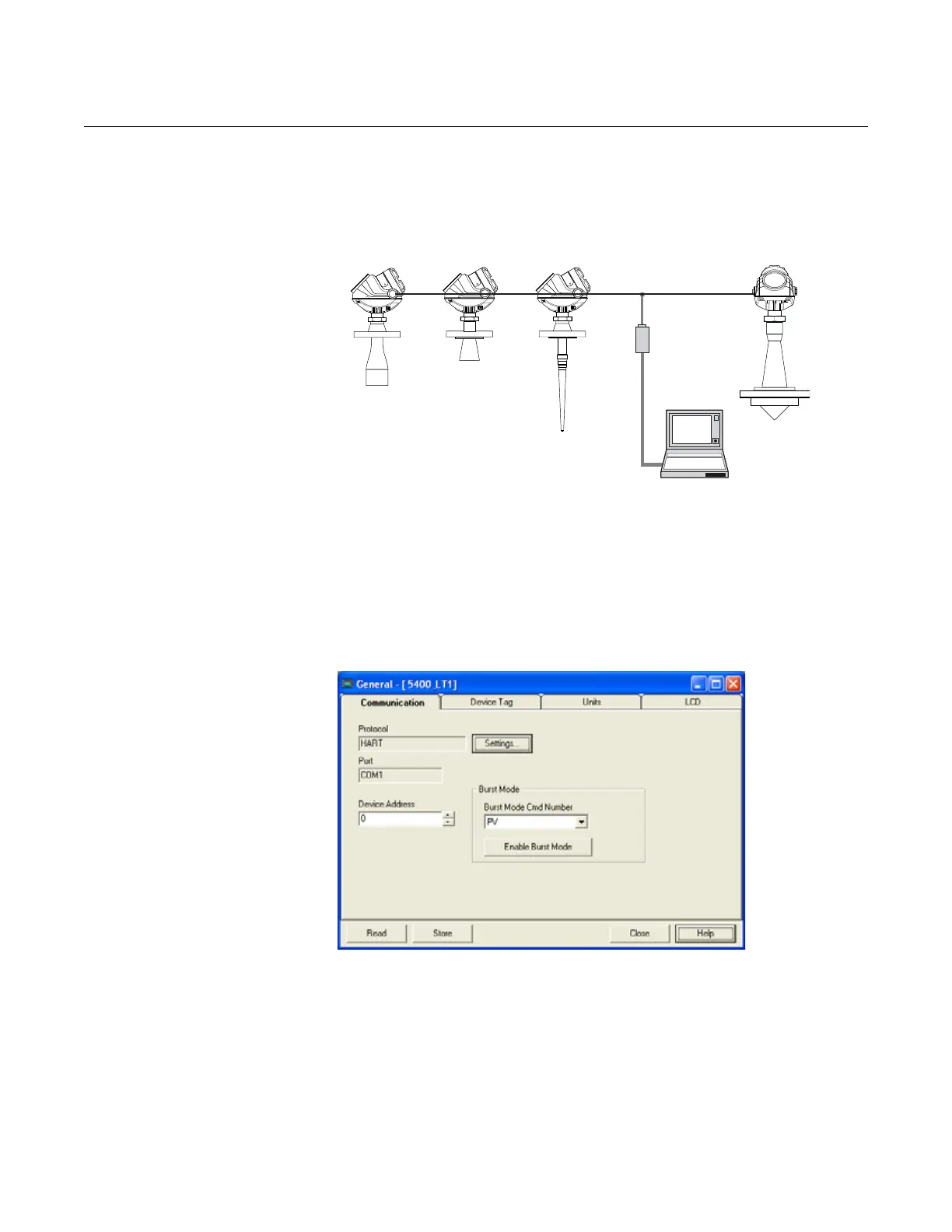

Figure 5-12. Multidrop
connection
The poll address can be changed using a 375 Field Communicator or using
the Rosemount Radar Master software.
To change the poll address using a 375 Field Communicator, choose HART
command [2, 2, 4, 1].
To change the poll address using the Rosemount Radar Master (RRM)
software:
1. Choose the Setup > General option.
2. Select the Communication tab.
3. Set the desired address (between 1 and 15 for multidrop operation).
4. Click the Store button to save the new address.
