Rosemount 5402 - Bracket Mounting on Pipe

Reference Manual
00809-0100-4026, Rev FA
July 2009
Rosemount 5400 Series
3-18
Bracket Mounting on
Pipe

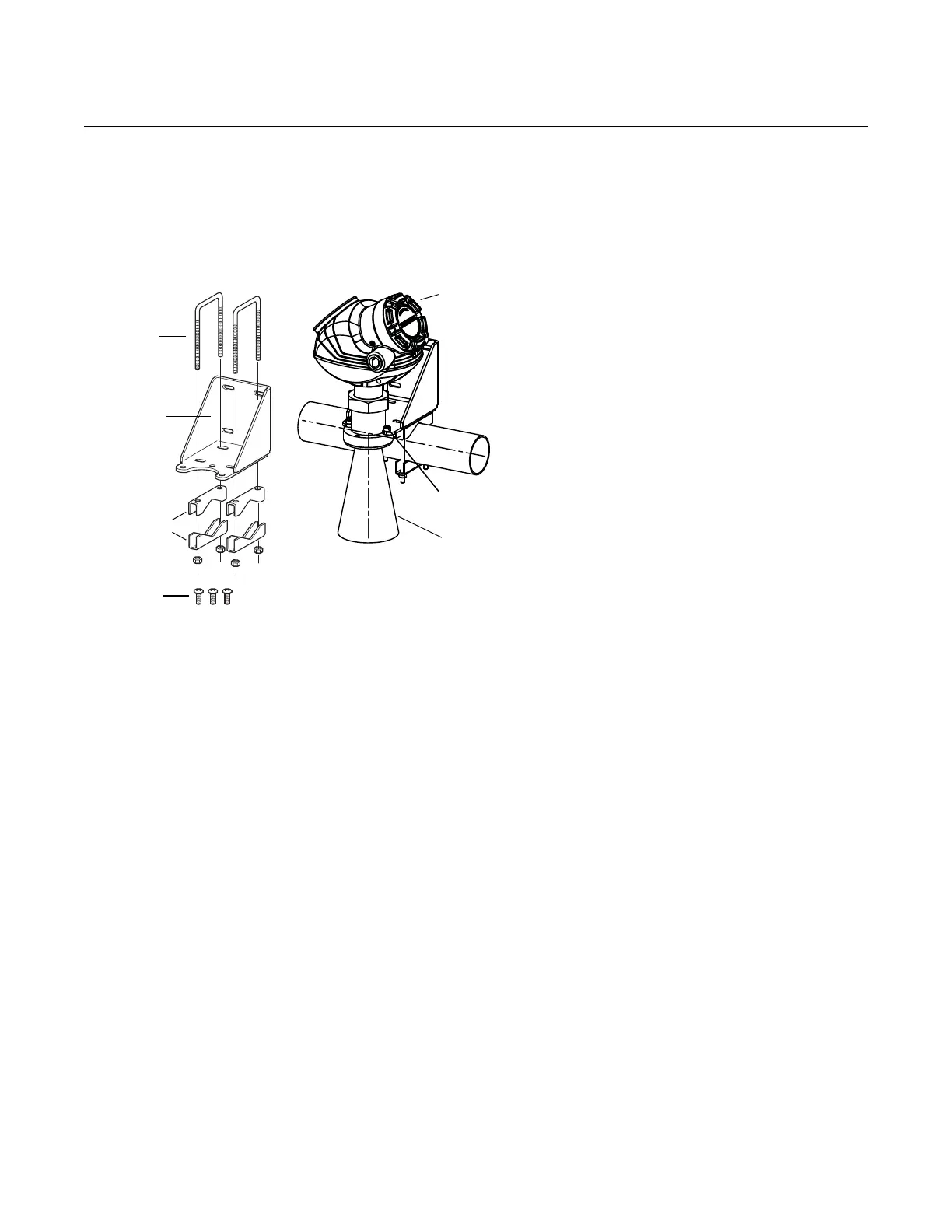

Figure 3-18. Bracket Mounting
the 5400, on pipe.
1. Put the two U-bolts through the holes of
the bracket. Holes are available for both
vertical and horizontal pipe mounting.
2. Put the clamping brackets on the U-bolts
and around the pipe.
3. Fasten the bracket to the pipe with the
four supplied nuts.
4. Mount the transmitter with antenna to the
bracket, and secure with the three
supplied screws.
Clamping
Bracket
Antenna
Transmitter
housing
Bracket
U-bolt
Screws
Screw
