Reference Manual
00809-0100-4026, Rev FA
July 2009
3-11
Rosemount 5400 Series

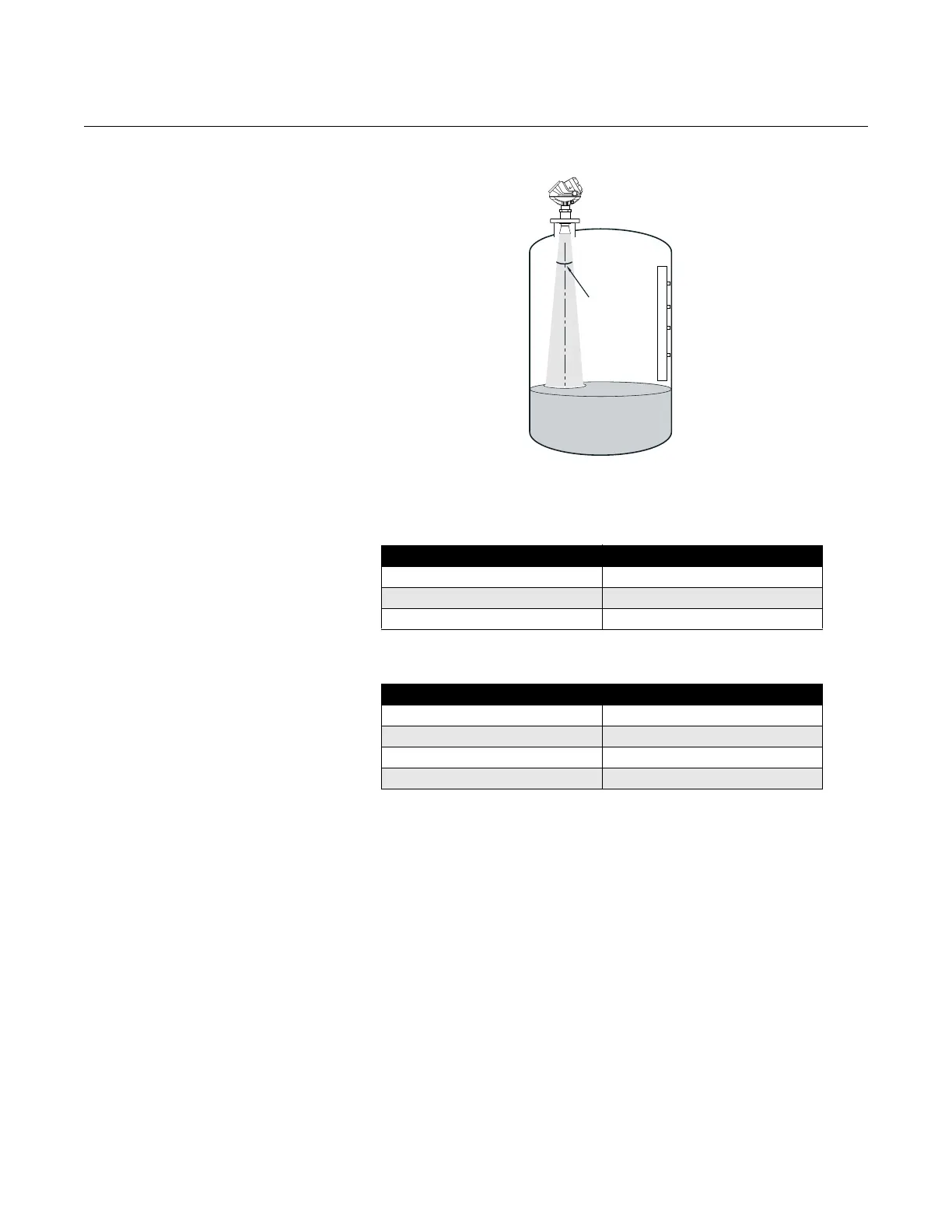

Figure 3-12. Beam Angle.
Table 3-7. Beam Angle for the
Rosemount 5402.
Table 3-8. Beam Angle for the
Rosemount 5401.
Antenna Beam Angle
Cone 2 in. (50 mm) / Process Seal 17°
Cone 3 in. (75 mm) / Process Seal 11°
Cone 4 in. (100 mm) / Process Seal 9°
Antenna Beam Angle
3 in. (75 mm) Cone Pipe installations only
4 in. (100 mm) Cone / Rod 35°
6 in. (150 mm) Cone 23°
8 in. (200 mm) Cone 17°
