Rosemount 5402 - Page 98

Reference Manual
00809-0100-4026, Rev FA
July 2009
Rosemount 5400 Series
7-8

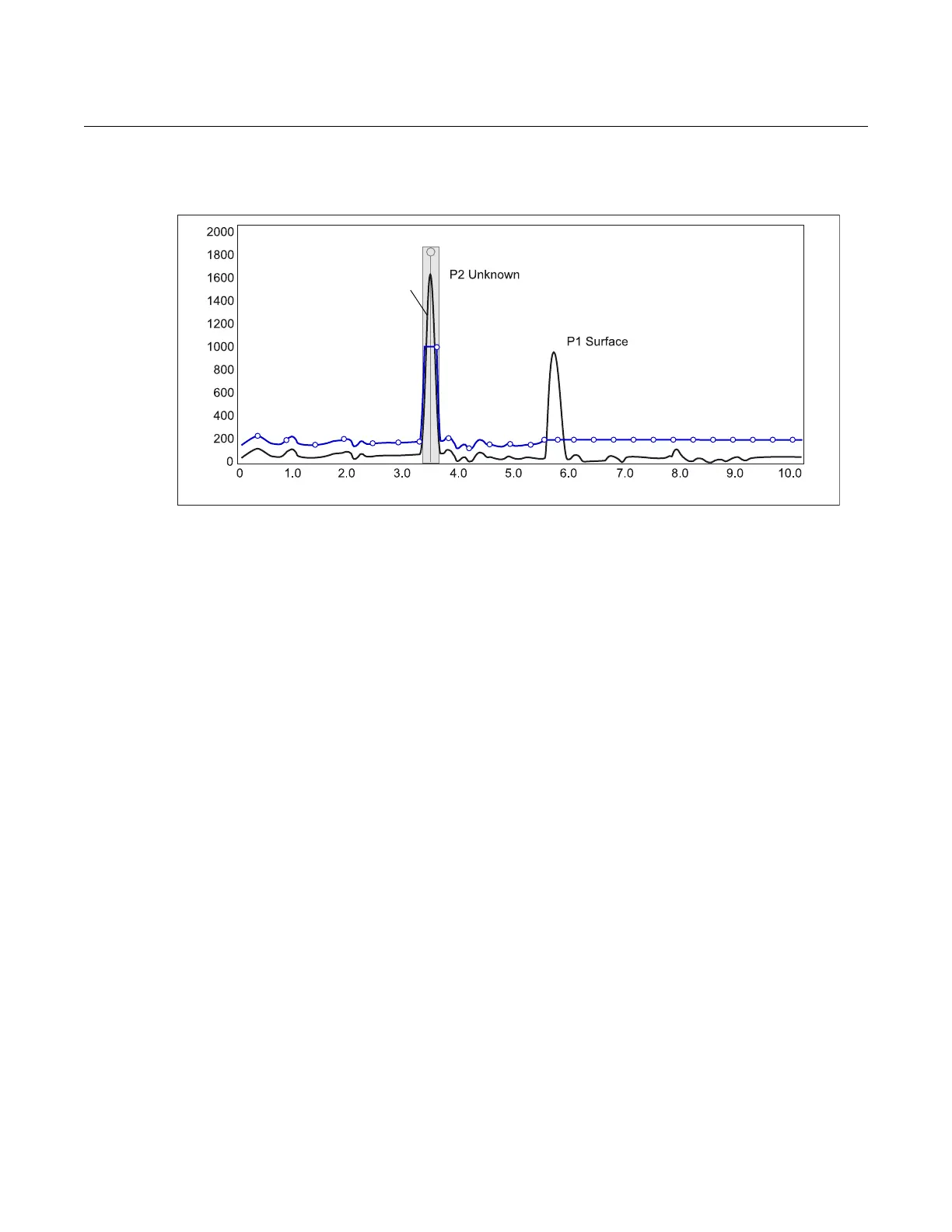

Figure 7-6. Disturbing echoes
can be filtered out by registration
as False Echoes.
The False Echo Registration function is available in the Rosemount Radar
Master (RRM) program, in the AMS Suite, as well as for the 275/375
Handheld Communicator.
Registered False Echo
Amplitude, mV
Distance, m
