measure to a higher resolution.
The GROUND MODE is always set to OFF for IR and GB
tests.

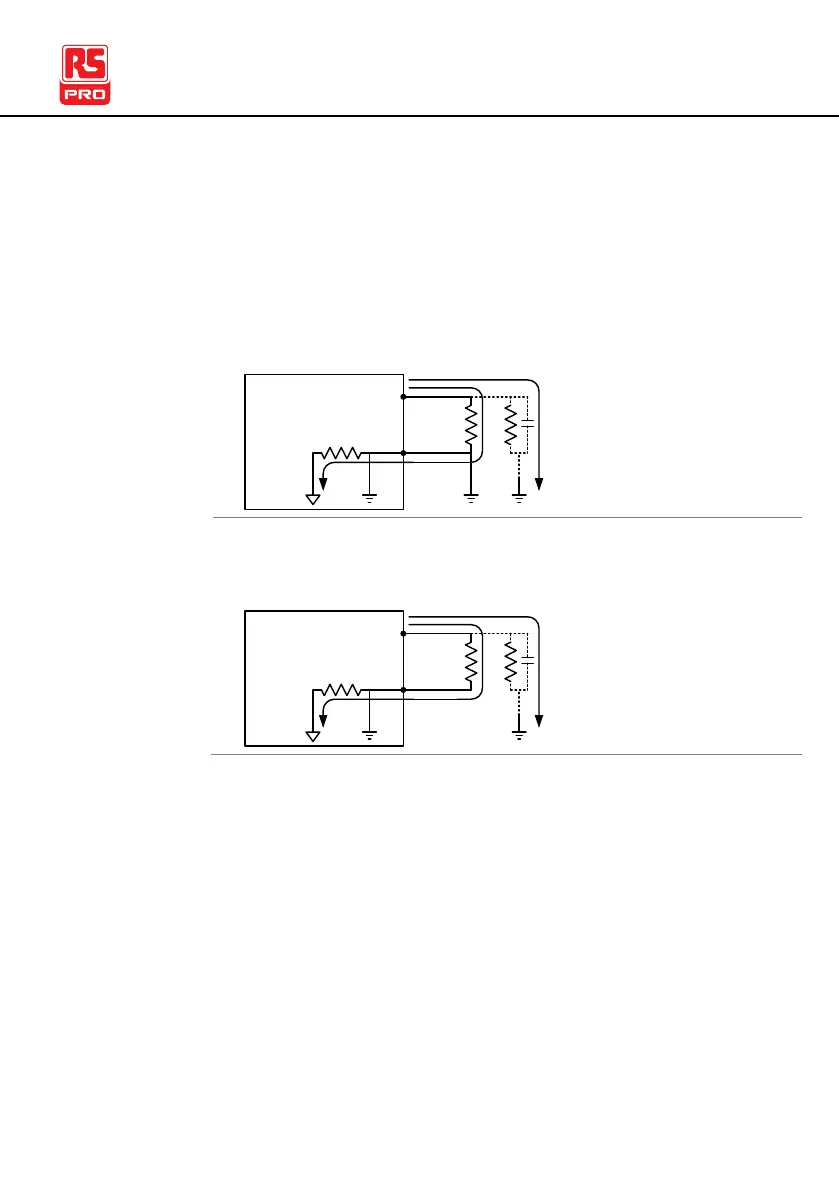

GROUND MODE = ON, DUT grounded
High Voltage
terminal
Return terminal
DUT
IIT-2000/ 2010/5000/5010
stray
resistance,
capacitance
GROUND MODE = ON, DUT floating
High Voltage
terminal
DUT
IIT-2000/2010/5000/5010
stray
resistance,
capacitance
Return terminal
