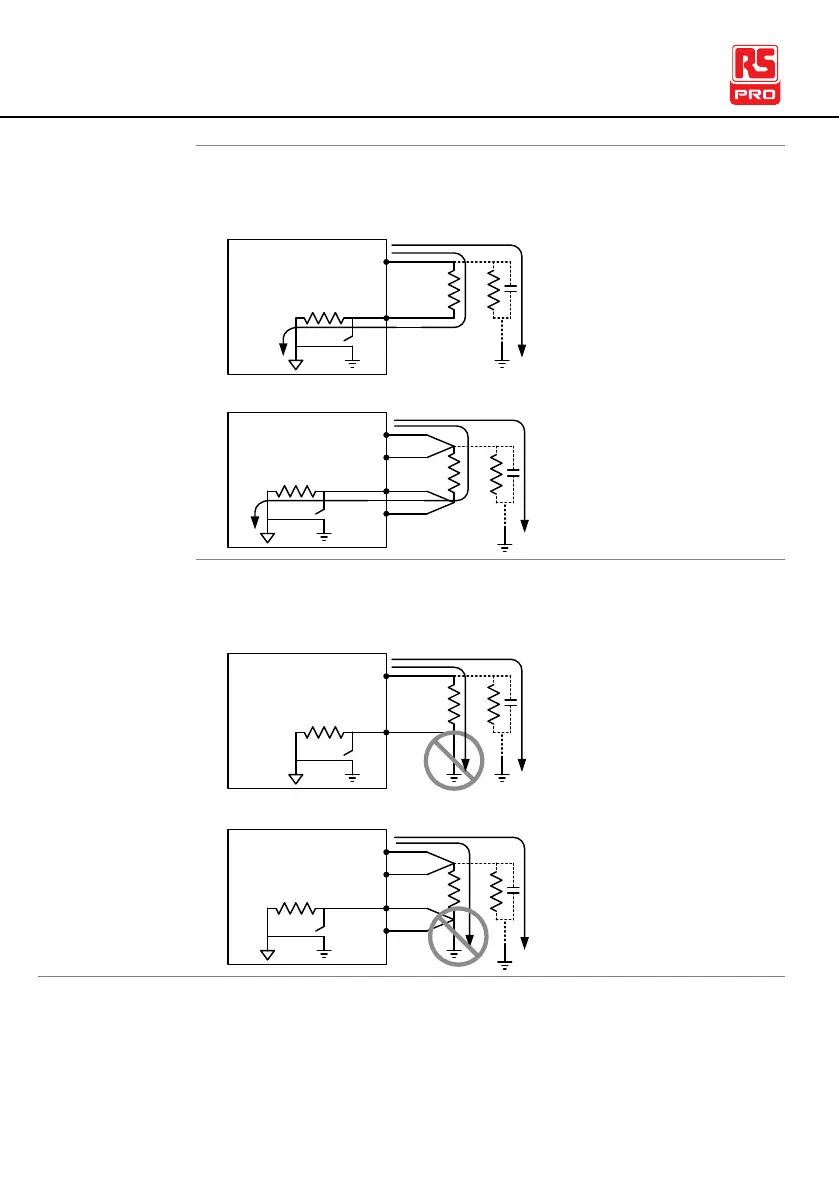

GROUND MODE = OFF, DUT floating
High Voltage
terminal
DUT
IIT-2000/2010/5000/5010
stray
resistance,
capacitance
Return terminal
IIT-2010/5010(GB testing)
DUT
Source H
Source L
Sense H
Sense L
stray
resistance,
capacitance
GROUND MODE = OFF, DUT grounded
High Voltage
terminal
DUT
IIT-2000/2010/5000/5010
stray
resistance,
capacitance
Return terminal
IIT-2010/5010(GB testing)
DUT
Source H
Source
L
Sense H
Sense L
stray
resistance,
capacitance
