IIT-2000/2010/5000/5010 Instruction Manual/English
05/08/2015 Version No. 001 87
Test V
Meas. I
time
Start time
RAMP TIME
Legend: Voltage: Current
TEST time
Voltage
Current

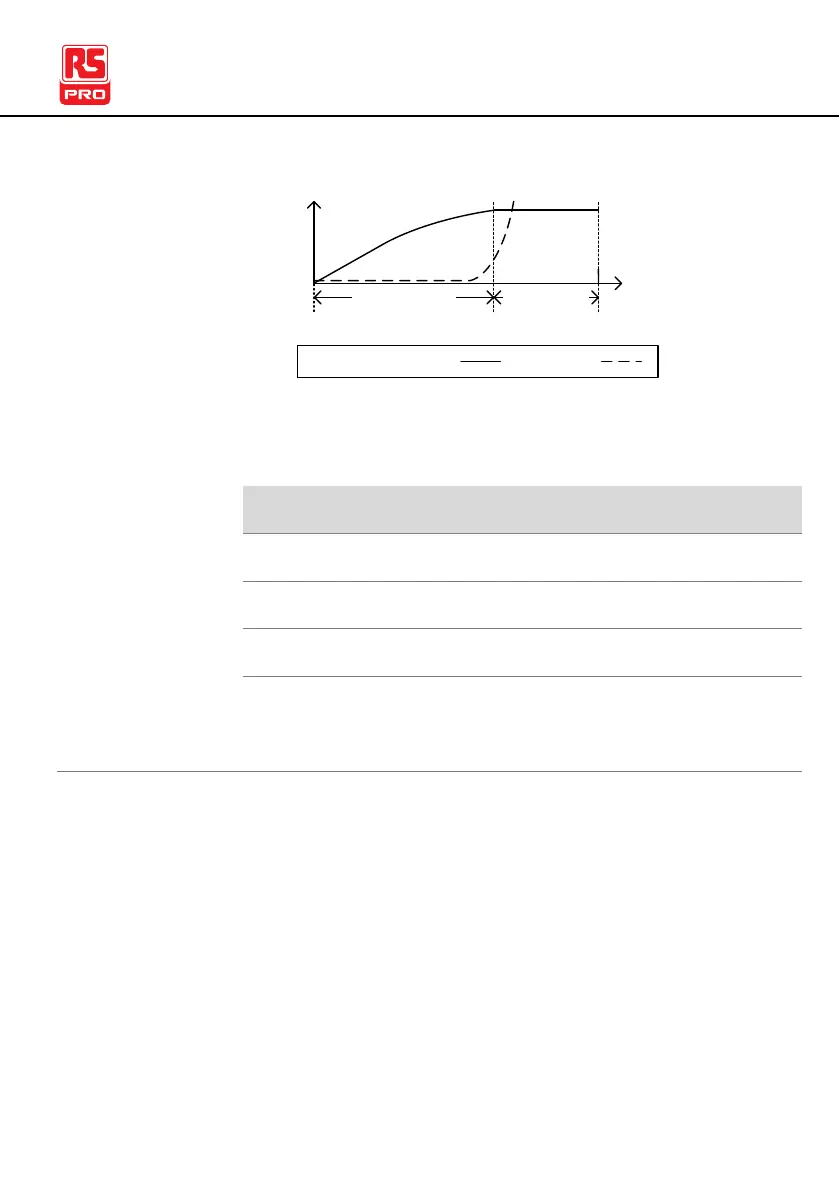

The test items that are plotted on the sweep graph depend on
the type of test that is performed.
TEST
Graph Test Items
ACW:
Test voltage, measured current (V, I)
DCW:
Test voltage, measured current (V, I)
IR:
Test voltage, measured resistance (V, R)
GB:
Test current, measured resistance (I, R)
Steps
1. Choose MANU number 000 to enter the special test
mode.
Page 44
