Configuration Guide 802.1x Configuration
Private supplicant only: enable
Client Online Probe: disable
Eapol Tag Enable: disable
Authorization Mode: disable
Step 4: Display Radius authentication and accounting related configurations;
Ruijie#show radius server
Server IP: 192.168.32.120
Accounting Port: 1813
Authen Port: 1812
Server State: ready
Application of 802.1X port-based dynamic VLAN assignment
Network Topology

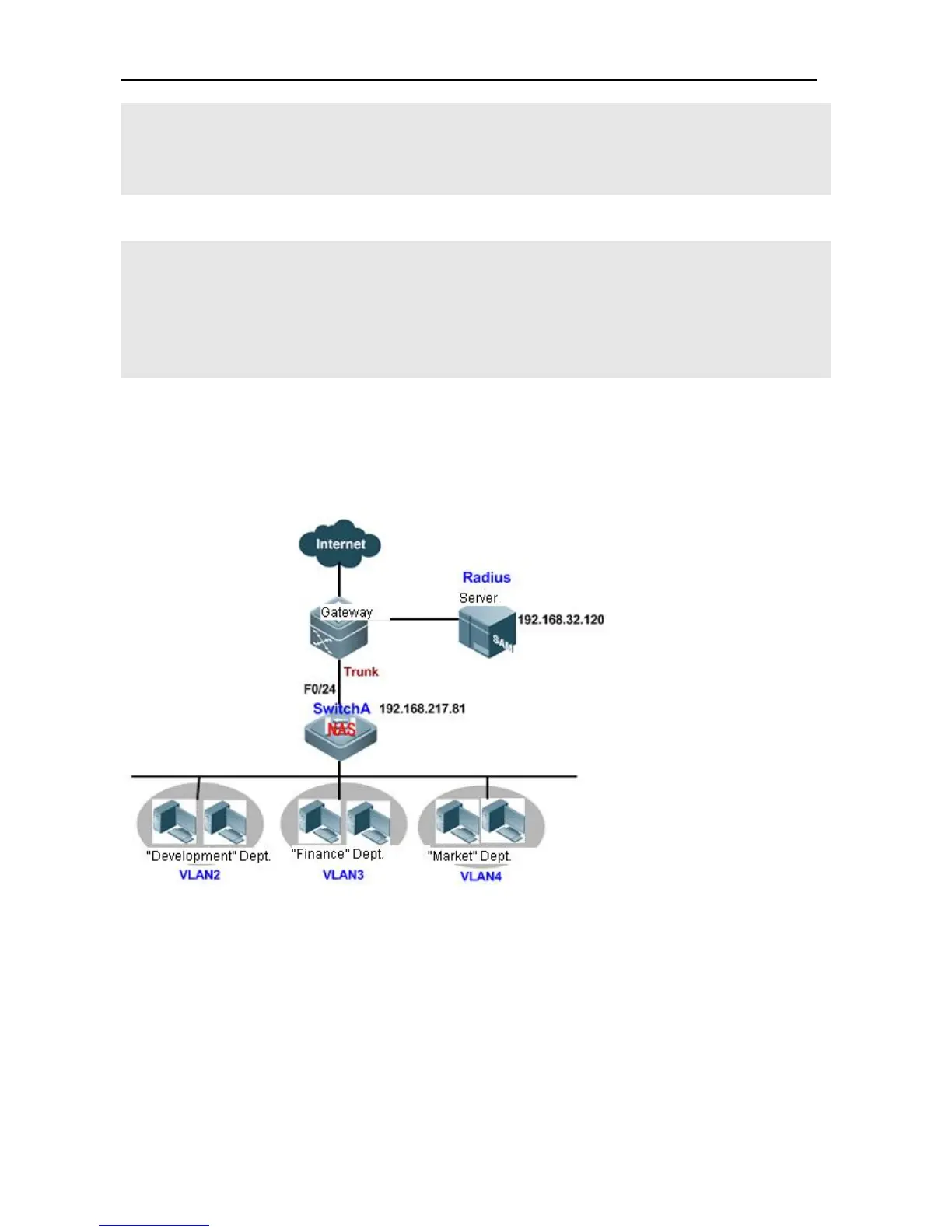

Figure 13 Topoloy for 802.1X port-based dynamic VLAN assignment
Networking requirements
A company has three user groups, namely "development" department, "finance" department and "market" department.
The following needs must be met:
1) Each member of these three user groups can be connected to any port of the access device and join the
corresponding VLAN after successful authentication ("development" department to join VLAN2, "finance"
department to join VLAN3, and "market" department to join VLAN4).
2) Complete data isolation shall be achieved between VLANs corresponding to three user groups, namely the
members of one group cannot exchange data with members of another group.
