Installation Method
1-13
● Setting the water supply nozzle
The wash stations are set in the 4-position reservoir tray at the rearmost position of the cabinet. When
the 4-position reservoir tray is removed, you will see four water supply nozzles. If you have changed the
positions or quantity of wash stations, change the nozzle positions accordingly. The water supply nozzle
can be replaced as follows:
1. Remove the 4-position reservoir tray at the installed position of the wash reservoir.
2. Remove the cap or wash station nozzle currently set.
The cap can be removed by turning it counterclockwise. To remove the nozzle, turn the wash cap
counterclockwise to remove it, and then remove the wash station nozzle by pulling it straight up.
3. Set the cap if you want to seal the water supply part. At this time, confirm that a waterproof rubber
gasket is placed inside the hole, and then turn the cap clockwise to secure it.
4. To install the wash station nozzle, first align the small hole in the waterproof rubber gasket with the
small hole in the water supply outlet. Next, put the small projection on the bottom face of the wash
station nozzle into the small hole in the water supply outlet. Lastly, put the wash cap on and turn it
clockwise to secure the cap.

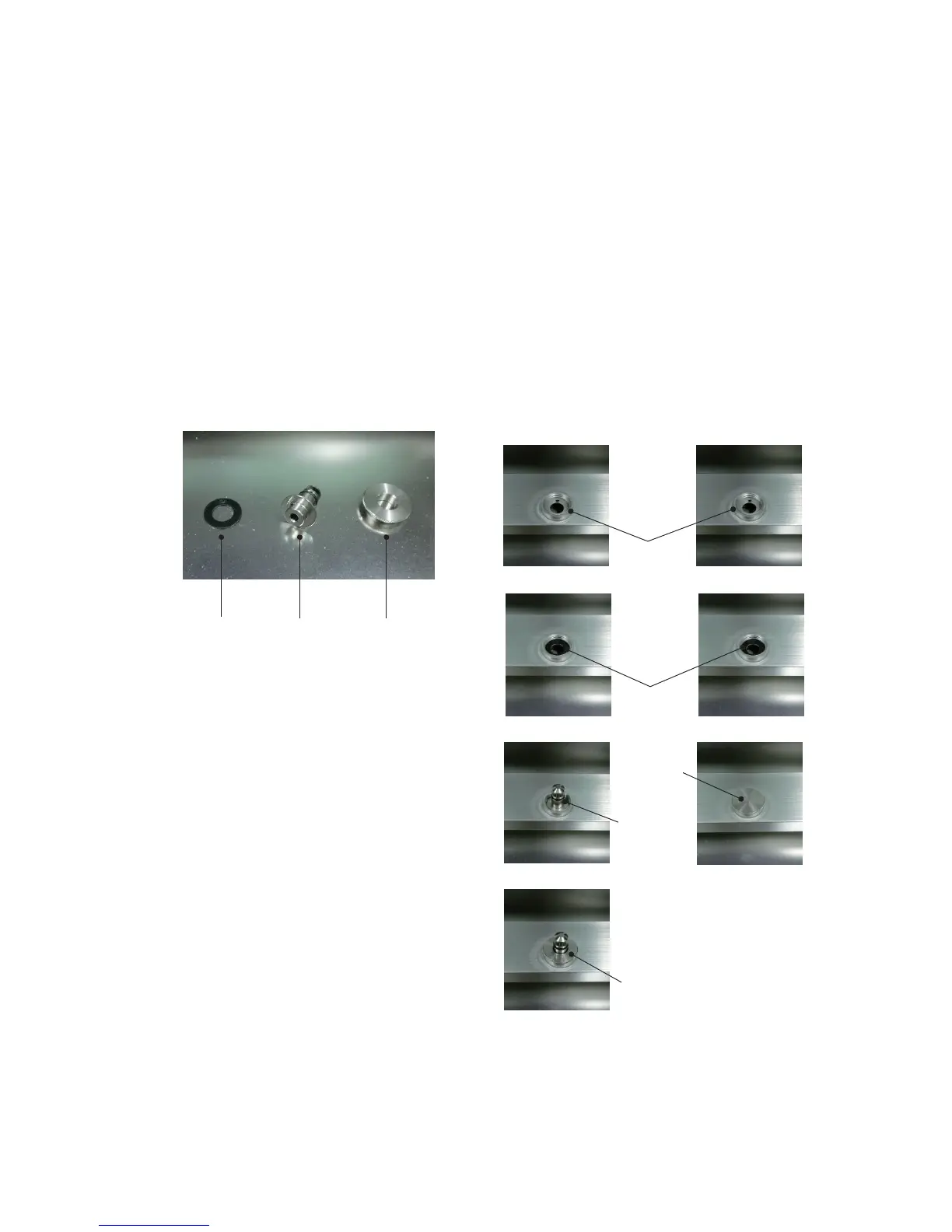

Wash station nozzle Cap
To Next Page
