Installation Method
1-12
2. No more than 100 to 200 mm of maintenance space is available on the right side face of the
instrument
In this case, approx. 35 mm of space may be required at the back of the instrument.

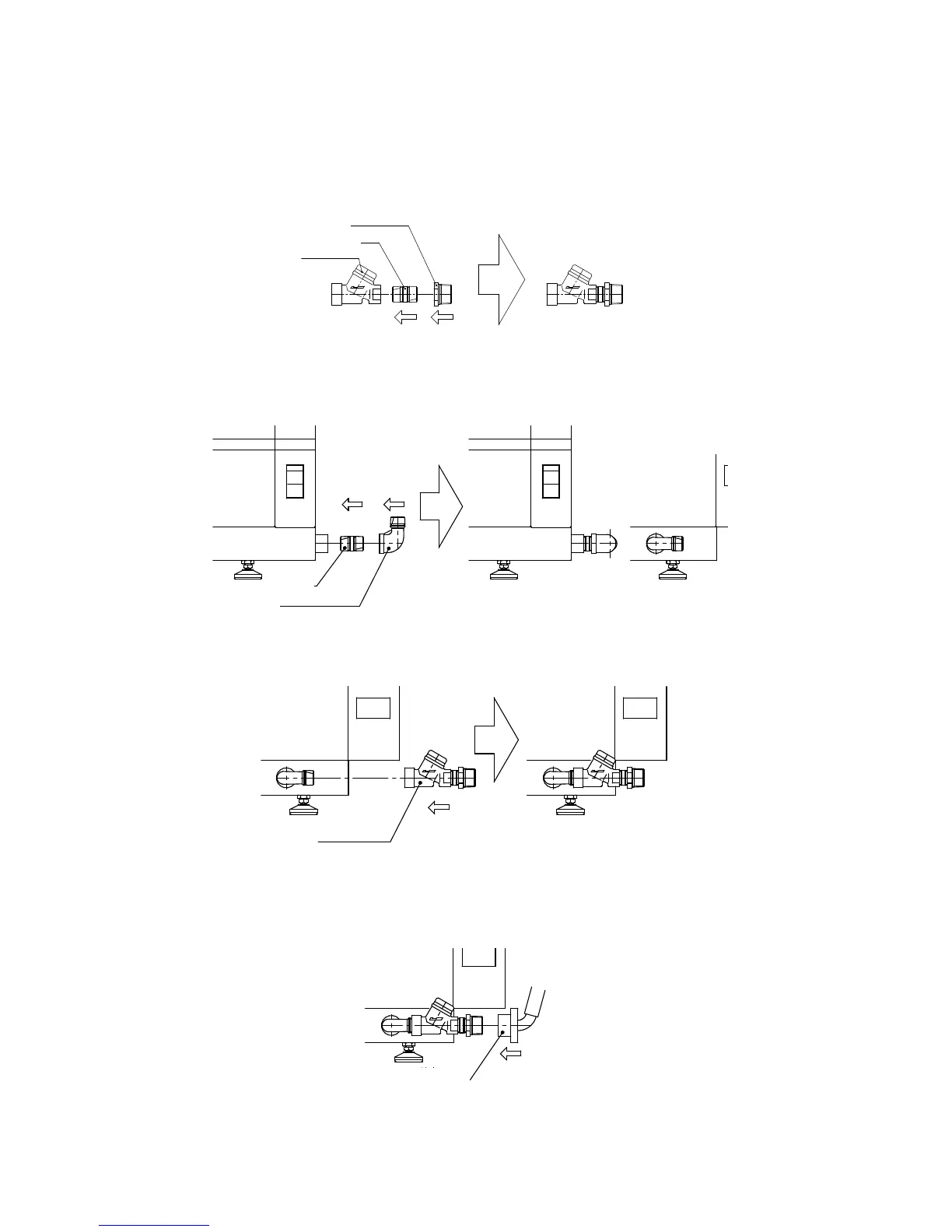

(1) Screw the connection nipple and bushing into the attached strainer.
(2) Screw the attached nipple and street elbow into the water supply port on the right side face of the
instrument.
(3) Screw in the strainer set assembled in (1).
(4) Screw in the water supply hose, and connect the water supply hose to the tap water supply
according to P. 1-9.
