PR 5220 Instrument Manual Installing the Instrument
Sartorius EN-23

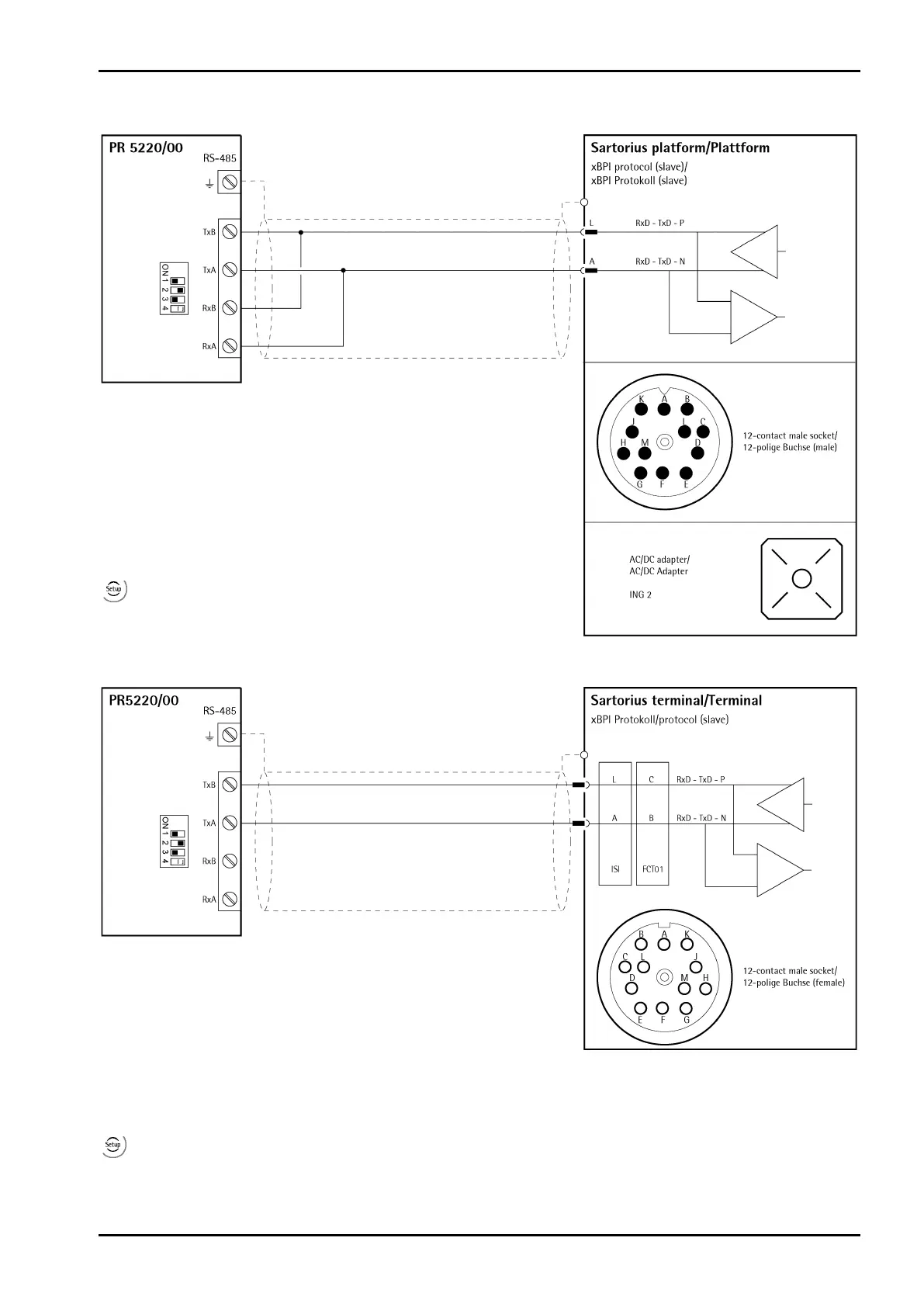

3.1.2.2 Connection of a xBPI Platform
3.1.2.3 Connection of a xBPI terminal
Switch settings
ON:
S1, S3
OFF:
S2
S4 is not relevant!
Configuration PR 5220
-[Serial ports parameter]-[xBPI-Port]-[Builtin RS485]
Switch settings
ON:
S1, S3
OFF:
S2
S4 is not relevant!
Configuration PR 5220
-[Serial ports parameter]-[xBPI-Port]-[ Builtin RS485]
