4.1.4 DataBoxes
General. Data boxes on the GPSMAP screen can
show a wide range of useful data items. Using the
middle right button, 2 or 4 data boxes can be toggled
on and off.
Contents. The contents of the data boxes can be
selected from the SETTINGS menu. Please refer
to the MAINMENU/Settings Menu section of the
User Guide for full details of each data item.
DataBoxesandProles. An easy way to change
several databoxes at once is to set up different
selection in Proles. Switching a Profile can thus
be used to change all the data boxes at once.
Alternatively, Press & Hold on the touchscreen will
take you directly to the relevant settings menu.
IndependentBoxes. The contents of the 4Data
Box selection are independent of the 2DayaBox
selection. So it is possible to set up 6 separate data
items, or repeat items between the 2 and 4 box
selection.
Elevation Data and Data Boxes. Repeated
pressing of the Data Box toggle button will then
reveal the GPS MAP/ ELEV screen, and then an
addition 2 Data Boxes. One last press will return to
the GPSMAP screen and no data boxes.

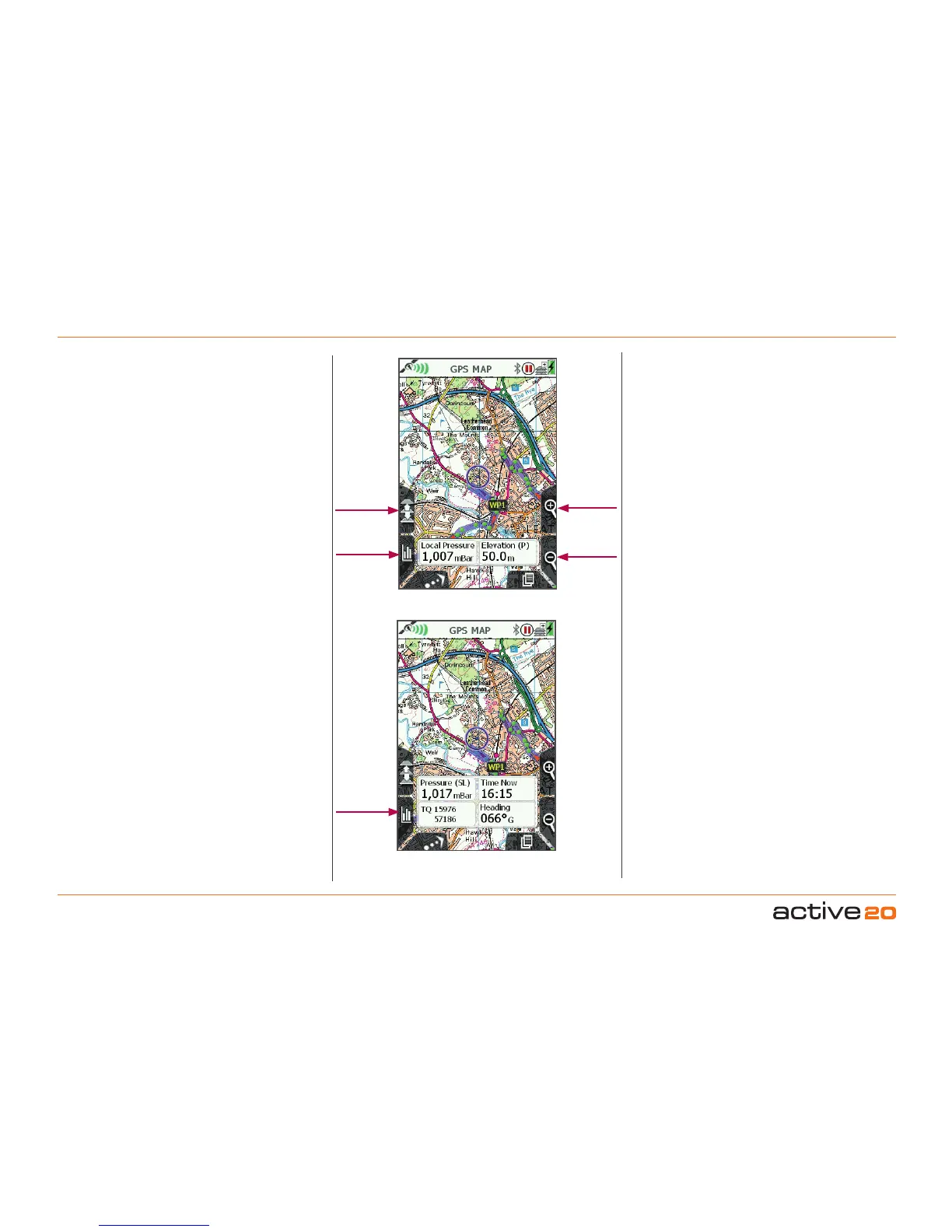

4.1 Screen1:GPSMAP(...Cont)
2DataBoxes
Toggle
Maps
4DataBoxes
Toggle
DataBoxes
Zoom
In
Zoom
Out
DataItemsavailable
1. Speed Now
2. Average Speed
3. Average Moving
4. Max Speed
5. Wheel Speed
6. Time Now
7. Time Moving
8. Stopped time
9. Trip Time
10. Trip Distance
11. Elevation (Pressure)
12. Elevation (Maps)
13. Elevaton (GPS)
14. Gradient
15. Max Altitude
16. Min Altitude
17. Total Ascents
18. Total Descents
19. Local Pressure
20. Pressure (Sea Level)
21. HRM
22. HRM (Avg)
23. Cadence
24. Cad (Avg)
25. Heading
26. GoTo Bearing
27. GoTo Distance
28. GoTo ETA
29. GoTo Time
30. GoTo VMG
31. Nearest POI
32. Bearing to POI
33. Nearest POI Dist
34. POI ETA
35. POI Time
36. POI VMG
37. Route Name
38. Route Distance
39. Route X-Track Err
40. Route Done
41. WP Name
42. Bearing Next WP
43. Dist Next WP
44. ETA to Next
45. Time Next
46. VMG Next
47. Bearing to End
48. Distance to End
49. ETA to End
50. Time to End
51. VMG End
52. Date
53. Posn as DD MM.MM
54. Posn as DD.DDDDD
55. Posn as OSGB
56. Sunrise
57. Sunset
58. Moon Phase
59. GPS Accuracy
60. Battery Voltage
61. PDOP
62. HDOP
63. VDOP
64. TDOP
65. Battery Level
2or4
DataBoxes
