satmap active 20 - ROUTE PLAN Screen

Software v3.0.11065
© Satmap Systems Ltd 2017
67
7. MAINMENU:RoutesMenu(...cont)
7.17 ROUTEPLANScreen
(GPS MAP → MAIN MENU → ROUTES MENU →
(folder/route) → View → Prole)
This screen shows an elevation profile of the route,
together with six data fields:
• Distance
• Total Ascents
• Total Descents
• Maximum Altitude
• Minimum Altitude
• Approximate Time
The ROUTE PLAN screen is accessed from the
ROUTEMAP screen by pressing the Prole button.
The vertical line can be used to access information
about each waypoint by moving the rocker pad left/
right. Pressing the rocker pad once left/right, moves
the vertical line along each individual waypoint.
Pushing and holding the rocker pad left/right moves
the vertical line across numerous waypoints, giving
you accelerated scrolling.
Accelerated scrolling: This is useful if you have
a route with many waypoints and want to access
information about a particular waypoint. Press and
hold the rocker pad left/right until you reach the specic
waypoint.
If you have more than 50 waypoints, then you will
only be able to see the start and end points, but you
will still be able to access details of each point using
the vertical line.
The waypoint label on the map, its coordinates
and comments appear under the elevation profile.
Below a total of fifty waypoints, individual waypoints
are shown along the profile as green dots. If a route
is a ‘track’, i.e. a converted trail, the comment field
contains date, time, speed etc. as recorded by the
Active 20.
Buttons:
Card
Go to ROUTECARD screen
GoTo
Go to PLANNING screen, centred on the indicated
waypoint
Reverse
Press to Reverse the route
Back
Go to previous screen

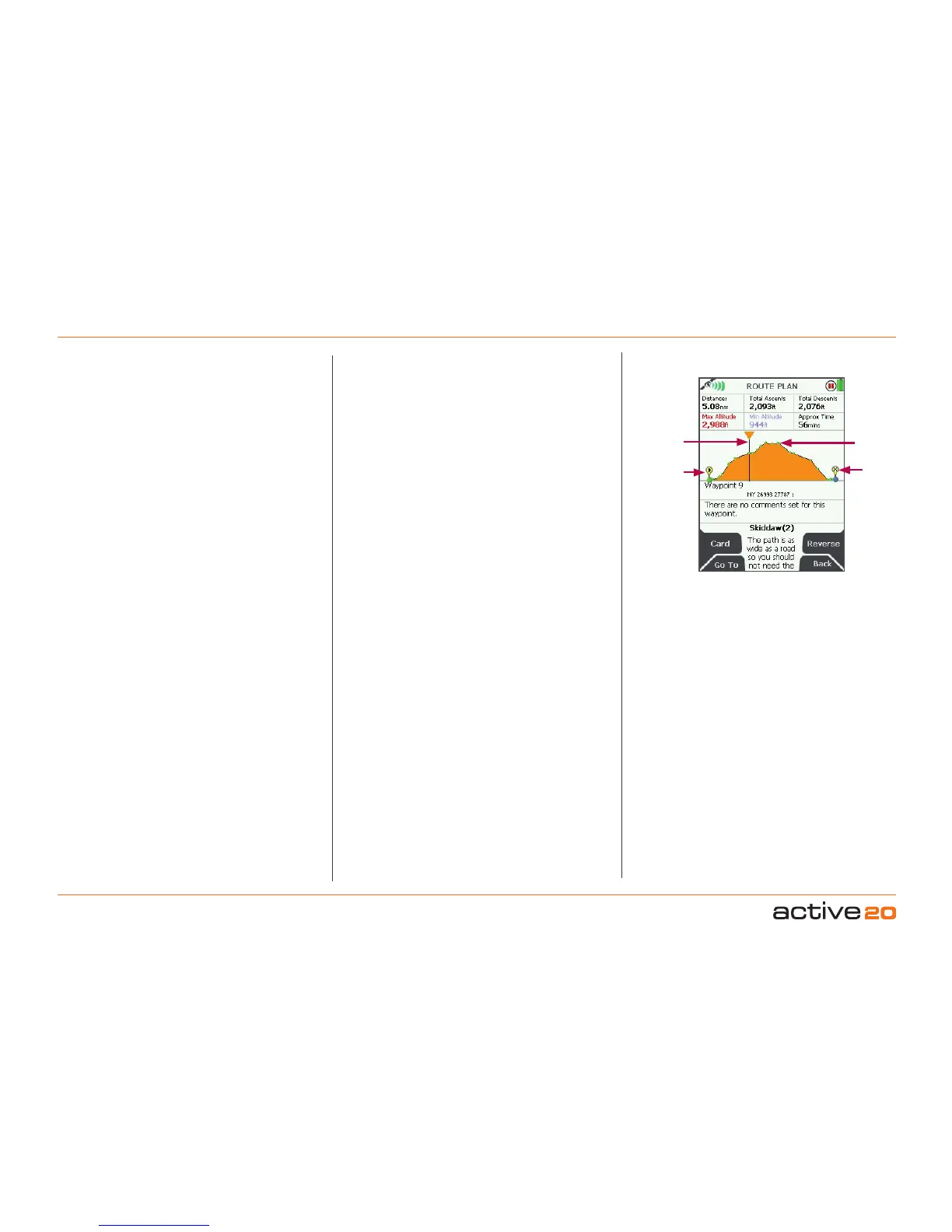

ROUTE PLAN
screen
Waypoint
End point
Vertical
line
Start point
Less than 50 waypoints
