4.1.5 DynamicElevation
General. This features allows you to view mapping
and a live elevation profile on the same screen,
allowing detailed visability of the profile of the route
head, or the completed route behind. After pressing
the Data Box button following the 4 data box
selection, the GPSMAP/ELEVscreen will apprear.
The elevtion profile works in 3 modes: Active Route
mode, GoTo mode and No Route mode.
Active Route mode. With a pre-planned route
loaded onto your Active 20 and "Activated" the
elevation graph will show you the profile of the route
ahead. A red spot will indicate your location on the
profile. The "ahead" direction will be indicated by the
graph to the right of the spot. In general use the red
spot will lie 1/3 the way along the graph, showing a
portion of the route already travelled.
Please Note: moving the rocker pad will put the
screen into PLANNING mode and the Elevation
profile will disappear, until you return to GPS MAP
screen, using the bottom left hand button.
GoTo mode. The dynamic elevation feature also
works in conjunction with the GoTo point (please
see later chapter for activation of the GoTo feature).
In this instance (and assuming that height data is
available from the map dataset), an elevation profile
between your location and the GoTo point will be
shown. Pleasenote: This is assuming a straightline
route to the GoTo point.
Routemode. Without an Active Route, the elevation
profile will display the route completed thus far, since
the TRIPLOG was started.
ProleResolution. The level of detail shown on the
profile graph can be adjusted with horizontal sliders
driven either by the rocker pad or by the ZoomIn /
ZoomOut buttons - on the slider that is "in focus"
indicated by the orange fill. This settings feature is
accessed by pressing the TRAIL UP button twice
when in GPSMAP mode.
4.1 Screen1:GPSMAP(...Cont)
Adjust
Distance

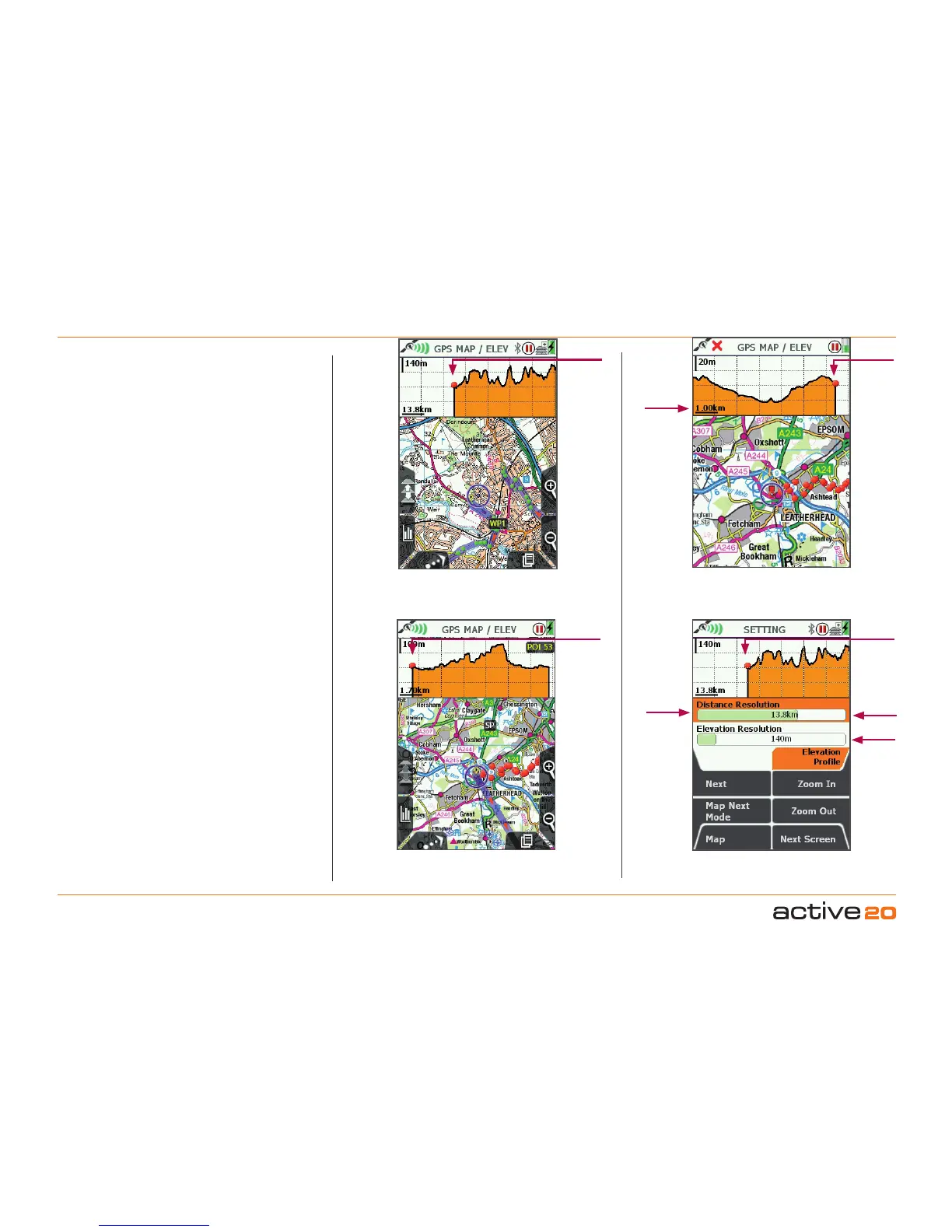

Elevation:"ActiveRoute"mode
Elevation:"GoTo"mode
Elevation:"NoRoute"mode
Settingtheproleresolution
Adjust
Height
You
Are
Here
You
Are
Here
You
Are
Here
You
Are
Here
Orange
Fill=
Setting
Focus
Grid
Scale
