Operating Instructions Chapter 10
CLV 45x Bar Code Scanner
Appendix
8 009 139/K949/06-06-2002
©
SICK AG · Division Auto Ident · Germany · All rights reserved
10-3
10.2.3 Reading ranges of CLV 450 line scanner/line scanner with oscillating mirror

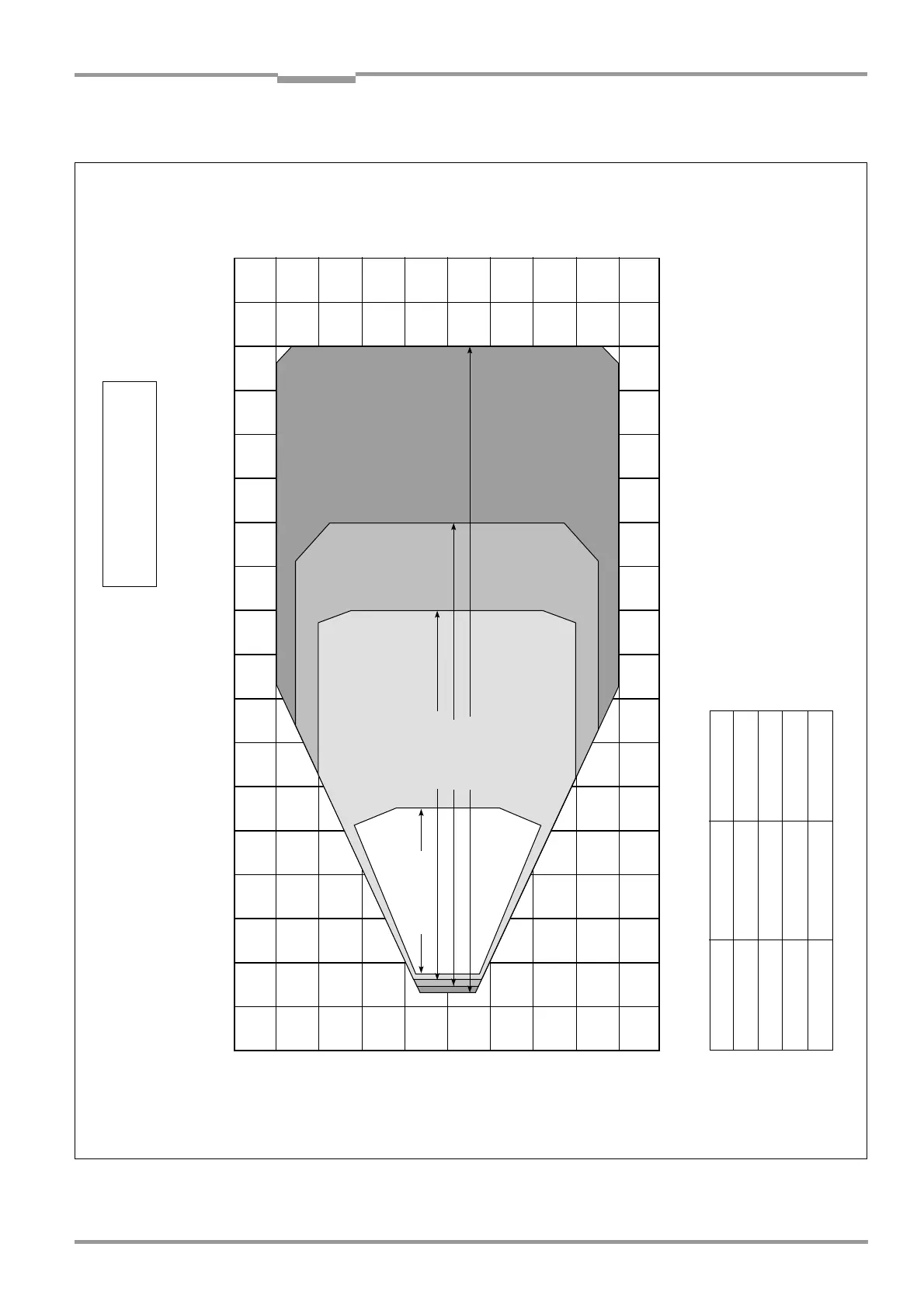

Fig. 10-1: CLV 450-0010: Reading ranges about all focal positions for line scanner
Reading distance [mm]
500 400 300 200 100
0
-200 -100 -300 -400 -500
0
600 800 1000 1200 1400 1600 1800
400
200
0.25 mm
0.35 mm
0.5 mm
1.0 mm
CLV 450-0010 (front-end reading window) Reading field height [mm]
Reading conditions: see Table 10-1, Page 10-2
Characteristics field scanning frequency/ reading distance: see Fig. 10-15, Page 10-17
Resolution
Resolution Focal position Aperture angle 0.25 mm
200 ... 500 mm max. 45
°
0.35 mm
200 ... 880 mm max. 50
°
0.5 mm
200 ... 980 mm max. 50
°
1.0 mm
200 ... 1 200 mm max. 50
°
