10.12 Dimensioned drawings of the accessories
10.12.1 Mounting bracket No. 2 020 410 (for one CLV)
10.12.2 Mounting bracket No. 2 022 564

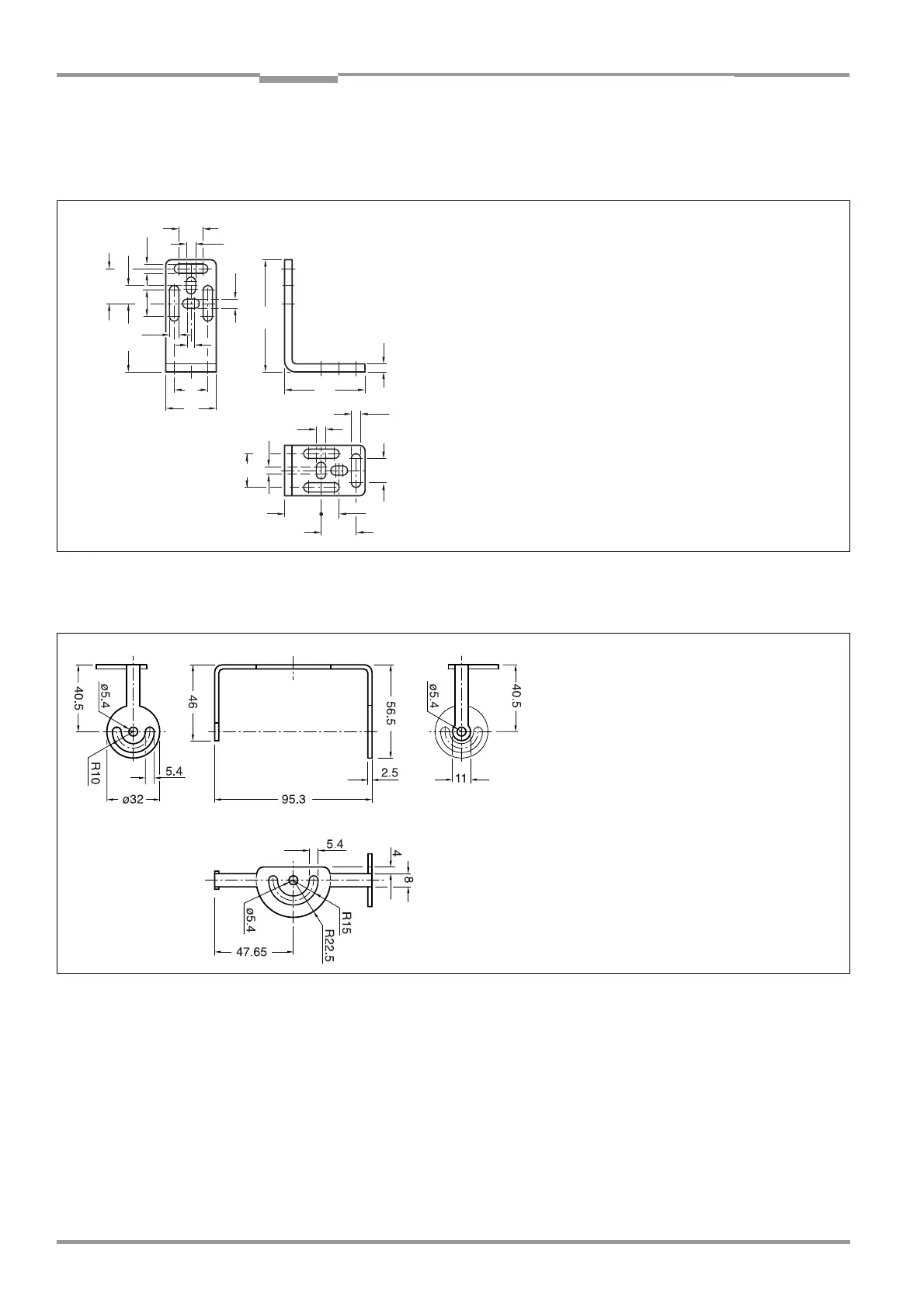

Fig. 10-29: Dimensions of the mounting bracket No. 2 020 410
14
18
18.7
19.5
9.7
18
14
43
27
5.2
3.8
5.2
5.2
5.2
18.7
4
36.5
9.7
5.2
5.2
5.2
14
60
Enclosed to fasten the CLV:
2 pan-head screws M 5 x 8 mm,
Hex-head cap w/s 3 mm, self-locking
Fig. 10-30: Dimensions of the mounting bracket No. 2 022 564
Enclosed to fasten the CLV and the bracket:
– 3 pan-head screws M 5 x 8 mm,
Hex-head cap w/s 3 mm, self-locking
– 3 spring washers A5
– 2 hexagon screws M 5 x 12 mm
– 2 washers A5.3
