SICK CLV 45 Series - Fig. 10-2: CLV 450-6010: Reading Ranges about All Focal Positions for Line Scanner with Oscillating Mirror

Chapter 10 Operating Instructions
CLV 45x Bar Code Scanner
10-4
©
SICK AG · Division Auto Ident · Germany · All rights reserved 8 009 139/K949/06-06-2002
Appendix

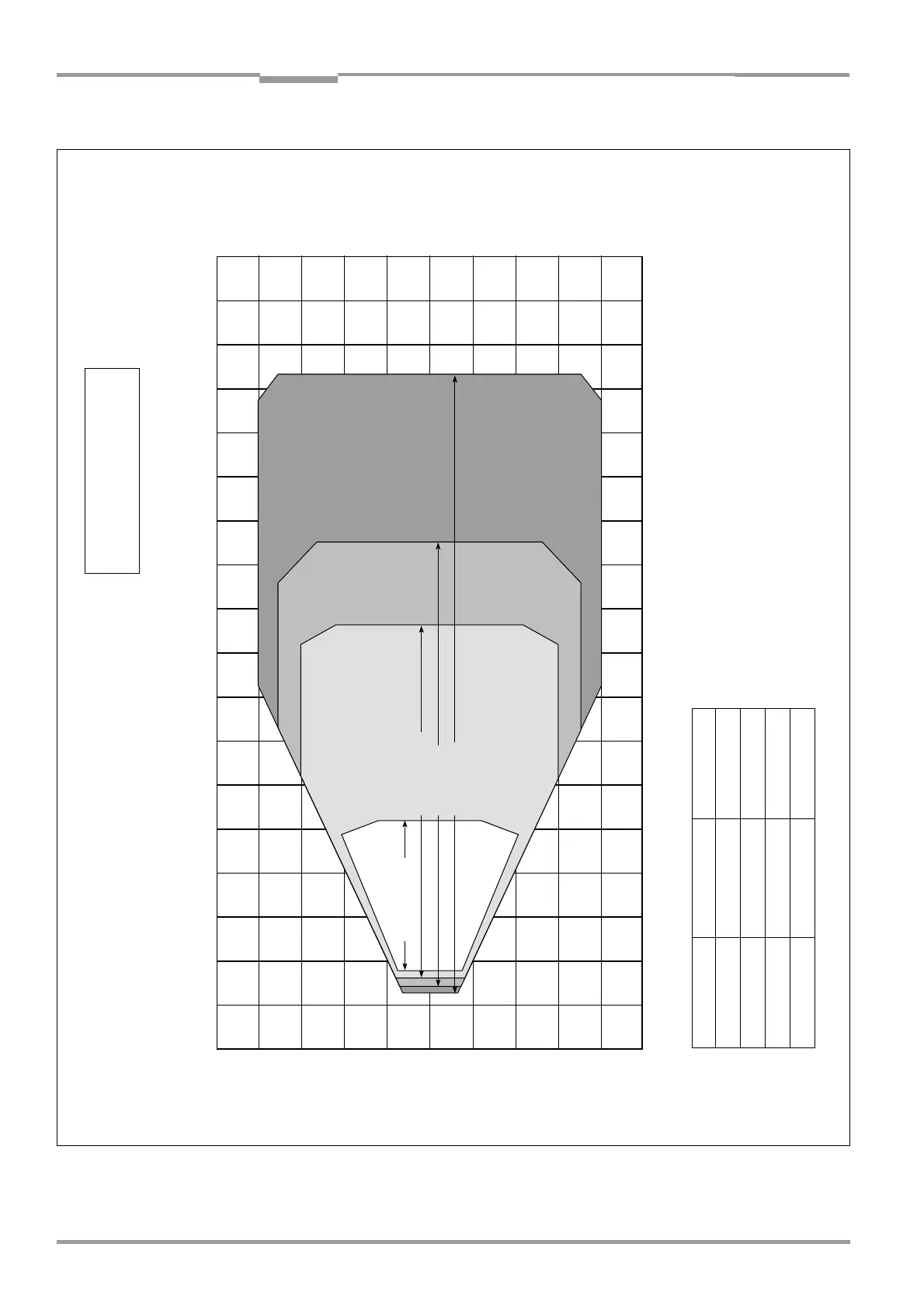

Fig. 10-2: CLV 450-6010: Reading ranges about all focal positions for line scanner with oscillating mirror
Reading distance [mm]
500 400 300 200 100
0
-200 -100 -300 -400 -500
0
600 800 1000 1200 1400 1600 1800
400
200
0.25 mm
0.35 mm
0.5 mm
1.0 mm
CLV 450-6010 (side-end reading window) Reading field height [mm]
Reading conditions: see Table 10-1, Page 10-2
Characteristics field scanning frequency/ reading distance: see Fig. 10-15, Page 10-17 Deflection range: see Fig. 10-16, Page 10-18
Resolution
Resolution Focal position Aperture angle 0.25 mm
200 ... 500 mm max. 45
°
0.35 mm
200 ... 880 mm max. 50
°
0.5 mm
200 ... 980 mm max. 50
°
1.0 mm
200 ... 1 200 mm max. 50
°
