Appendix
10.4.4 CLV-Setup user interface
The CLV-Setup user interface is largely self explanatory. The online help function provides a
description of how to use the program under P
ROGRAM INFORMATION
menu item in the H
ELP
menu. The user interface is shown in
Fig. 10-19
below.
The user interface consists of the following elements:
•
Title bar that displays the program name, current configuration file, and its status, (e. g.
"No File")
•
Menu bar with pull-down menus
•
Toolbar with icons (command buttons) which trigger a function when clicked on
•
List field (top right) for selecting the device type
•
9 tab cards (Reading configuration, Device configuration, etc.). The parameters on the
tab cards are grouped according to their function. Some of these parameters open fur-
ther dialog boxes.
•
Status bar (at the bottom of the window) with two display fields for communication
events between CLV-Setup and CLV, interface parameter display of the PC, error dis-
play field (system errors) of the CLV, device specification field and status display for the
connection to the CLV.

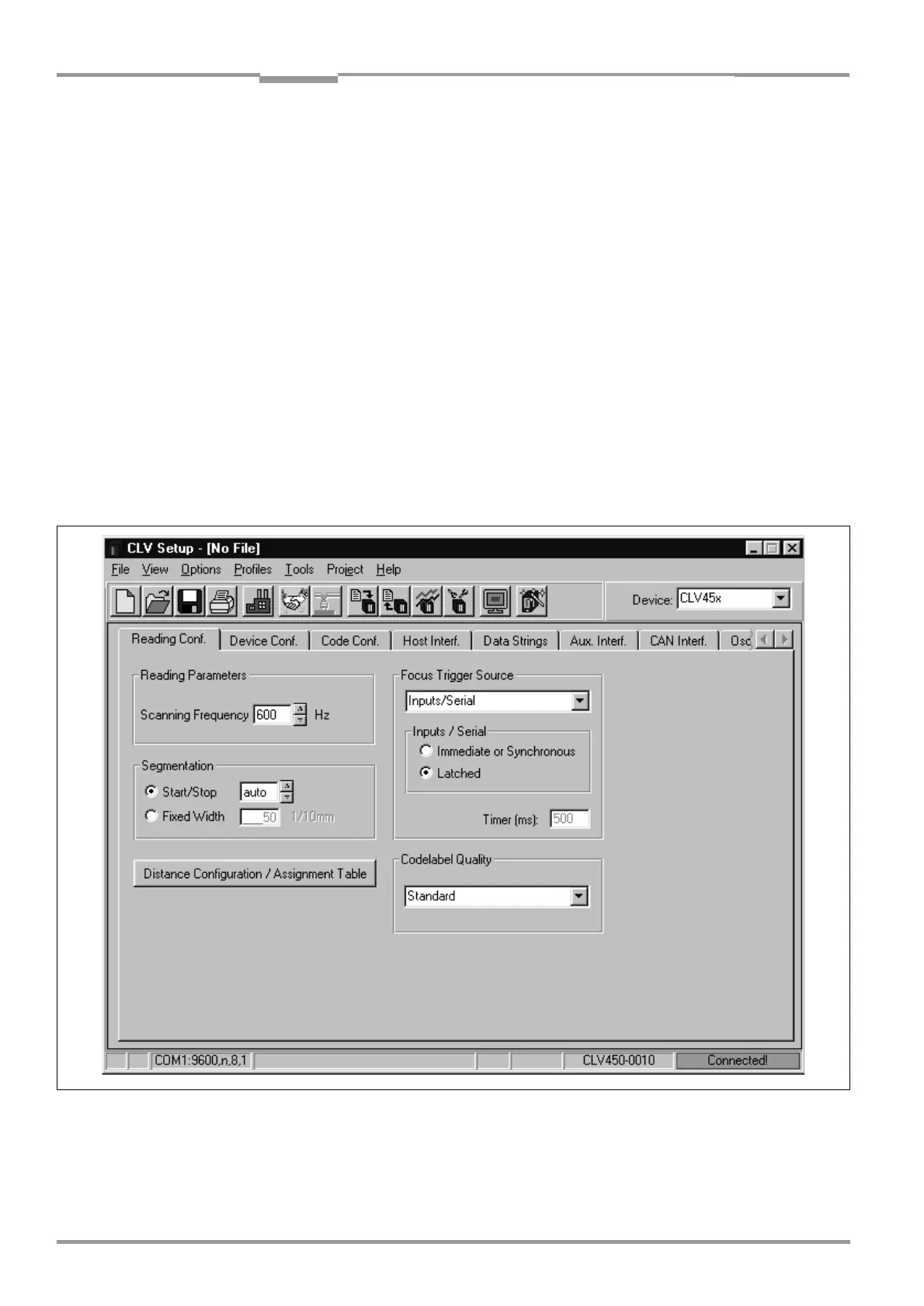

Fig. 10-19: User interface of the "CLV-Setup" software
