Chapter 4 Operating Instructions
CLV 45x Bar Code Scanner
4-2
©
SICK AG · Division Auto Ident · Germany · All rights reserved 8 009 139/K949/06-06-2002
Installation
•
Labels with terminal designations of the CLV 43x/44x for the AMV/S 40 connection
module (also valid for CLV 45x)
•
Tool
•
Measuring tape (up to 2 000 mm)
•
Angulometer
4.2.4 Replacing the laser warning label
If required, stick the warning label in the required language variant over the British/US
warning applied to the CLV (
Fig. 4-1
).
The enclosed set of laser warning labels consists of:
•
A German/US English laser warning label
•
A French/US English laser warning label
Also refer to
Chapter 2.3 General safety instructions and protective measures, Page 2-1
.
4.2.5 Selecting the installation site
When selecting the installation site take the distance between the CLV and the host as well
as the distance between the CLV and the bar code into consideration.
Distance between the CLV and the host
The CLV can be mounted at a max. of 1 200 m from the host without being connected to a
SICK network or to a bus connection. However, the possible distance depends on the
selected physical implementation of the host interface and the set data transfer rate (refer
to
Table 5-2, Page 5-2
).
Distance between the CLV and the AMV/S 40 connection module
The AMV/S 40 connection module should not be installed more than 10 m from the CLV,
since the PC with the "CLV-Setup" software accesses the terminal interface of the CLV via
the module (RS-232 type).

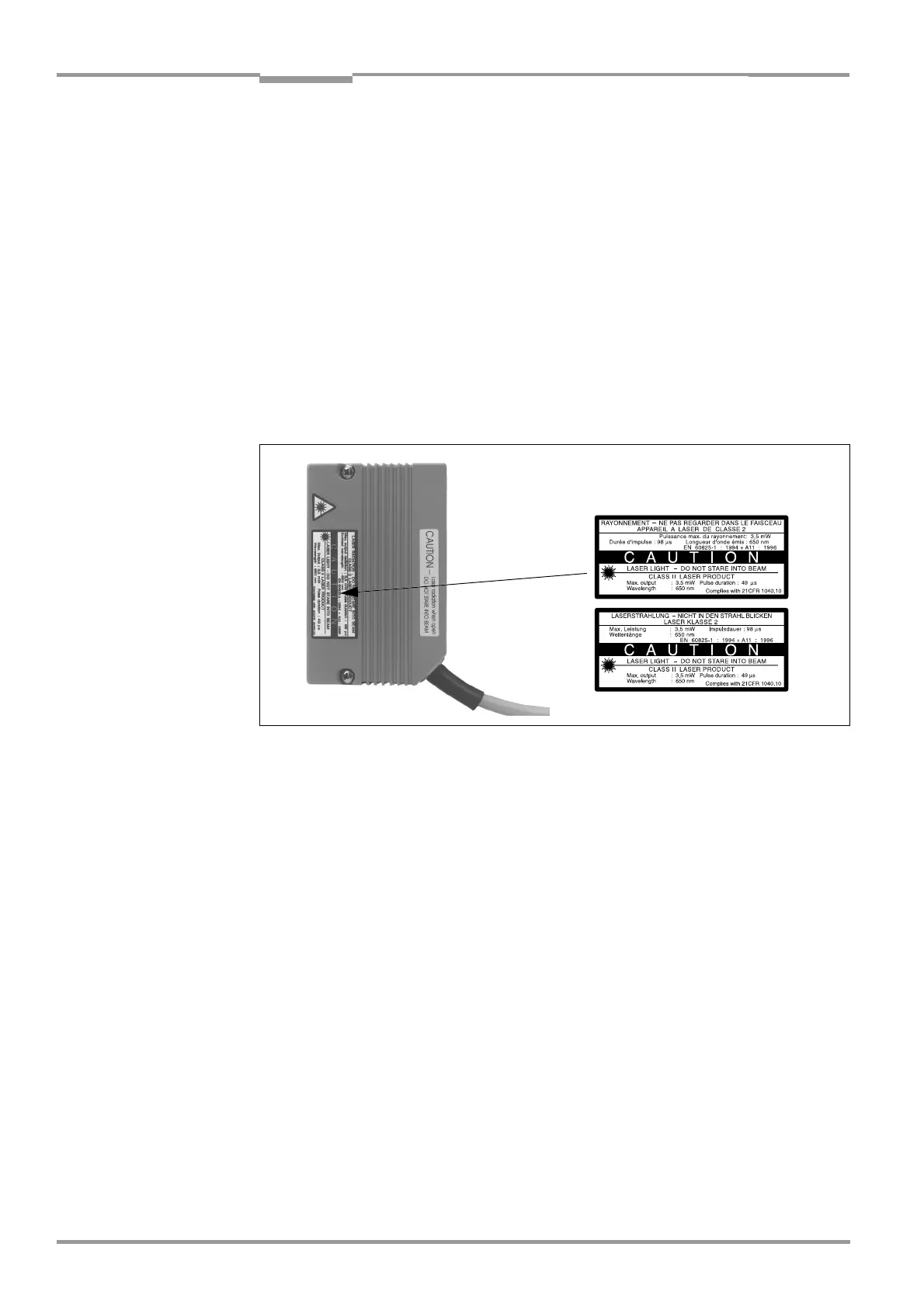

Fig. 4-1: Example of line scanner: Exchanging the laser warning label
Enclosed set of labels:
