10.2.5 Depths of field for CLV 450 line scanner with oscillating mirror
(side-end reading window)

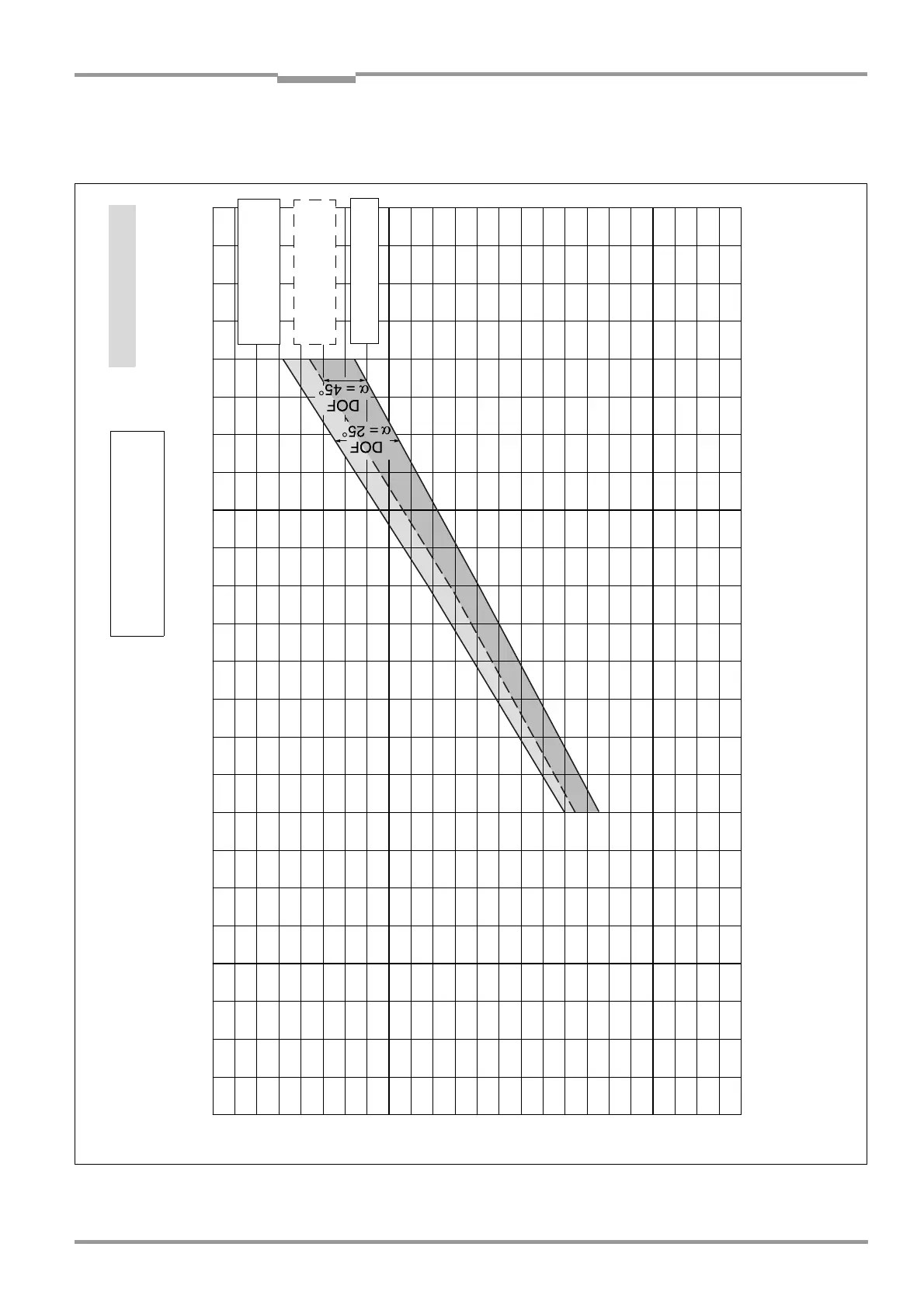

Fig. 10-7: CLV 450-6010: Min. and max. reading distance for the line scanner with oscillating mirror as a function of the focal position
at a resolution of 0.25 mm
Focal position [mm]
0 100 200 300 400 500 600
0
100 200 300 400 500 600
CLV 450-6010 (side-end reading window)
Reading distance [mm]
Depth of field (DOF) = max. reading distance minus min. reading distance
Resolution: 0.25 mm
Reading conditions: see Table 10-1, Page 10-2
Characteristics field scanning frequency/reading distance: see Fig. 10-15, Page 10-17 Deflection range: see Fig. 10-16, Page 10-18
Aperture anlge: 45
°
/25
°
max. Leseabstand Öffnungswinkel 25
max. reading distance aperture angle 25
°
max. Leseabstand Öffnungswinkel 25
min. reading distance
max. reading distance aperture angle 45
°
