Operating Instructions Chapter 5
CLV 45x Bar Code Scanner
Electrical installation
8 009 139/K949/06-06-2002
©
SICK AG · Division Auto Ident · Germany · All rights reserved
5-1
5
Electrical installation
5.1 Overview of the installation step
•
Connect the CLV to the SICK AMV/S 40 connection module
•
Adapt the interconnection of the host interface in the module to the host interface of
the CLV
•
Wire the data and function interfaces of the CLV in the connection module
•
Connect the PC to the connection module (at the terminal interface of the CLV)
•
Connect the connection module to the supply voltage
5.2 Electrical connections and cables
The electrical connection of the CLV consists of a 15-pin D-Sub HD cable plug. The following
interfaces are implemented via it:
•
Three serial data interfaces (host interface, CAN interface and terminal interface)
•
Two switching inputs (external reading-pulse as well as multifunctional input)
•
Two switching outputs (output of result status functions, for connection e. g. to a PLC)
•
Power supply
¾
Wire all the connections with copper wires with a minimum wire cross-section of
0.09 mm
2
!
5.2.1 Connections/Cables when the AMV/S 40 connection module is used
The AMV/S 40 connection module is suitable for industrial-type connection of the CLV to
the I/O devices (distributor function) and the power supply. The direct connection to the
host (point-to-point), the inclusion into the SICK network or into a daisy-chain set-up (pass-
through or master/slave configuration) can be realized with it.

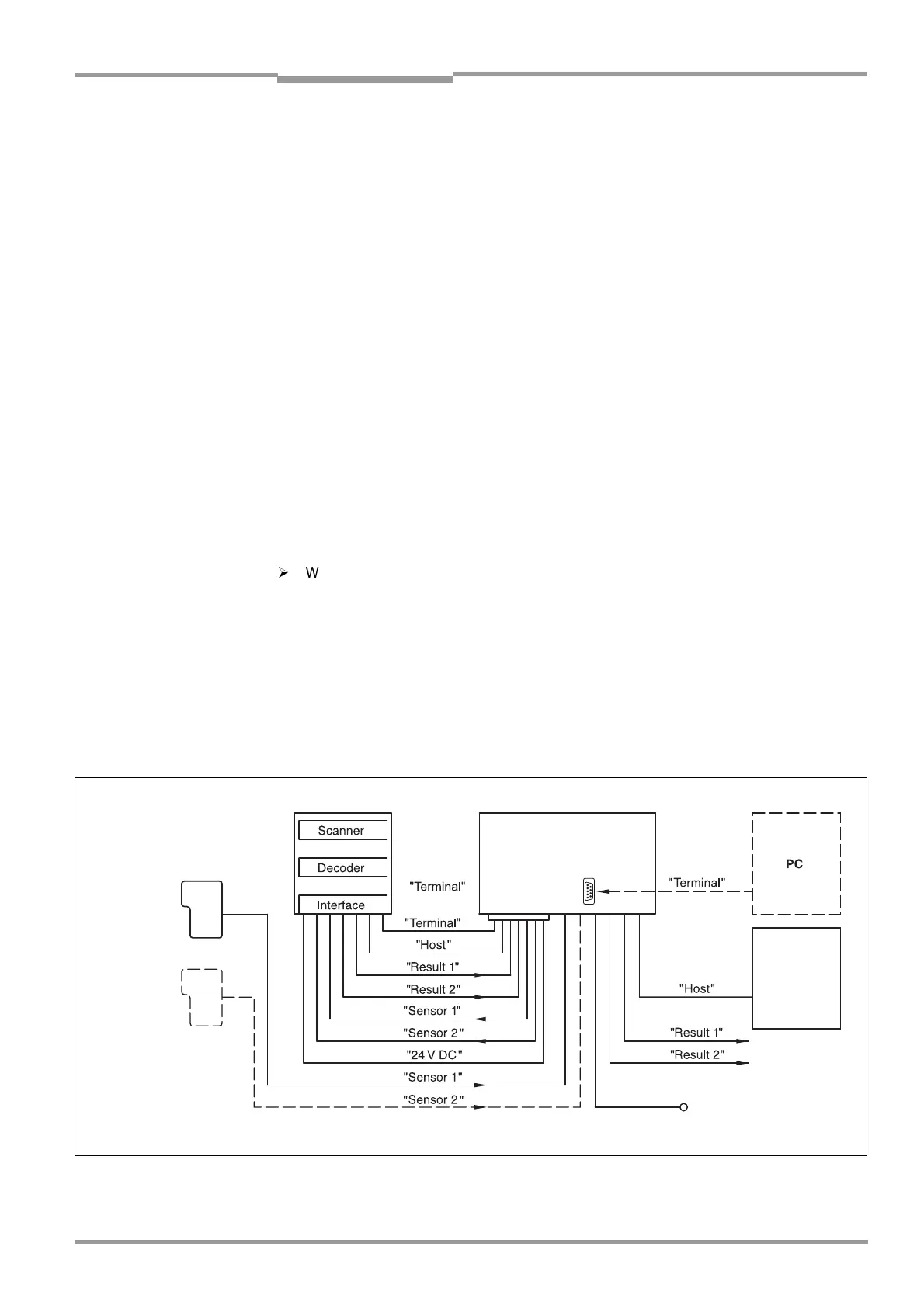

Fig. 5-1
shows the connecting principle of the AMV/S 40 for a CLV.
Fig. 5-1: Block diagram: Connection of the CLV to the AMV/S 40 connection module
PLC
10 ... 30 V DC (AMV 40-011)
230 V AC (AMS 40-013)
115 V AC (AMS 40-012)
Photoelectric
switch
Reading pulse
Photoelectric
switch
Focal position
changeover
Trigger One-Shot
Conveyor increment
Teach-in match code 1
– – Cable if required
CLV 45x
HOST/PLC
AMV/AMS 40
connection module
