SICK CLV 45 Series User Manual

Operating Instructions Chapter 10
CLV 45x Bar Code Scanner
Appendix
8 009 139/K949/06-06-2002
©
SICK AG · Division Auto Ident · Germany · All rights reserved
10-5
10.2.4 Depths of field for CLV 450 line scanner (front-end reading window)

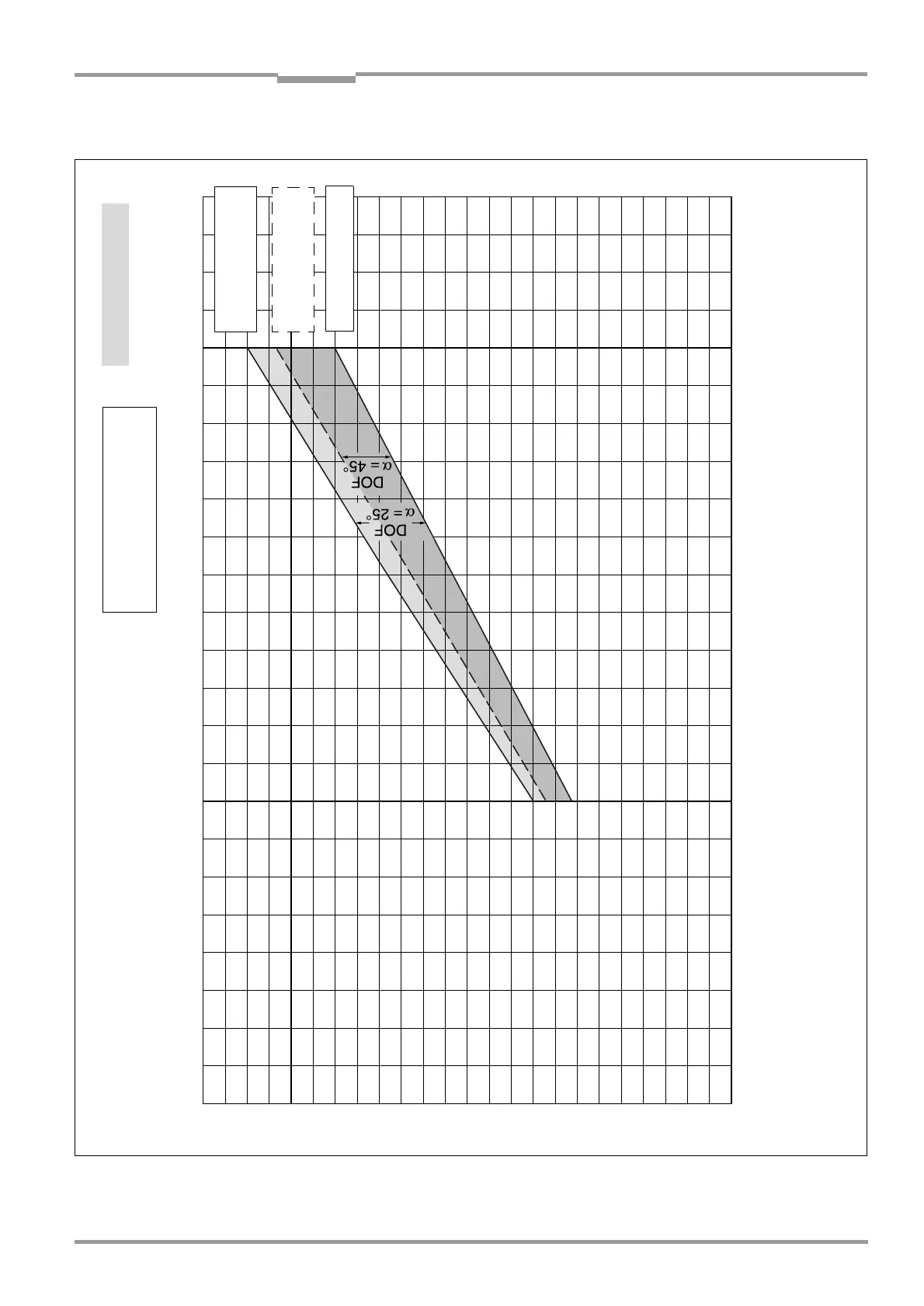

Fig. 10-3: CLV 450-0010: Min. and max. reading distance for the line scanner as a function of the focal position at a resolution of
0.25 mm
0 100 200 300 400 500 600
0
100 200 300 400 500 600
Focal position [mm]
CLV 450-0010 (front-end reading window)
Reading distance [mm]
Characteristics field scanning frequency/reading distance: see Fig. 10-15, Page 10-17
Depth of field (DOF) = max. reading distance minus min. reading distance
Resolution: 0.25 mm
max. Leseabstand Öffnungswinkel 25
max. reading distance aperture angle 25
°
Reading conditions: see Table 10-1, Page 10-2
Aperture anlge: 45
°
/25
°
max. Leseabstand Öffnungswinkel 25
min. reading distance
max. reading distance aperture angle 45
°
