Electrical installation
1. Observe the modified terminal assignment for the CLV in the connection area of the
AMV/S 40 (refer to
Chapter 4.4.1 Installing the AMV/S 40 connection module,
Page 4-11
).
2. The wiring and configuration of the AMV/S 40 connection module is described in the
Operating instructions "AMV/S 40 connection module ”
(Order No. 8 008 292, English
edition).
5.3 Pin assignment of the connecting plug
5.4 Preparation of the electrical installation
5.4.1 Requirements for the host interface
The host interface of the CLV can be operated as an RS-422/485 unit or as an RS-232 unit.
Table 5-2
shows the recommended maximum cable lengths as a function of the data trans-
mission rate.
Pin Signal Function
1 +10 ... +30 V DC Supply voltage
2 RxD (terminal) Terminal interface (receiver)
3 TxD (terminal) Terminal interface (sender)
4 Sensor 2 Switching input, selectable function
5 GND Ground (chassis ground)
6 RD+ (RS-422/485) Host interface (receiver)
7 RD- (RS-422/485); RxD (RS-232) Host interface (receiver)
8 TD+ (RS-422/485) Host interface (sender)
9 TD- (RS-422/485); TxD (RS-232) Host interface (sender)
10 CAN H CAN bus (IN/OUT)
11 CAN L CAN bus (IN/OUT)
12 Result 1 Switching output, selectable function
13 Result 2 Switching output, selectable function
14 Sensor 1 Switching input for external reading pulse
15 SensGND Common ground for all inputs
– – Shield

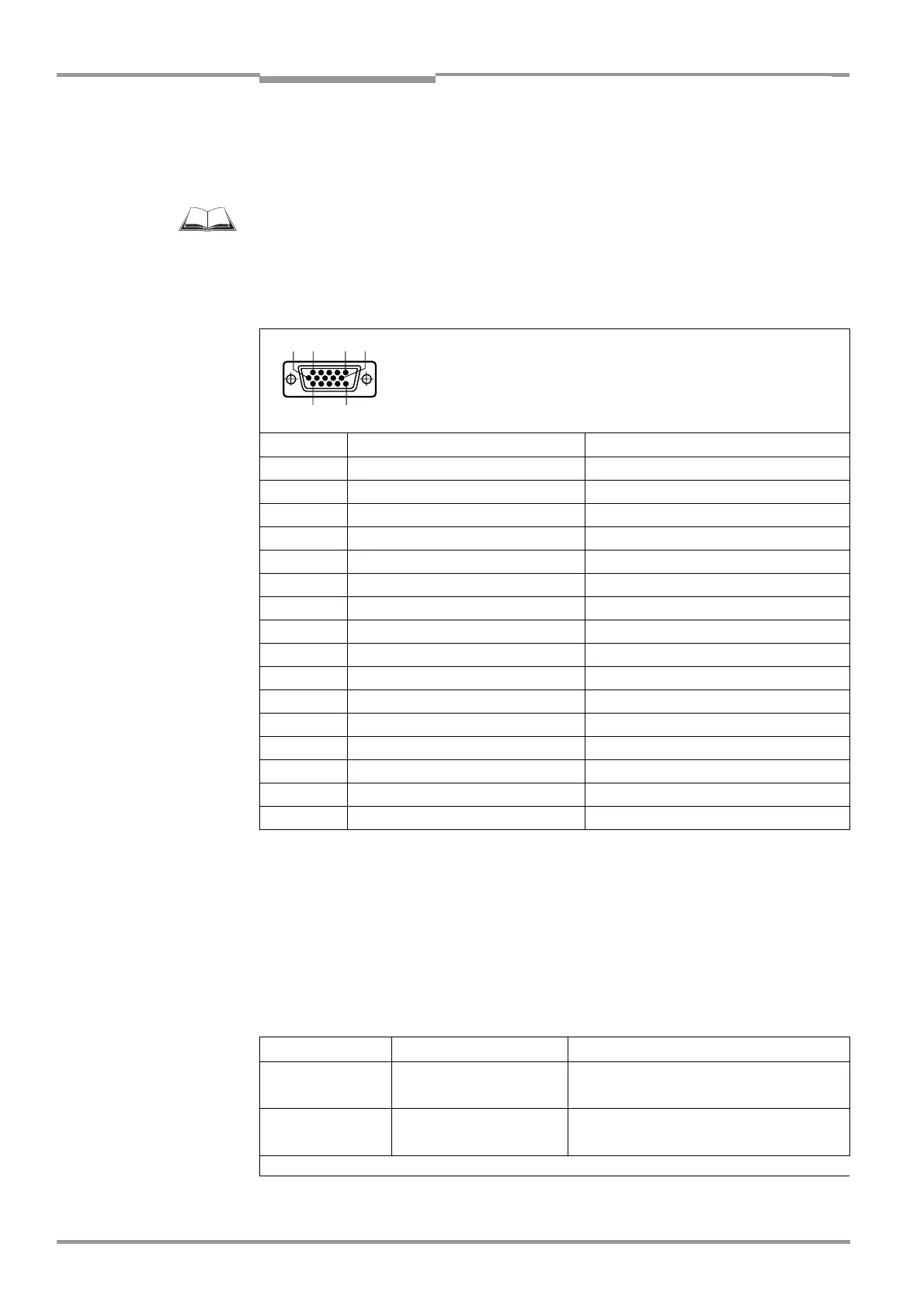

Table 5-1: Pin assignment of the 15-pin D-Sub HD cable plug
Interface type Transmission rate Distance to the host
RS-232 Up to 19 200 bits/s Max. 10 m
38 400 ... 57 600 bits/s Max. 3 m
RS-422/485
1)
Max. 38 400 bits/s Max. 1 200 m
Max. 57 600 bits/s Max. 500 m
1) If the cable is terminated correspondingly
Table 5-2: Maximum cables lengths between the CLV and the host
