Operating Instructions Chapter 3
CLV 45x Bar Code Scanner
Product description
8 009 139/K949/06-06-2002
©
SICK AG · Division Auto Ident · Germany · All rights reserved
3-7
For the case of reading without a transport movement of the object
Fig. 3-5
shows an ex-
ample of the triggering of the focal position changeover by means of the internal timer or of
the oscillation mirror inversion points ("search run") at 6 distance configurations.
3.3 Display and operating elements
3.3.1 Operating elements
The CLV is operated and configured via the terminal interface by means of the user interface
of the "CLV-Setup" PC software or via the host interface/terminal interface by means of
command strings. Manifold parameterization options allow the adaptation to highly different
applications.
The following can also be set
•
Configuration of the code types to be read
•
Reading, evaluation and output properties
•
Communication parameters of the host interface
•
Structure of the data output string of the host interface for “Good Read“ and “No Read“
•
Function of the terminal interface
Chapter 10.4 Installing and operating the "CLV-Setup" PC software, Page 10-20
describes
the installation of the "CLV-Setup" PC software and the use of the user interface. The con-
figuration (parameterization) is explained in
Chapter 6.4 Configuration (parameterizing),
Page 6-4
.
3.3.2 Function of the LEDs
Four LEDs signal the operating state, the activity of the laser diode, the status of the read
result and the data transfer to the host interface. The LEDs (
Fig. 3-6, Page 3-8
) are posi-
tioned on the rear narrow side of the device.
Table 3-2
lists the meaning of the LEDs in the
various operating modes/functions.

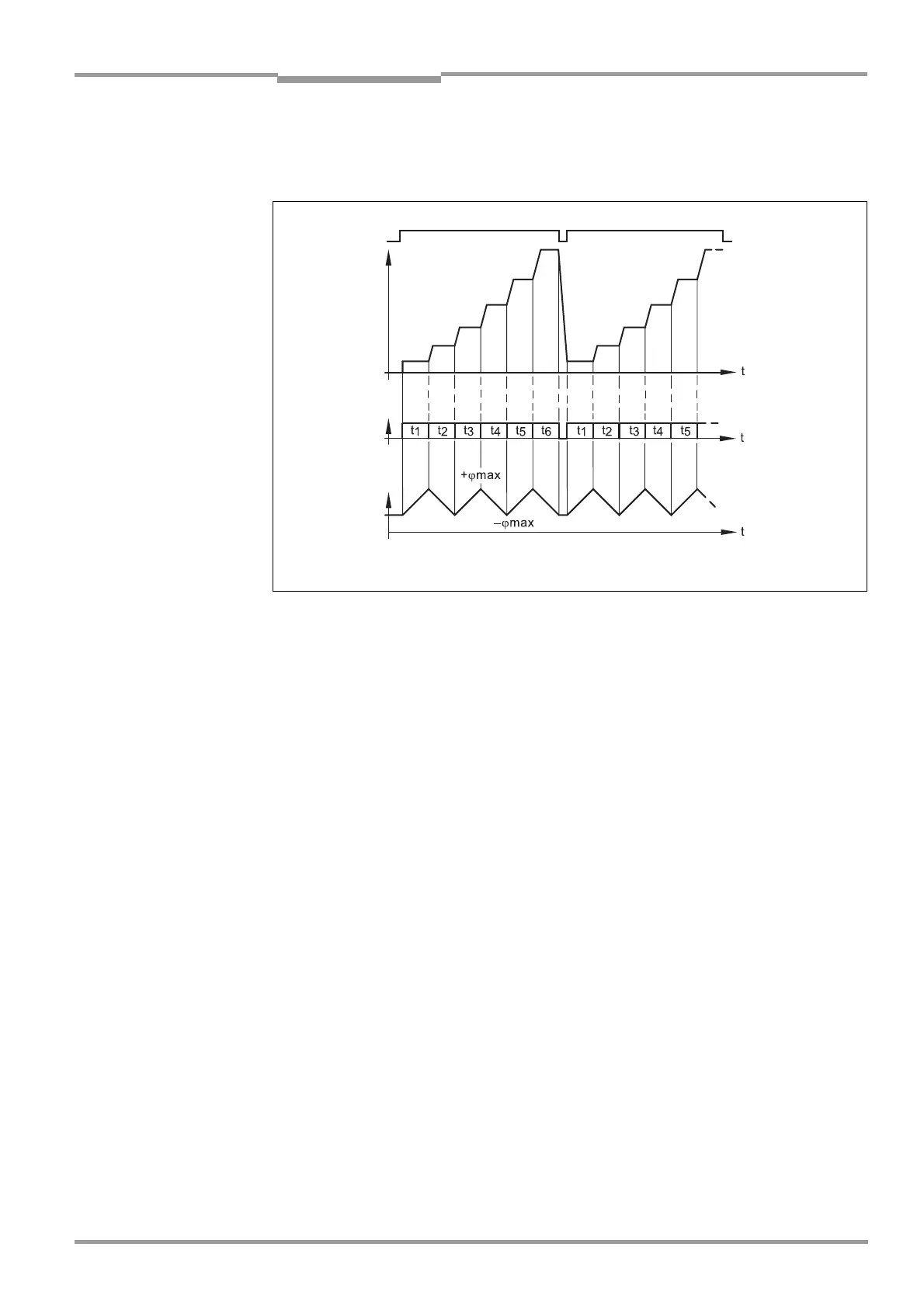

Fig. 3-5: Oscillating mirror: Example of the focal position changeover in the search run
Deflection
angle
Oscillating mirror
inversion points
Reading pulse
Focal
position
Timer
or
