Troubleshooting
FLOWSIC600 · Technical Information · 8010125 V 4.0 · © SICK AG 199
Subject to change without notice
7.4 Meter connection troubleshooting
Meter not found at initial connection/connection lost during session
Check all cables and the hardware. Check also the correct installation of the adapters
(see
pg. 123, 5.2.1 and
pg. 124, 5.2.2).
Attempt to re-establish connection via "Connect to Meter" window.
Use the options in the window displayed to make MEPAFLOW600 CBM search with
wider options (
Figure 96), especially if parameters (e.g. the baud rate) may have been
changed.

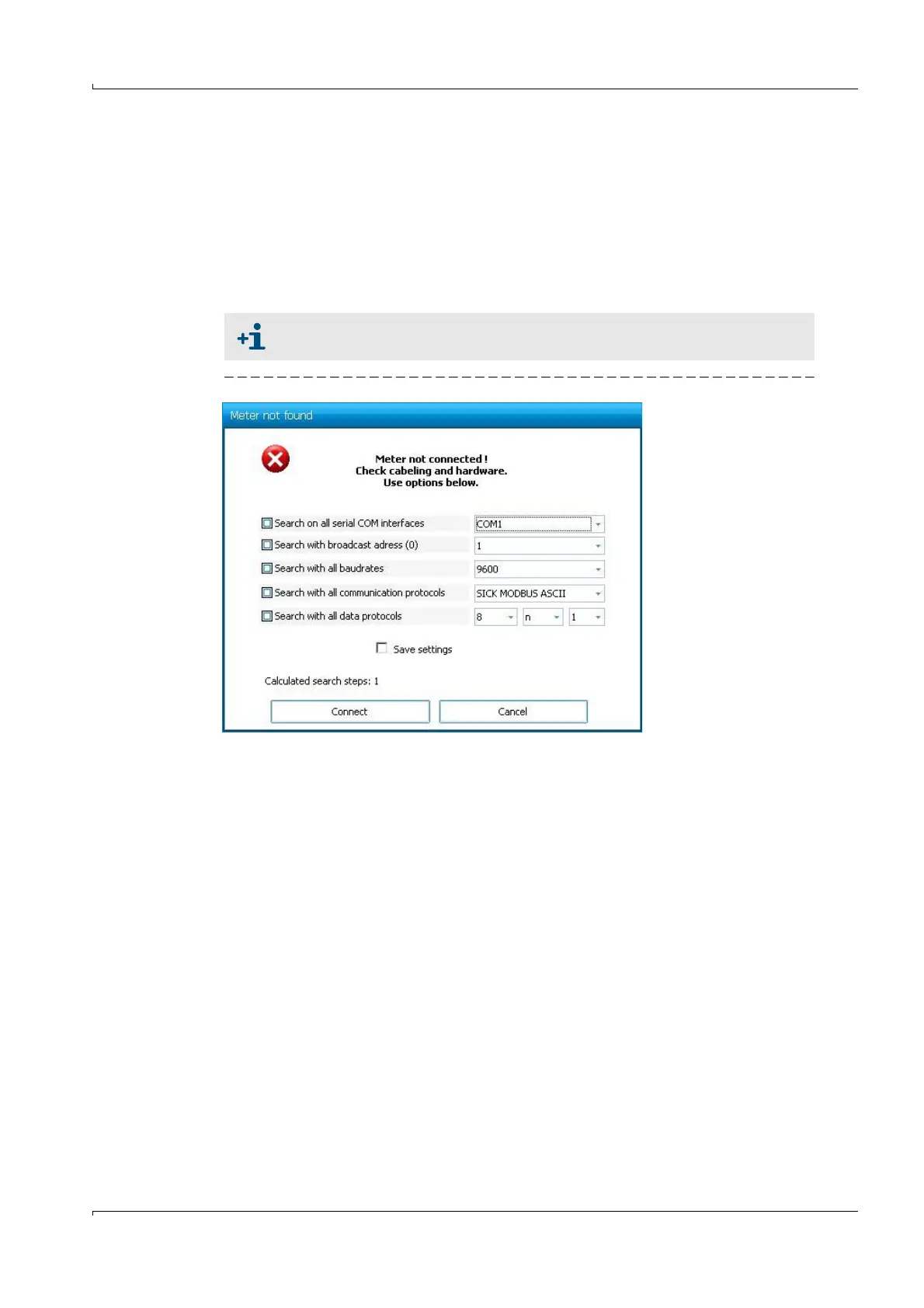

Figure 96 "Meter not found" dialog for the specification of wider search options.
If necessary, the RS485 ports can be assigned to a specific bus address (Reg.
#5020 "DeviceBusaddress"). The service port always has the bus address "1".
