3.3 Preparation
3.3.1 Identification and visual check
The FLOWSIC600 is delivered in a pre-assembled condition in a sturdy package. When
unpacking the device, check for possible damage in transit. Pay particular attention to the
interior of the meter body, any visible transducer components and the sealing surfaces on
the flanges. Any damage must be documented and reported to the manufacturer
immediately.
For identification use the information on the main type plate (
Figure 22, example see
pg. 256, Figure 120). Cross-check the meter‘s serial number and the other information on
the main plate with the data in the Manufacturer Data Record (MDR).
Information on nominal size (DN/NPS), design temperature (TS), design pressure (PS) and
test pressure (PT) can be found on the type plate on the meter body (
Figure 22, example
see
pg. 256, Figure 121).

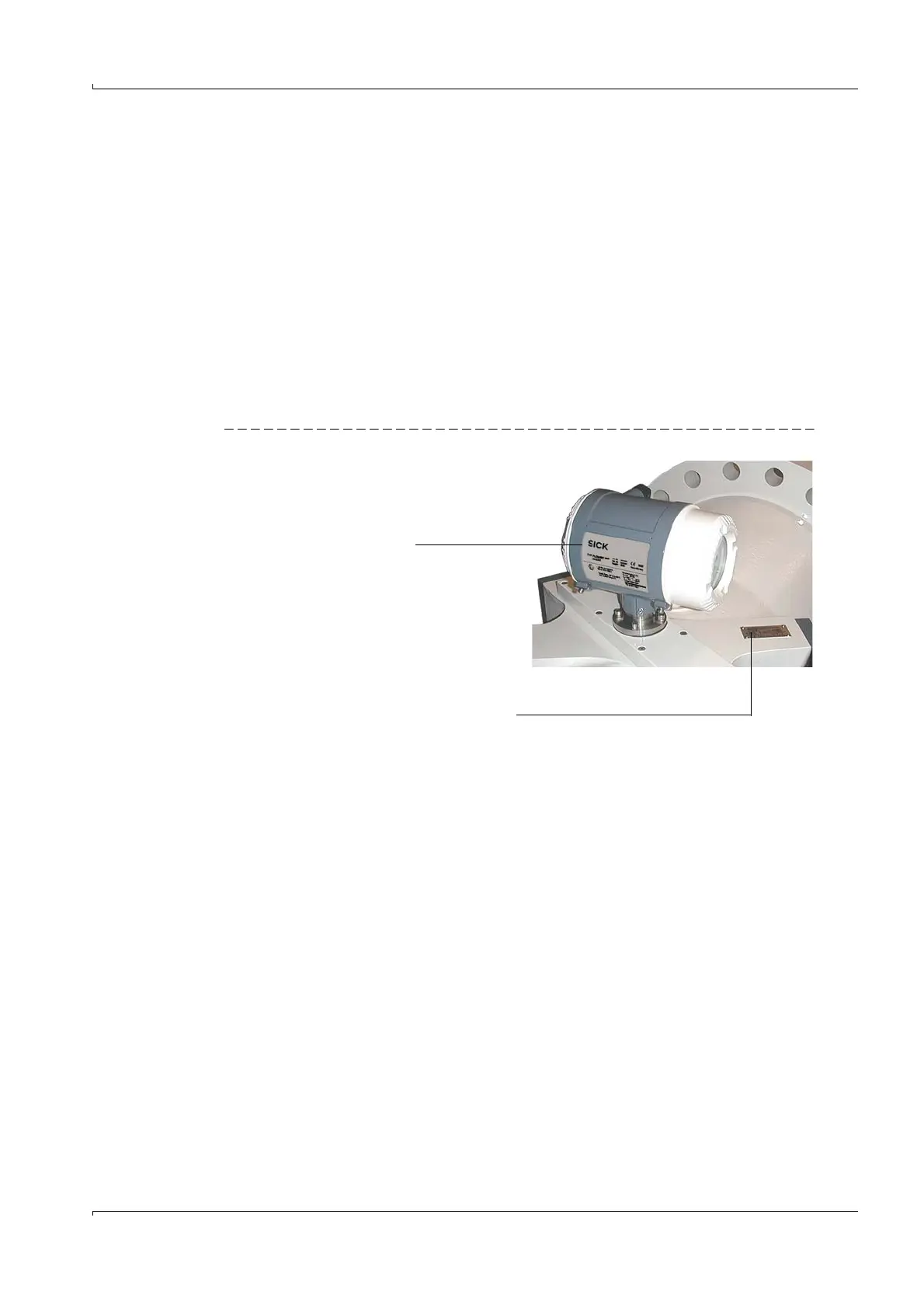

Figure 22 FLOWSIC600 type plates
Type plate on the meter body
Main type plate on
Signal processing unit
