3.3.2 Mechanical installation on the flow test stand

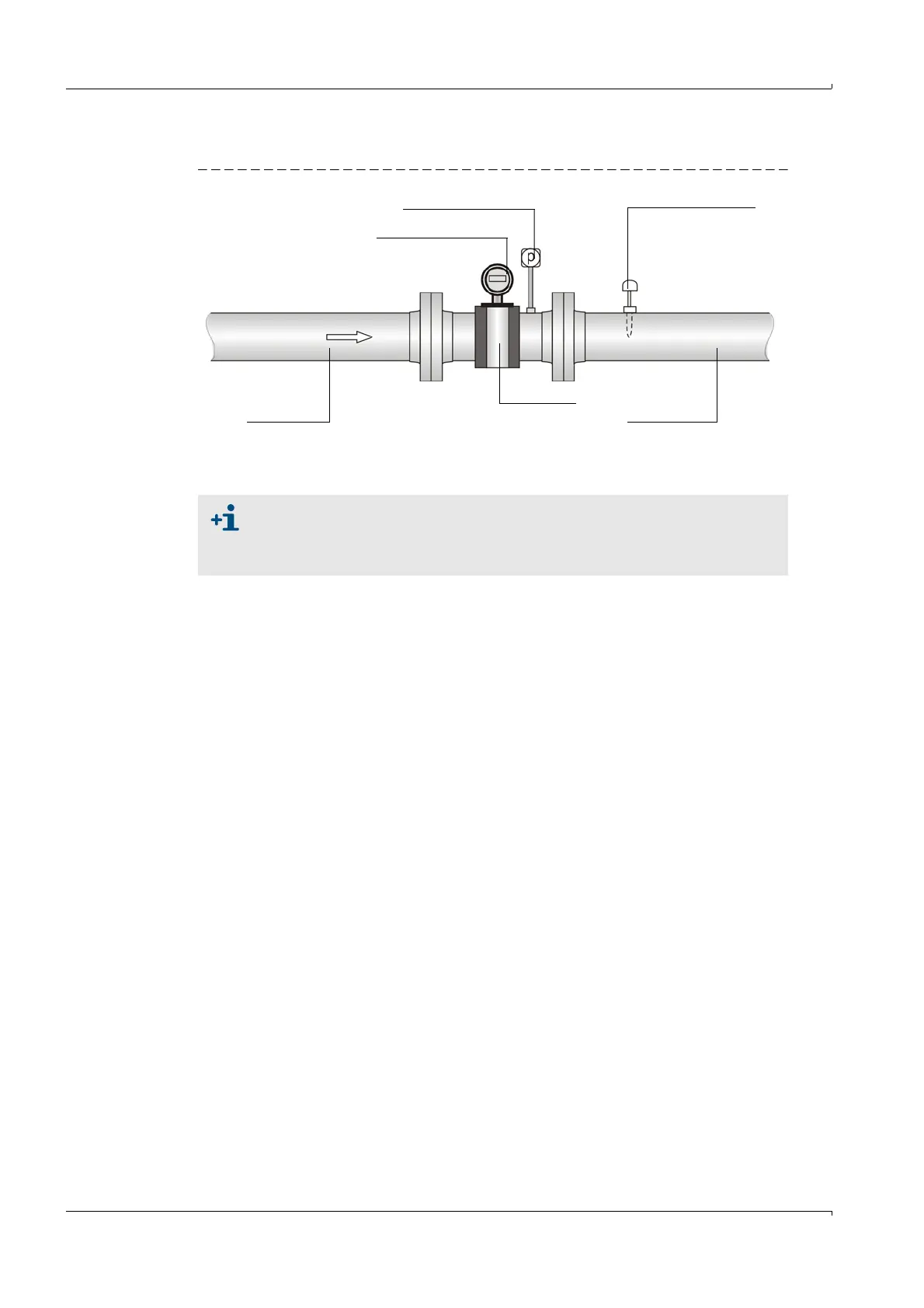

Figure 23 Installation of the FLOWSIC600 in the test pipeline
Detailed information about the installation in the pipeline and about necessary inlet and
outlet pipes see
 pg. 98, 4.2 and  pg. 101, 4.3.
Inlet pipe Outlet pipe
Pressure transmitter Temperature transmitter
Signal processing unit
FLOWSIC600
The FLOWSIC600 can be calibrated without the inlet/outlet section used at the
customer site. A PTB flow conditioner, which may be used at the customer site,
has no influence on the measuring accuracy and the calibration result.
Therefore it is not necessary, to use a flow conditioner during the calibration.
