3.3.3 Electrical connection
After having removed the rear cover, the FLOWSIC600 must be connected electrically as
shown in the Figure below. The default configuration is indicated in the terminal
assignment plan inside the rear cover of the housing

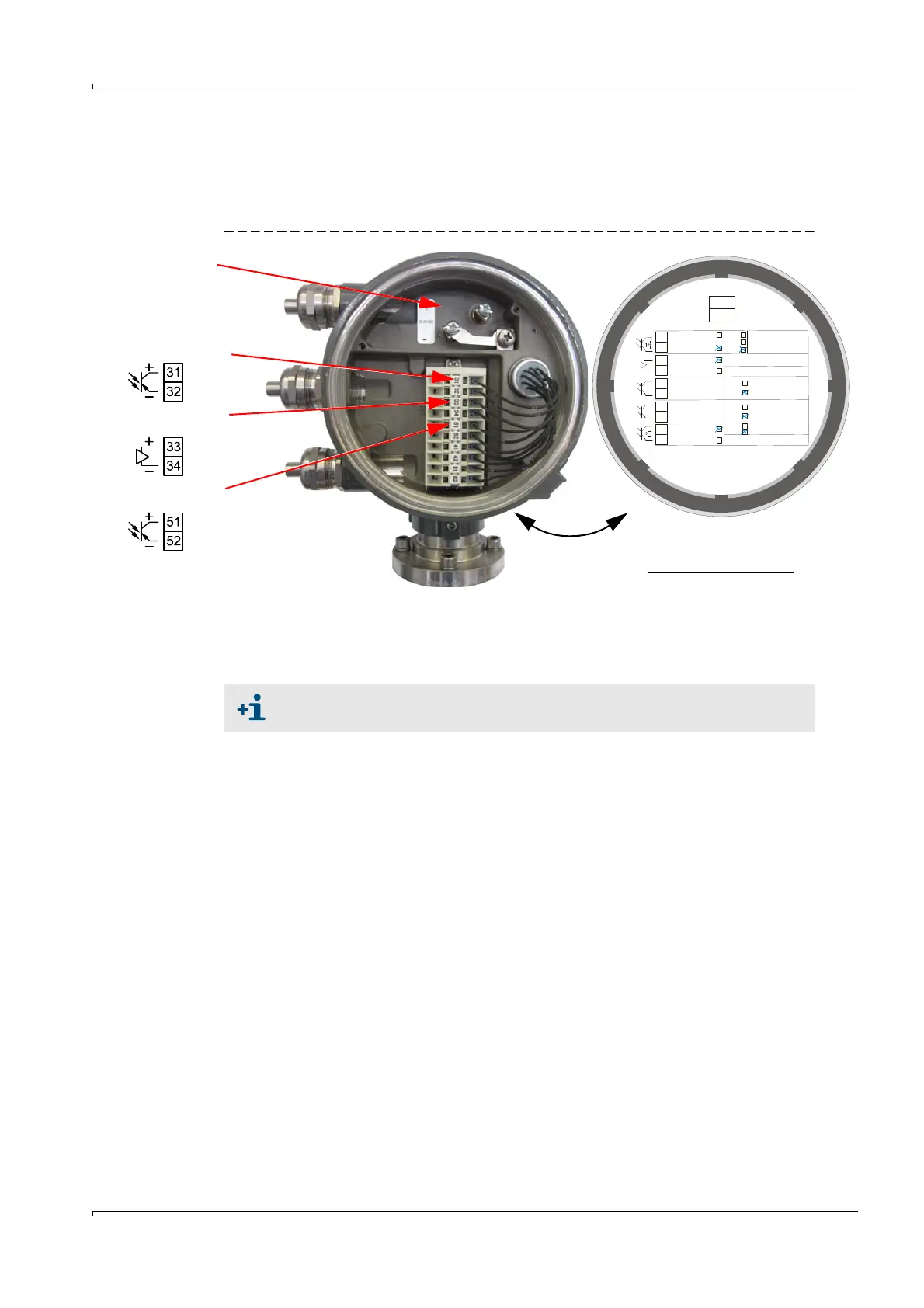

Figure 24 Electrical connections in the signal processing unit
3.3.4 Connection to the FLOWSIC600 with MEPAFLOW600 CBM software
Connect to the FLOWSIC600 with a PC or laptop and MEPAFLOW600 CBM software
(
 pg. 125, 5.3).
12.0 ... 28.8 V DC
Caution
Negative is connected with the
housing of the signal processing
unit.
Pulse output DO 0
RS485 interface
Pulse output DO 1
+
_
For further details see user manual
and EC Typ-Examination Certificate
TÜV 01 ATEX 1766 X
1(+)
2 (-)
power supply
alimentation
U = 12..24V DC
B
Entity Parameters
Vmax = 16V, Imax = 200mA
Ci = 4nF, Li = 0,075mH
31
51
33
41
81
32
52
34
42
82
4 ...20 mA
RS 485
RS 485
PROFIBUS PA
digital out 0 (Hf2)
sortie digital 0
F = 6 kHz
max
Uo = 22,1V Ui = 30V
Io = 155mA Ii = 100mA
Po = 857mW Pi = 750mW
Co = 4100nF
Lo = 7mH RL<250R
Usat < 2V 2mA < IL <
20mA
Ui = 30V Ii = 100mA
Pi = 750mW
Usat < 2V 2mA < IL <
20mA
Ui = 30V Ii = 100mA
Pi = 750mW
Usat < 2V 2mA < IL < 20mA
Ui = 30V Ii = 100mA
Pi = 750mW
Uo=5,88V Io=313mA Po=460mW Co=1000
Ui=10V Ii=275mA Pi=1420mW Lo=1,5mH
Vo=30V Io=100mA Pi=750mW
µF
Uo=5,88V Io=313mA Po=460mW Co=1000
Ui=10V Ii=275mA Pi=1420mW Lo=1,5mH
µF
active
passive
HART/
NAMUR
passive
NAMUR
passive
NAMUR
passive
NAMUR
digital out 1 (Hf1)
sortie digital 1
F = 6 kHz
max
digital output 2
sortie digital 2
digital output 3
sortie digital 3
-
+
-
+
-
+
+
-
-
+
+
+
-
-
EEx e Um=253V EEx ib [ia] IIA
Rear cover of the housing
with terminal plan
User access level: "Service"
Password: see Service Manual
