9.9 Sealing plan

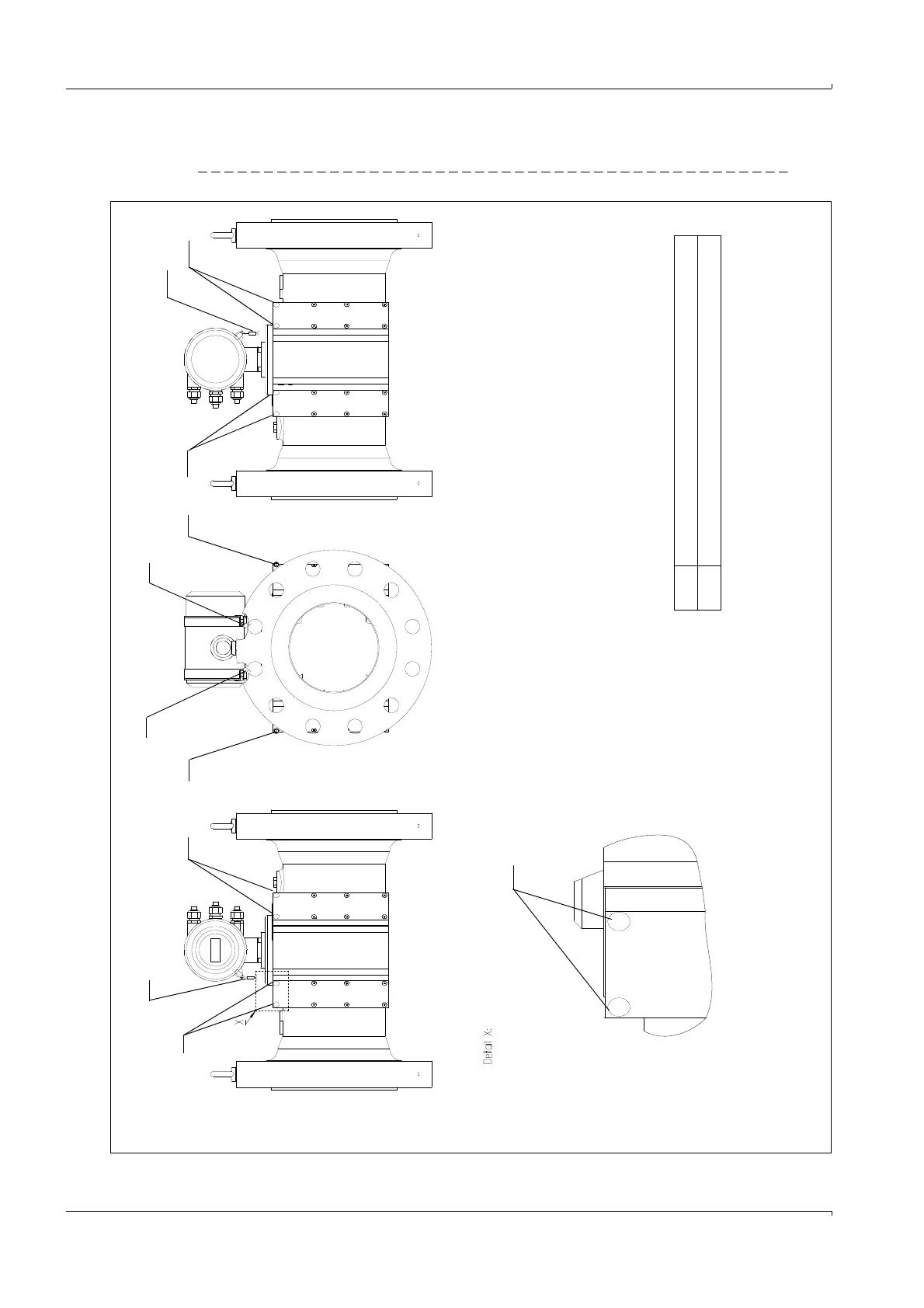

Figure 116 Sealing plan, part 1 (cast version)
1
1
2
2
1
2*
Side view, rear
Side view, front
Front view
2
1
2
2
2
* minimum of two seals per capping
1 Placement of seals, SPU cover - front and rear 2 Placement of seals, capping - front and rear
