2.5 Output configurations
2.5.1 Hardware variants and signal outputs (I/O configuration)
The outputs of the FLOWSIC600 can be configured in several ways. Different output config-
urations require different hardware variants of the electronic unit (
pg. 33, Table 3 and
Table 4).

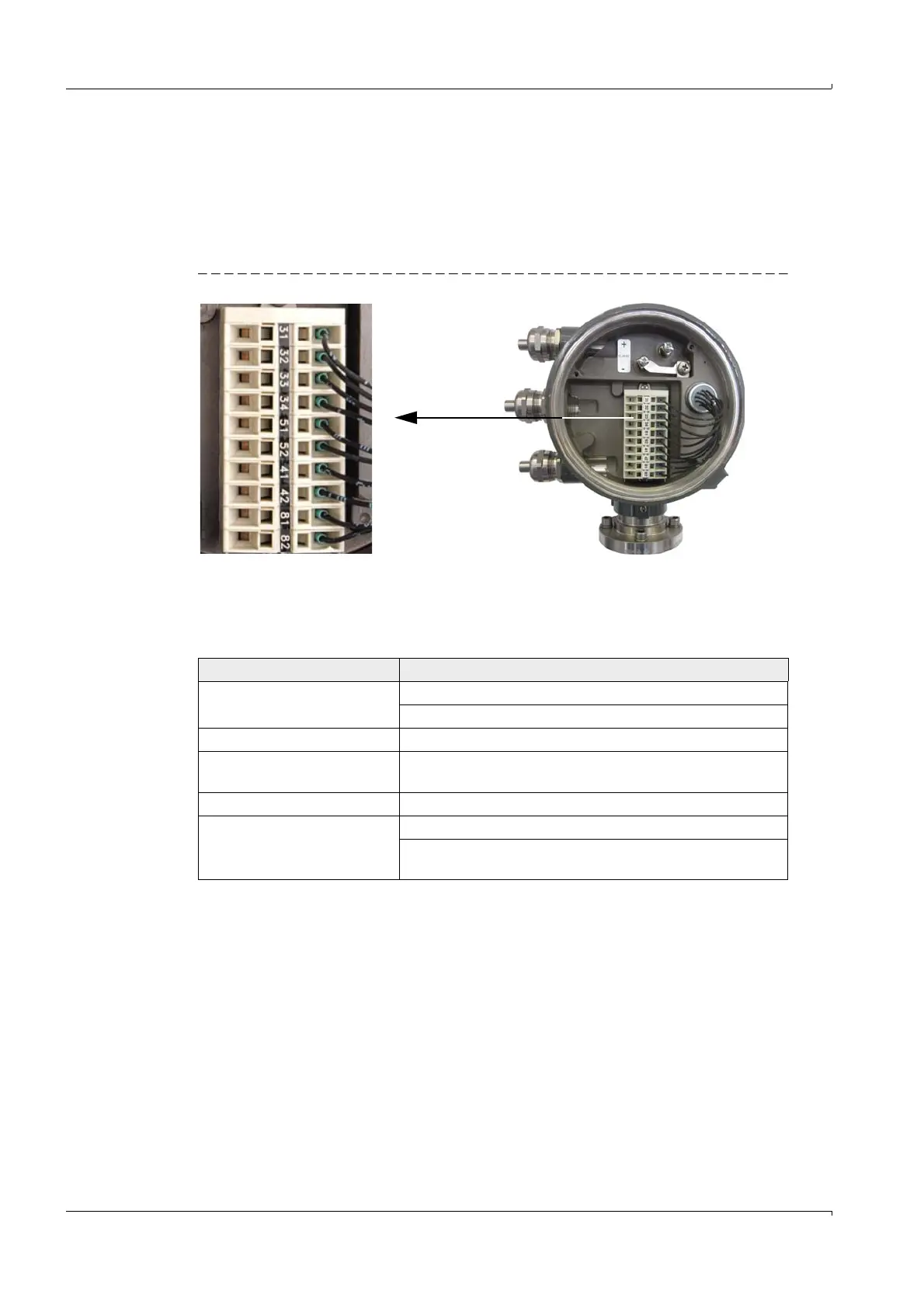

Figure 9 Terminals in the FLOWSIC600 signal processing unit (rear cover opened)
The following settings can be assigned to the four available physical outputs (the pure
RS485 MODBUS communication port 33/34 is not considered to be an output). The
settings can be configured on the "Parameters" page and in the "Field setup" wizard of the
MEPAFLOW600 CBM software.
Digital output Possible Settings
Output DO0 (31/32)
Pulse, warning, data invalid, flow direction, check request
AO output 4 .. 20mA or 4 .. 20mA with serial HART
1
1
For more detail on HART
, see document "HARTbus specification".
Communication (33/34) Communication port RS485 MODBUS
2
(fixed)
2
For more detail on RS485, see document "Short Manual MODBUS".
Output DO1 (51/52)
Pulse, warning, data invalid, warning, flow direction, check
request
Output DO2 (41/42) Warning, data invalid, flow direction, check request
Output DO3 (81/82)
Communication port RS485 MODBUS
2
Warning, data invalid, flow direction, check request,
ENCODER (NAMUR)
3
3
For more detail on the encoder option, see document "Technical Bulletin ENCODER
output".
