SICK FLOWSIC600 Technical Information

88 FLOWSIC600 · Technical Information · 8010125 V 4.0 · © SICK AG
Flow Calibration
Subject to change without notice
3.4 Adjustment of the FLOWSIC600
The calibration facility runs flow tests and determines the deviations and uncertainties of
the meter under test at least at 6 flow rates against the reference meter.
3.4.1 Determining adjust factors with the "Meter calibration" wizard
 Connect to the FLOWSIC600 with MEPAFLOW600 CBM (  pg. 125, 5.3)
 Check performance, pressure, temperature and meter factor (  pg. 75, 3.3ff)
 Open the "Meter calibration" wizard (select Tools / Meter calibration) (  Figure 37)
 Switch the FLOWSIC600 to Configuration Mode
 Follow the instructions on screen and fill in all necessary fields.
 Click "Next".

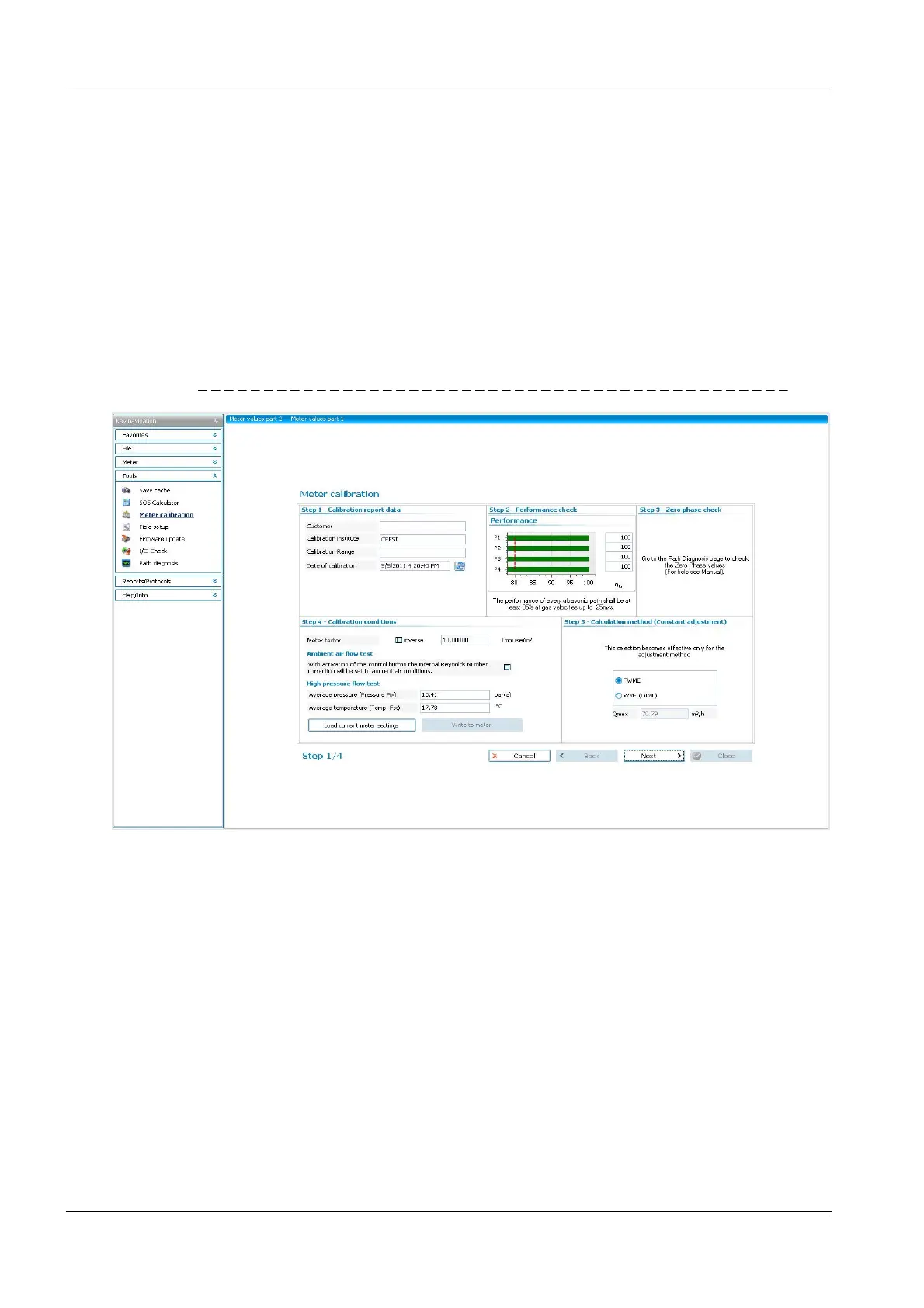

Figure 37 "Meter calibration" wizard, step 1
